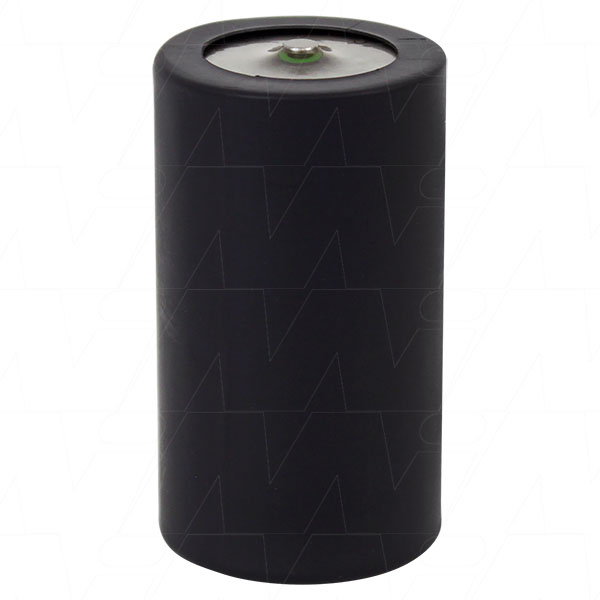

Description Fanso ER34615S-150 D size 3.6V 12000mAh Lithium Thionyl Chloride Battery - High Temperature Type -20ºC ~ +150ºC
Application Exploration and Measurement Instruments
Chemistry Lithium Thionyl Chloride
Voltage 3.6V
Watt Hour 43.2Wh
Nominal Capacity 12Ah
Maximum Continuous
Discharge Current		 170mA
Brand
Size D
Width 33.2mm
Height 61.5mm
Weight 108g
Inner Quantity 30
Outer Quantity 120
Comments

ER34615S-150 primary lithium battery.

Wuhan Fanso high temperature range.

Features:

  • Suitable for extreme temperature environments. Wide operating temperature range: -20ºC ~ +150ºC.
  • High and stable operating voltage.
  • Long shelf life: self discharge rate less than 2% at 25°C.
  • High energy density (700Wh/kg).
  • Long operating life.
  • Stainless steel container and end caps.
  • Hermetic glass-to-metal sealing.
  • Non-flammable electrolyte.
  • Compliant with IEC86-4 safety standard.

Suitable for applications including:
  • Exploration measurement instruments (mills, oil fields)
  • Data recording instruments
  • Military communication equipment
  • Electronic testing equipment
  • Navigation and aviation equipment
  • Sea/marine equipment
  • Downhole storage apparatus
  • Electronic pressure gauge
  • Flow meter
  • Geothermal meter
  • Aerospace


Store in a cool dry place not exceeding +30ºC.

Click here to view the 2021 Fanso Catalogue

Thumbnail for Indent Only comment

PLEASE NOTE - INDENT ITEM:
This is an indent item (not stocked) and will need to be ordered in from the factory. Minimum order quantities (MOQ) and/or lead times will apply. Please contact us for more information.

Shipping restrictionsClass 9 Dangerous Goods icon

SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

UN3090 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM METAL BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.

Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
