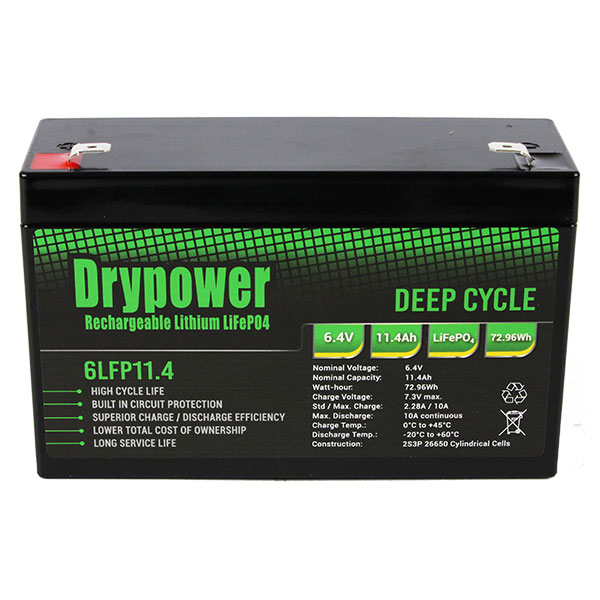

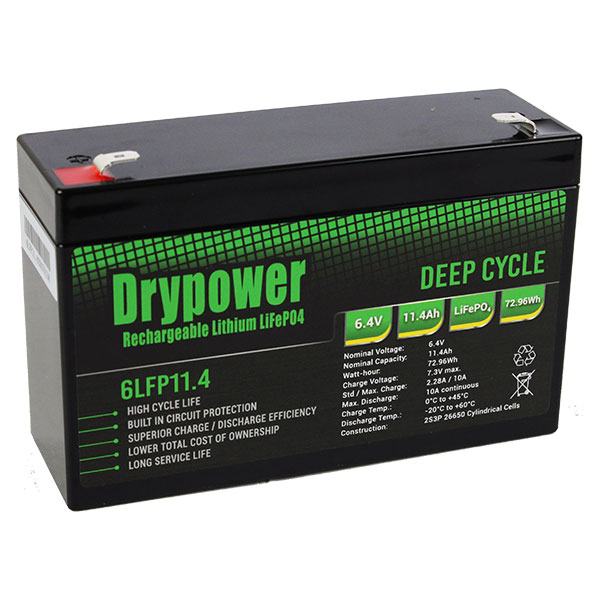

Description Drypower 6.4V 11.4Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery - Up to 4 in Series Capable
Chemistry Lithium Iron Phosphate (LiFePO4)
Voltage 6.4V
Watt Hour 72.96Wh
Nominal Capacity 11.4Ah
Maximum Continuous
Discharge Current
10A
Brand
Termination Faston 250 / F2 Size 6.3mm Spade Type
Size 2S3P
Width 50mm
Height 93mm
Length/Breadth/Depth 150mm
Weight 600g
Comments

Important Information:

SERIES CONNECTION CAPABLE

This Drypower Lithium Iron Phophate battery can be connected in series up to 4S

No Parallel connection allowed

*See Product Manual or Datasheet for more information

6V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement

2S3P-Cylindrical Construction

Specifications:
  • Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
  • Max. continuous discharge current: 10A
  • Charge voltage: 7.2V (7.3V Max)
  • Max. cont. charge current: 10A
  • Operating Discharge temperature: -20°C to +60ºC
  • Operating Charge temperature: +0°C to +45ºC
  • Storage temperature: -20°C to +45ºC
  • Operating Humidity (non-condensing): 5%-85%
  • Series Connection: Up to 4S
  • Parallel Connection: Nil



Recommended Charger:

Click to View
Click here to view the FY0752000 charger. You will also require an adaptor cable to connect to the battery. Click here to view the CC34-250 cable


 FEATURES & BENEFITS
Long Service Life
>2000 cycles @100% DoD (25°C) to 80% of original capacity
- longer service life than SLA to reduce maintenance costs.
 High Energy Density - More Power p/kg
Higher total system capacity and superior utilisation (full
100% DoD) to reduce overall system size and footprint.

Robust Enclosure
Enclosed in IP5x (dust resistant) or IP6x (dust tight) case
with closed loop terminals - suitable for harsh environments.

Stable Chemistry & Built-in Circuit Protection
IEC & UN38.3 Safety Certified at cell level and integrated
BMS protection to ensure safety and prevent damage.

Lightweight
Approx. 1/2 the weight (or less) of equivalent in SLA means
lower logistics costs and minimal OH&S concerns.

Superior Charge & Discharge Eiciency
Faster charge/discharge rates (C/2 LiFePO4 vs C/20 SLA)
for higher power usage and less downtime when charging.

Wide Operating Temperature Tolerance
Suitable for use in a wider range of applications where
ambient temperature is atypical: from 20°C up to +60°C.

Fully Recyclable Battery
An environmentally friendly battery option, with no lead or
calcium that can leak into the enviroment.

Click to View

Click here to view the Drypower Resources Page featuring VRLA/GEL Battery Cross Reference, Drypower Lithium Specification chart, Termination Guides, Terminal Protectors & Connectors (Busbar) guide, and more.

Click to View

Click here to view the Drypower Catalogues Page featuring the Drypower Range Catalogues & Product Brochures

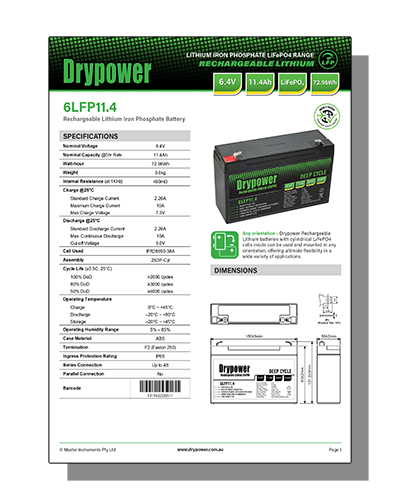

Data Sheet
