Product Details

Model No
SHARE US:
Selling Unit EACH
Categories Lithium Ion Batteries
Lithium Iron Phosphate Battery Packs
12 Volt Series LiFePO4
Drypower Lithium Iron Phosphate Battery Packs
Lithium Iron Phosphate Modules

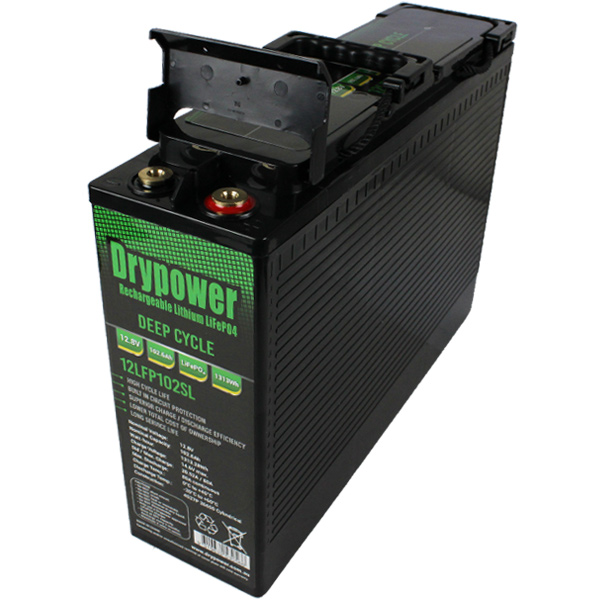

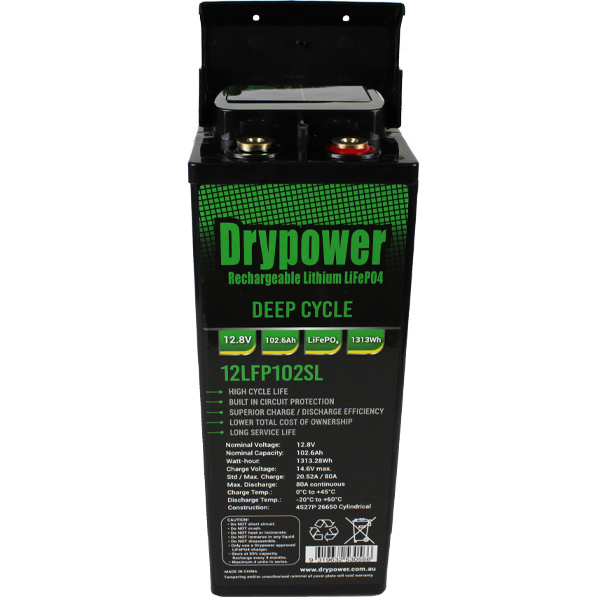

Description Drypower 12.8V 102.6Ah Front Terminal Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery - Up to 4 in Series Capable
Chemistry Lithium Iron Phosphate (LiFePO4)
Voltage 12.8V
Watt Hour 1313.28Wh
Nominal Capacity 102.6Ah
Maximum Continuous
Discharge Current		 80A
Brand
Termination F18 (M8 Bolt)
Size 4S27P
Width 110mm
Height 286.5mm
Length/Breadth/Depth 395mm
Weight 13100g
Comments

Important Information:

SERIES CONNECTION CAPABLE

This Drypower Lithium Iron Phophate battery can be connected in series up to 4S

No Parallel connection allowed

*See Product Manual or Datasheet for more information

12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement

4S27P-Cylindrical Slim Line Construction

Specifications:
  • Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
  • Max. continuous discharge current: 80A
  • Charge voltage: 14.2V - 14.6V (14.2V recommended)
  • Standard charge current: 20.52A
  • Max. cont. charge current: 80A
  • Operating Discharge temperature: -20°C to +60ºC
  • Operating Charge temperature: +0°C to +45ºC
  • Storage temperature: -20°C to +45ºC
  • Operating Humidity (non-condensing): 5%-85%
  • Series Connection: Up to 4S
  • Parallel Connection: Nil



Recommended Chargers:

Click to View
Click here to view the Victron Energy Blue Smart IP65 Charger Range with Bluetooth
Click to View
Click here to view the Victron Energy Blue Smart IP67 Charger Range with Bluetooth
Click to View
Click here to view the Victron Energy Blue Smart IP22 Charger Range


This product is certified to UN38.3

This battery has been tested & complies with the UN Model Regulation, Manual of Test & Criteria, Part III, Subsection 38.3

 FEATURES & BENEFITS
Long Service Life
>2000 cycles @100% DoD (25°C) to 80% of original capacity
- longer service life than SLA to reduce maintenance costs.
 High Energy Density - More Power p/kg
Higher total system capacity and superior utilisation (full
100% DoD) to reduce overall system size and footprint.

Robust Enclosure
Enclosed in IP5x (dust resistant) or IP6x (dust tight) case
with closed loop terminals - suitable for harsh environments.
Stable Chemistry & Built-in Circuit Protection
IEC & UN38.3 Safety Certified at cell level and integrated
BMS protection to ensure safety and prevent damage.

Lightweight
Approx. 1/2 the weight (or less) of equivalent in SLA means
lower logistics costs and minimal OH&S concerns.
Superior Charge & Discharge Eiciency
Faster charge/discharge rates (C/2 LiFePO4 vs C/20 SLA)
for higher power usage and less downtime when charging.

Wide Operating Temperature Tolerance
Suitable for use in a wider range of applications where
ambient temperature is atypical: from 20°C up to +60°C.
Fully Recyclable Battery
An environmentally friendly battery option, with no lead or
calcium that can leak into the enviroment.

Click to View

Click here to view the Drypower Resources Page featuring VRLA/GEL Battery Cross Reference, Drypower Lithium Specification chart, Termination Guides, Terminal Protectors & Connectors (Busbar) guide, and more.

Click to View

Click here to view the Drypower Catalogues Page featuring the Drypower Range Catalogues & Product Brochures

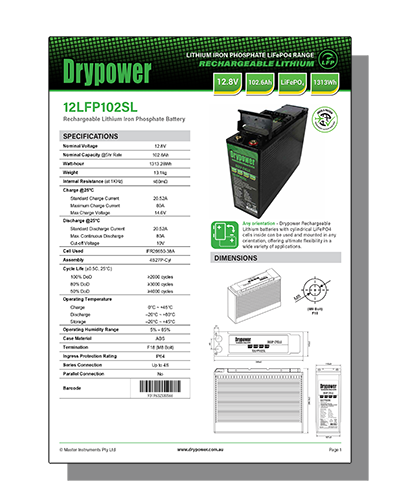

Data Sheet
