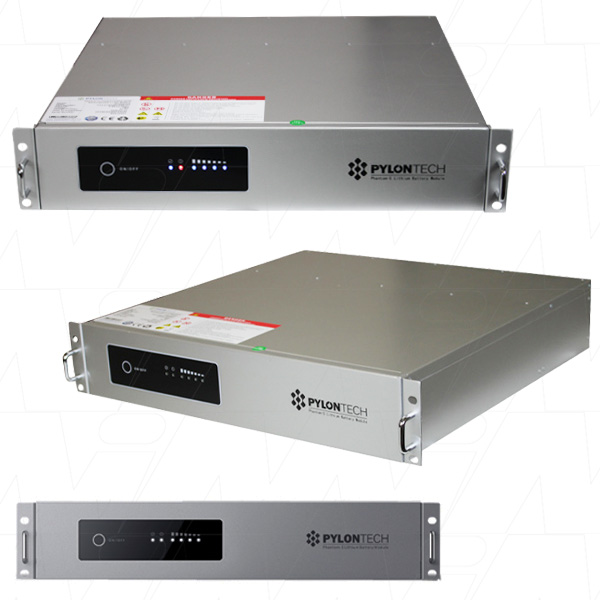

Pylontech PHANTOM-S
48V 50Ah 2400Wh rack mounted battery module LiFePO4 15S2P
Pylontech Phantom-S 48V 50Ah Rack Mounted LiFePO4 Battery Module
Phantom-s is a member of HESS battery system designed by Pylontech. Its long life characteristics, highest energy and power density in the industry, fashionable design, easiness of installation and expansion, all reflect the real requirements of end users and the strong technical capability of Pylontech.
Pylontech ensure the highest quality by designing & manufacturing their own Lithium Phosphate (LiFePO4) batteries and BMS boards.

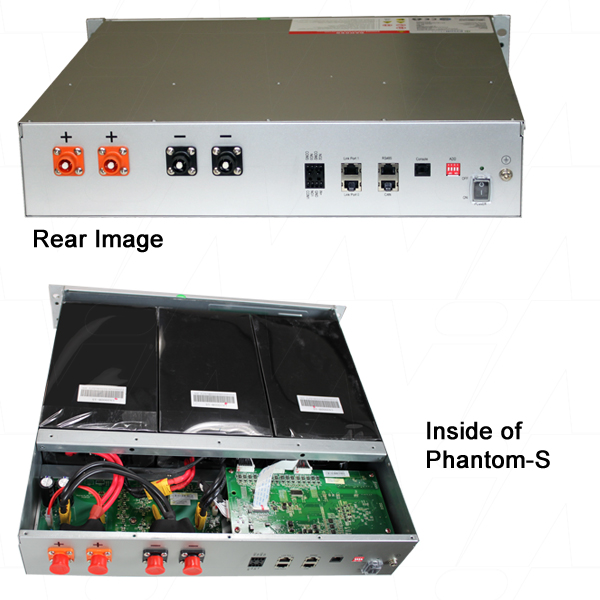

The Phantom-S is the same size and specifications as the US2000. The Phantom-S has an aesthetically pleasing facia with all cabling at the rear of the module.
Features:
- Cycle life: >6000 cycles @ 25°C with 90% DoD for daily cyclic applications
- Usable capcity of 2.16kWh @ 48 VDC
- Working Temperature Range -10°C to 50°C, (Charging 0~50°C: Discharging -10~50°C)
- Compact and fashionable 19" rack design to suit bracket, rack or cabinet installations
- Modular design gives the you the power to design systems from 2.4kWh to a commercial sized 480kWh
- Compatible with many available Hybrid inverters
- Safety Cert.TüV, CE, R0HS, UN38, IEC62619
- Communication Protocols: CAN, RS485, RS232
- 15+ Year Design Life
- 10 year Warranty
Important Information:
This Pylontech Battery can be connected in Unlimited Parallel configurations.
No Series connection allowed
External BMS:
A LV-HUB communications hub is required with each string of 8 parallel units
- RS232
- RS485
- CAN
View Cabinets & Accessories for this battery module
System Integration:
The Pylontech Phantom-s battery can be integrated with many of the world's leading inverter brands.
Contact us for System integration information for the following brands:
Selling Unit | EACH |
---|---|
Model No | PHANTOM-S |
Brand | |
Description | 48V 50Ah 2400Wh rack mounted battery module LiFePO4 15S2P |
Application | Home Power Storage, Telecommunications, Off Grid power, Industrial Power |
Chemistry | Lithium Iron Phosphate (LiFePO4) |
Voltage | 48V |
Watt Hour | 2400Wh |
Nominal Capacity | 50Ah |
Maximum Continuous Discharge Current | 50A |
Size | 2RU |
Width | 442mm |
Height | 88.5mm |
Length / Breadth / Depth | 440mm |
Weight | 24000g |
Categories |
Lithium Ion Batteries Lithium Iron Phosphate Battery Packs 48 Volt Series LiFePO4 Rack Mount Battery Systems Rack Mount Batteries Pylontech Rack Mount Battery Modules |
Data Sheet |
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
Compatibility List of Pylontech ESS and Inverters. View the full list here
For the Pylontech Catalogues & Brochures Page - Click here
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
