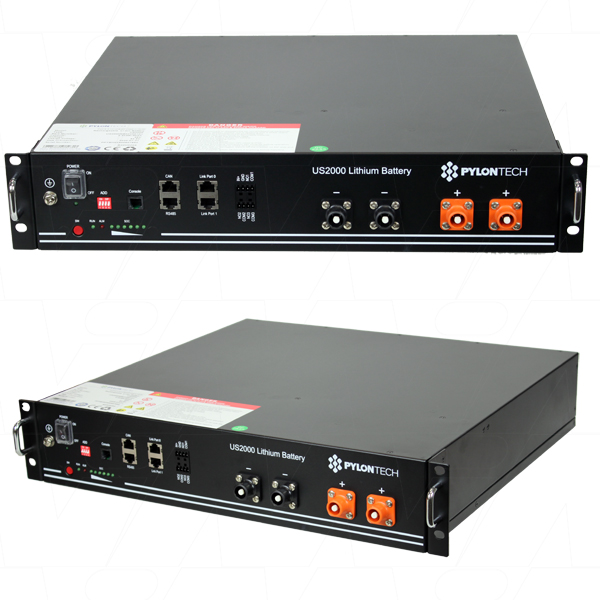

Pylontech US2000
48V 50Ah 2400Wh rack mounted battery module LiFePO4 15S2P
Pylontech US2000 PLUS 48V 50Ah Rack Mounted LiFePO4 Battery Module - Latest generation
Each Battery comes with a 180MM long interlinking Kit to connect batteries in Parallel.
US2000 series is an ideal solution for residential storage applications, with standard 48V/50AH specification, up to 90% usable capacity and 6,000 cycle-life warranty.
Features:
- Cycle life: >6000 cycles @ 25°C with 90% DoD for daily cyclic applications
- Usable capcity of 2.16kWh @ 48 VDC
- Charge / Discharge - Max Continuous 25A, Peak 1. 50 -89A @ 60 Sec. Peak 2. 90-200A @ 15 Sec.
- Working Temperature Range -10°C to 50°C, (Charging 0~50°C: Discharging -10~50°C)
- Compact and fashionable 19" rack design to suit bracket, rack or cabinet installations
- Modular design gives the you the power to design systems from 2.4kWh to a commercial sized 480kWh
- Compatible with many available Hybrid inverters
- Safety Cert.TüV, CE, R0HS, UN38, IEC62619, IEC62040, IEC61000-6-2, IEC61000-3
- Communication Protocols: CAN, RS485, RS232
- 15+ Year Design Life
- 10 year Warranty
- Clean Energy Council Approved (CEC)
Important Information:
This Pylontech Battery can be connected in unlimited parallel configurations.
No Series connection allowed
External BMS
A single LV-HUB communications hub can manage up to 5 strings of 8 batteries for a total of 40 US2000 batteries per LV-Hub
A total of five LV Hubs and their associated 40 batteries can then be parralled to a total 200 US2000 Batteries.
Systems containing between 2 to 5 LV Hubs will require 1 additional LV Hub to act as the Master Hub.
Communications:
- RS232
- RS485
- CAN
View Cabinets & Accessories for this battery module
System Integration:
The Pylontech US2000 battery can be integrated with the Victron Inverter Charger range.
Contact us for System integration information to Victron Products:
| Selling Unit | EACH |
|---|---|
| Model No | US2000 |
| Brand |
|
| Description | 48V 50Ah 2400Wh rack mounted battery module LiFePO4 15S2P |
| Application | Home Power Storage, Telecommunications, Off Grid power, Industrial Power, Remote Infrastructure Power |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 48V |
| Watt Hour | 2400Wh |
| Nominal Capacity | 50Ah |
| Maximum Continuous Discharge Current | 50A |
| Size | 2RU |
| Width | 442mm |
| Height | 89mm |
| Length / Breadth / Depth | 410mm |
| Weight | 24000g |
| Categories |
Lithium Ion Batteries Lithium Iron Phosphate Battery Packs 48 Volt Series LiFePO4 Rack Mount Battery Systems Rack Mount Batteries Pylontech Rack Mount Battery Modules Telecommunication Base Stations |
| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
This product appears on the Clean Energy Council list of currently approved batteries (energy storage devices)
View the full list here
Compatibility List of Pylontech ESS and Inverters. View the full list here
For the Pylontech Catalogues & Brochures Page - Click here
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
