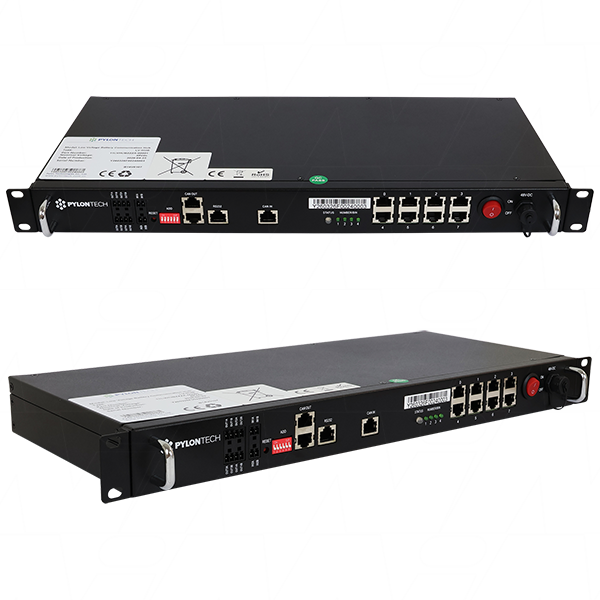

Pylontech LV-HUB

Pylontech LV-HUB

CAN/RS485 communications master controller low voltage hub

LV-HUB - RS485/CAN Communication hub for use with the US Series rack mount batteries from Pylontech

LV-Hub is the communications hub for use with strings of up to 8 units of US2000 or 8 units of US3000 batteries.

A single LV-Hub can manage up to 5 strings of 8 batteries (ie. 40 batteries), and can be expanded up to 5 LV Hubs to manage a total of 200 batteries.

Systems containing between 2 to 5 LV Hubs will require 1 additional LV Hub to act as the Master Hub.

Specifications:

Operating Voltage 48VDC
Communications CAN/RS485
System Consumption 2 Watts
Protection IP20
Operational Life 15 years
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +80°C
CAN (max 5) Baud rate: 500K; terminal resistance: 0/120 Ohm
RS485 (max 5) Baud rate: 9600/115200

IMPORTANT NOTE:

The Manual describes the operation and use of the LV-Hub, as a communication hub for the parallel connection of multiple low-voltage products.

In it you will find instructions on how to connect different application scenarios:

  • Parallel connection of multiple US versions of batteries (star topology),
  • Multiple US-C versions of batteries (daisy chain topology).

If you are mix using US series and US-C series batteries, please use C-models as masters and apply daisy chain structure for LV-HUB & battery connection.

It is important to follow the power on sequence described in the instructions, to ensure correct connectivity of the system.


SHARE:
Selling Unit EACH
Model No LV-HUB
Brand Pylontech brand logo
Description CAN/RS485 communications master controller low voltage hub
Application For more than 8 units of US2000 or US3000 Series batteries in a maximum of 5 piles
Voltage 48V
Width 442mm
Height 44mm
Length / Breadth / Depth 150mm
Weight 3500g
Categories Power Products & Accessories
Battery Management & Monitoring
Pylontech
Pylontech BMS & Distributors
External Master BMS
External Master BMS for 12V

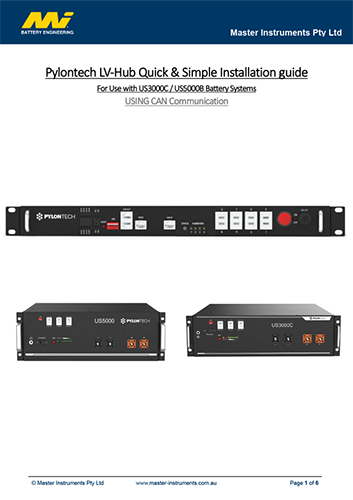

Data Sheet Datasheet PDF Thumbnail icon
