Symmetry SY2-M30W-5M

Symmetry SY2-M30W-5M

Symmetry 12V 30W 36 cells 1.61A IP65 Junction Box Monocrystalline Solar Module with 5m x 1.3mm2 dual core leads with tinned cable ends

Symmetry SY2 Series Solar Panels

The New 5 busbar Symmetry range of small area modules are perfect for use in a wide variety of low power solar PV systems.

Available in a range of sizes from 5 watts up to 160 watts, the Symmetry range uses mono-crystalline, weatherproof A grade solar cells in a robust aluminium frame.

Features:

  • 5 Busbar Cell - 5 busbar solar cells improve the efficiency of modules, offer a better aesthetic appearance.
  • High Efficiency - High module conversion efficiency, through innovative manufacturing technology.
  • Low-Light Performance - Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.
  • Severe Weather Resilience - Certified to withstand - wind load (2400Pa) and snow load (5400Pa)
  • Durability Against Extreme Environmental Conditions - High salt mist and ammonia resistance certified by TUV.
  • 0-+5W Positive Tolerance - Detailed information in Electrical Specifications.

Multiple Applications such as:

  • Off Grid Systems
  • Solar Fountains
  • Caravans
  • Boats & Marine
  • Remote Lighting
  • Power Supplies
  • Telemetry
  • Electric Fencing

Specifications:

Rated Power - Pmax (watts) 30W
Max. Power Voltage VMP (V) 18.67V
Max. Power Current IMP (A) 1.61A
Open Circuit Voltage Voc (V) 22.87V
Short Circuit Current Isc (A) 1.7A
Max. System Voltage (V) 1000V
Max Series Fuse Rating (A) 10A
Voc Temp. Coefficients (V/°C) 0.290%
Isc Temp. Coefficients (A/°C) +0.48%
Temperature Range -40°C to +85°C
Cell Technology Monocrystalline
Number of Cells 36
Junction Box Yes, IP64
Connectors / Output Cable 5m long x 1.3mm2 dual core leads with tinned cable ends

SHARE:
Selling Unit EACH
Model No SY2-M30W-5M
Brand Symmetry brand logo
Description Symmetry 12V 30W 36 cells 1.61A IP65 Junction Box Monocrystalline Solar Module with 5m x 1.3mm2 dual core leads with tinned cable ends
Voltage 12V
Size 30W
Width 345mm
Height 25mm
Length / Breadth / Depth 605mm
Weight 2200g
Categories Power Products & Accessories
Symmetry Solar Panels
Solar
Solar Panels
Monocrystalline Solar Panels

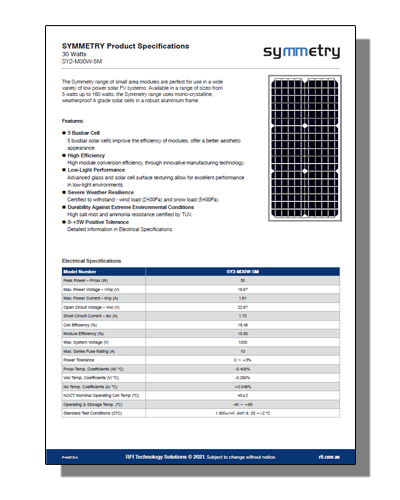

Data Sheet Datasheet PDF Thumbnail icon
