Product Details

Model No
Selling Unit EACH
Categories Lithium Ion Batteries
Lithium Iron Phosphate Battery Packs
48 Volt Series LiFePO4
Rack Mount Battery Systems
Rack Mount Cabinets & Accessories
Wescor Solar Battery & Equipment Cabinets
Description Large Battery & Power Conversion Specialty Cabinet Enclosure for up to 12 x 19" Battery Modules & Power Conversion Equipment
Application Off-grid Solar systems, Back-up systems for office computers, data centres, Banks, hospitals, Schools & Infrastructure Applications
Width 1800mm
Height 2027mm
Length/Breadth/Depth 550mm
Weight 106000g

Associated Product Links:

ALBBK Aluminum Bus Bar Kit for Wescor cabinets

Pylontech's range of 19" rackmount battery modules
Inverter/Charger ranges
  Solar Controller ranges

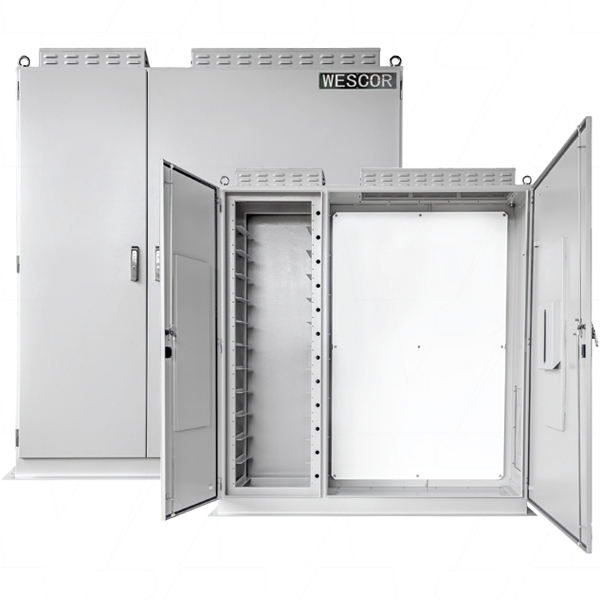

ALL12+ is the largest option in the Wescor battery & equipment cabinet range and houses up to 12 x 19" 3RU rackmounted battery modules and associated power conversion equipment.

Save time on-site and provide the customer with a neat, safe enclosure for their solar system installation.

It is suitable for placing up to Three (3) inverter/chargers in series or parallel configurations. The cabinets are sized to enable mounting of all inverters and charge controllers in the same panel. This makes the installation much safer, whilst keeping all equipment out of sight and protected from the elements. The cabinets are made of aluminium, making them easy to position and providing a long service life.

A slide-in racking system allows for easy installation of 19" rackmount style battery modules along with rain protected vents on both sides and on top for passive ventilation.


  • Australian designed: Australian Register of Designs Certification No.202014068
  • 19" Rack mounts with slide-in shelves for up to 3RU battery module mounting
  • Battery module capacities ranging from 8-12 modules
  • IP protection rating
  • Fully welded construction, 3mm Aluminium
  • Powder coated light grey finish (RAL7035)
  • Mounting pan powder coated white
  • Double front doors with segregation between battery section and equipment section
  • Robust 3-point locking system
  • Gland plates fitted internally
  • Rain protected vents on either side and on top to facilitate passive ventilation. These covers are removable
  • Ventilation fans can be added to aid passive ventilation
  • Mounting plate can be used for inverters, chargers and all other equipment
  • Stainless steel lifting eyes on all four corners on top
  • Internal circuit breaker section for individual battery module isolation, with circuit breaker cut-outs in the escutcheon
  • Stainless steel mesh screens installed over all ventilation openings to prevent unwanted entry by insects
  • Document pocket on inside of door


Also available in 2 other sizes:

 ALS8 Small Battery & Power Conversion Specialty Cabinet Enclosure
 ALM12 Medium Battery & Power Conversion Specialty Cabinet Enclosure


Click to view more images

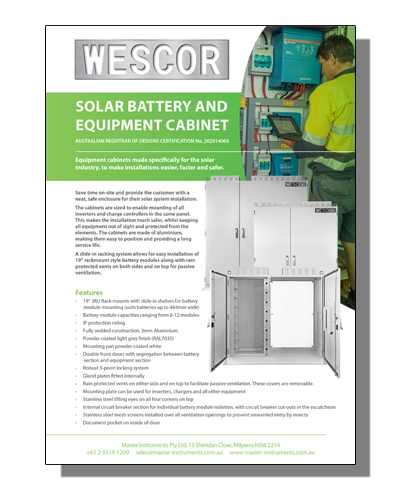

Data Sheet
