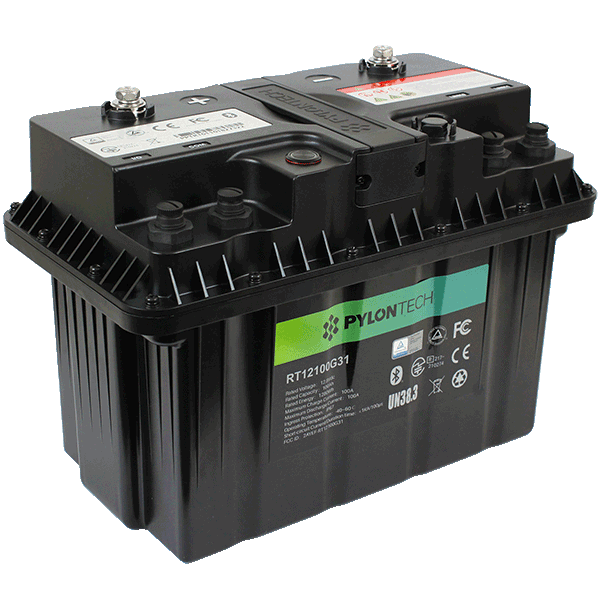

Pylontech RT12100G31

Pylontech RT12100G31

12.8V 100Ah 1280Wh IP67 Rated LiFePO4 Battery with CAN & RS485 Communication & Scalable up to 16 Modules

Advanced IP67 rated 12V 100Ah Lithium Iron Phosphate battery with On/Off button, advanced communications protocols and easy scalability.

The Pylontech RT12100G31 battery has been developed to provide adaptability and scalability to applications from Marine, RV/Caravan, 4x4 and other solar storage systems.

The Intelligent BMS provides the ultimate in safety with temperature protection, over-voltage, over-current and short circuit protection to ensure safe operation, high reliability & zero maintenance to extend service life.

However, it's the advanced communication protocols built in that is the biggest advantage! Incorporating the RT12100G31 into your power system is also simple when combined with a Victron Energy GX device , allowing monitoring & control from existing battery system monitors or marine glass bridges.

Being an "array aware" or managed battery, The RT12100G31 allows for expansion by allowing the BMS to communicate with each other in a master/slave format. This allows for the battery system to increase maximum continuous discharge @ 1.0C up to 8 batteries (e.g 1S4P will provide a Max. cont. discharge of 400A, with an 800A pulse discharge for 30 seconds.

Scalability:

  • A 12V System (1S) can be scaled up to 16 in parallel
  • A 24V system (2S) up to 8 in parallel
  • A 48V system (4S) up to 4 in parallel

*For systems of 1-8 batteries, the maximum continuous discharge is 1.0C, for system of 9 batteries or more, the maximum continuous discharge is 0.8C

As Lithium batteries provide clear advantages over traditional lead-acid batteries with longer service life, deeper discharge capability, more usable capacities and much lighter weight, the RT12100G31 is a great solution for many applications.

Bluetooth:

Suitable for Marine
Scalable up to 16 units
Transport Certified
Bluetooth Enabled
Superior Service Life
100A Max. Cont. Discharge
Advanced BMS
Lightweight

Specifications:

Voltage (V) 12.8V
Capacity (Ah) 100Ah
Watt Hour (Wh) 1280Wh
Chemistry LiFePO4 (Lithium Iron Phosphate)
Cycle Life >6000 cycles (90% DoD @ 25°C)
Max. continuous discharge current 100A
Max. pulse discharge current 200A
Charge Voltage 14.0 - 14.4V
Max. continuous charge current 50A
Operating discharge temperature -20°C to +60°C
Operating charge temperature 0°C to +60°C
Storage temperature -40°C to +60°C
Short circuit protection Yes
Ingress Rating IP67 rating
Series connection allowed Up to 4S
Parallel connection allowed Up to 16P @ 12V; up to 8P @ 24V; up to 4P @ 48V
Case structure Rugged mechanical design
Safety UN38.3 approved
Warranty 5 years
Size G31

RT12100G31 Box Contents

Each battery is supplied with a linking/communications cable, a heater plug, spare communications plug and operating manual and instructions.

See the product manual below for more information

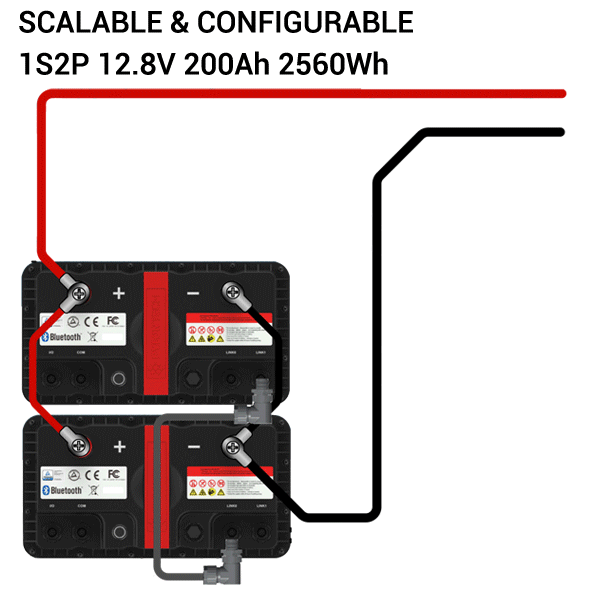

RT12100G31 SCHEMATICS


SHARE:
Selling Unit EACH
Model No RT12100G31
Brand Pylontech brand logo
Description 12.8V 100Ah 1280Wh IP67 Rated LiFePO4 Battery with CAN & RS485 Communication & Scalable up to 16 Modules
Application Lead Acid Replacement, Marine Storage, Caravan/RV Storage, Industrial Market Applications, Deep Cycle
Chemistry Lithium Iron Phosphate (LiFePO4)
Voltage 12.8V
Watt Hour 1280Wh
Nominal Capacity 100Ah
Maximum Continuous Discharge Current 100A
Termination M8
Size 1S16P, 2S8P, 4S4P Max
Width 325mm
Height 226mm
Length / Breadth / Depth 173.5mm
Weight 13000g
Categories Lithium Ion Batteries
Lithium Iron Phosphate Battery Packs
12 Volt Series LiFePO4
Pylontech Stand Alone Batteries
Lithium Iron Phosphate Modules
Data Sheet Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

UN38.3 safety checked logo

This product is certified to UN38.3

This battery has been tested & complies with the UN Model Regulation, Manual of Test & Criteria, Part III, Subsection 38.3

Read the UN38.3 Information and FAQ's Document.

AS/NZS 3001.2.2022 standard approved logo

This Battery Pack has been tested and complies with IEC 62619:2022

Shipping restrictions Class 9 Dangerous Goods icon

SHIPPING RESTRICTIONS APPLY

Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.

Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
