Product Details

Model No
Selling Unit EACH
Categories Solar Charge Controllers/Regulators
PWM Type Solar Controllers
Mountable Chargers
Power Products & Accessories
DC Solar Conversion
BlueSolar Range
Description Blue Solar 12V/24V 5A PWM PRO Solar Charge Controller SCC010005010
Original Brand Victron Energy SCC010005010
Width 70mm
Height 138mm
Length/Breadth/Depth 37mm
Weight 130g

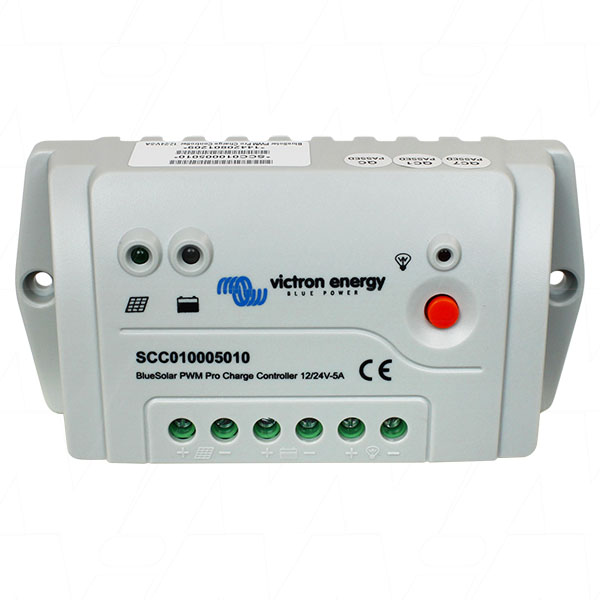

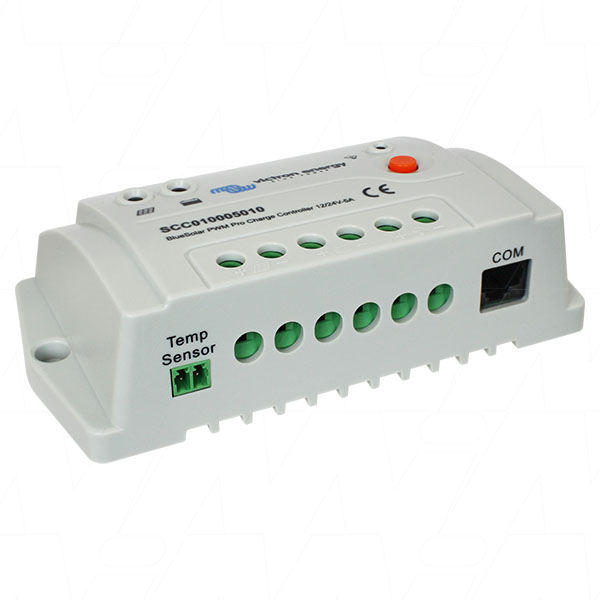

BlueSolar 12V/24V 5A PWM PRO Charge Controller

The BlueSolar PWM-Pro series is ready for use with its default settings.
It also is fully programmable:

  • With help of a computer and software (available free of charge from the VE website)
  • With the dedicated BlueSolar Pro Remote Panel (see features below).


  • Lighting control function, fully programmable.
  • Three stage battery charging (bulk, absorption, float), fully programmable.
  • Integrated battery monitor function (Remote Panel needed to display state of charge).
  • Load output with low voltage disconnect and manual control (default setting).
  • Optional external temperature sensor.
  • Load output protected against over load and short circuit.
  • Protected against reverse polarity connection of the solar array and/or battery.
  • Day/night timing options
