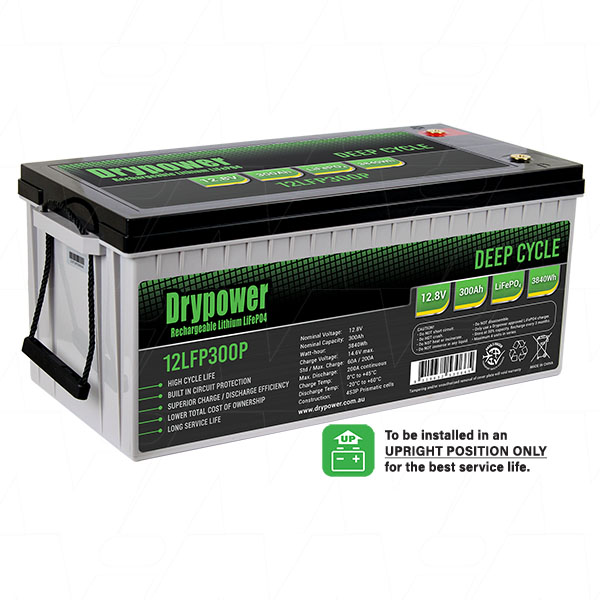

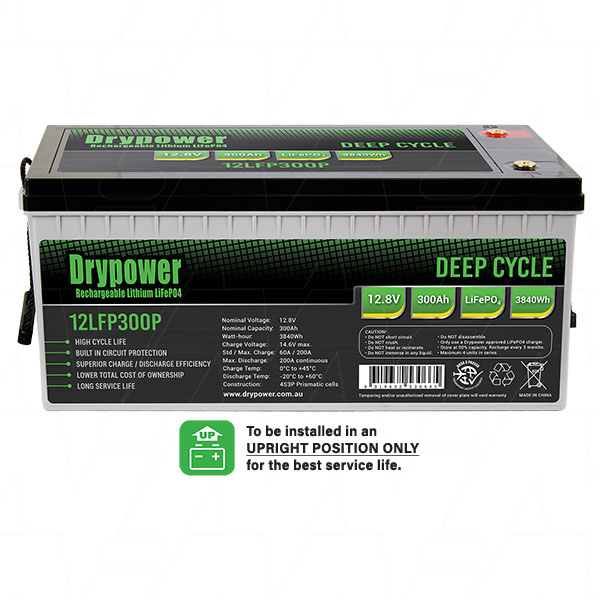

Drypower 12LFP300P
High power 12.8V 300Ah lithium iron phosphate (LiFePO4) rechargeable battery
12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement
4S3P Prismatic Construction
Specifications:
- Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
- Max. continuous discharge current: 200A
- Charge voltage: 14.2V - 14.6V (14.2V recommended)
- Standard charge current: 60A
- Max. cont. charge current: 200A
- Operating Discharge temperature: -20°C to +60ºC
- Operating Charge temperature: +0°C to +45ºC
- Storage temperature: -20°C to +45ºC
- Operating Humidity (non-condensing): 5%-85%
- Series Connection: Up to 4S
- Parallel Connection: Up to 2P (please see Installation Instructions)
High output: This battery is rated to a 200 amp continuous discharge. This is suitable to run inverters rated up to 2000 Watts.
For larger inverters in RV & Marine applications we recommend the use of the Pylontech RT12100G31. As a "Managed" battery, the RT12100G31 can be paralleled for higher discharge applications such as use by the Victron 3kVa inverter charger range. Please contact the engineers at Master Instruments for further information.
Important Information - SERIES OR PARALLEL CONNECTION CAPABLE
This Drypower Lithium Iron Phophate battery can be connected in series up to 4S, OR up to 2 in Parallel*

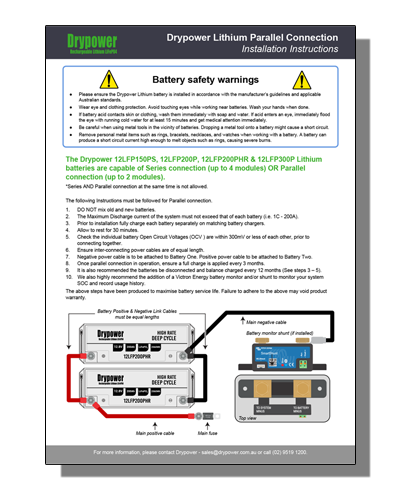

*For parallel connections please refer to Installation Instructions
Series AND Parallel connection at the same time is not allowed
Want Bluetooth Monitoring?
Find out why we recommend pairing this battery with a Victron Energy SmartShunt
Recommended Chargers:
| Selling Unit | EACH |
|---|---|
| Model No | 12LFP300P |
| Brand |
|
| Description | High power 12.8V 300Ah lithium iron phosphate (LiFePO4) rechargeable battery |
| Application | Caravan/RV/camping, mobility, marine, medical, solar, and more |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 12.8V |
| Watt Hour | 3840Wh |
| Nominal Capacity | 300Ah |
| Maximum Continuous Discharge Current | 200A |
| Termination | F18 (M8 Bolt) |
| Size | 4S3P |
| Width | 520mm |
| Height | 220mm |
| Length / Breadth / Depth | 240mm |
| Weight | 30500g |
| Categories |
Lithium Ion Batteries Lithium Iron Phosphate Battery Packs 12 Volt Series LiFePO4 Drypower Drypower Lithium Iron Phosphate Battery Packs Lithium Iron Phosphate Modules |

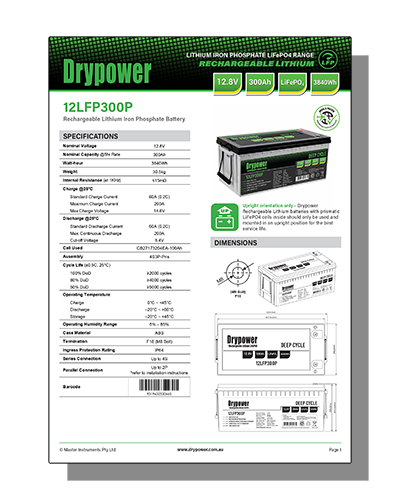

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
Features & Benefits
Long Service Life
>2000 cycles @100% DoD (25°C) to 80% of original capacity - longer service life than SLA to reduce maintenance costs.
High Energy Density - More Power p/kg
Higher total system capacity and superior utilisation (full 100% DoD) to reduce overall system size and footprint.
Robust Enclosure
Enclosed in IP5x (dust resistant) or IP6x (dust tight) case with closed loop terminals - suitable for harsh environments.
Stable Chemistry & Built-in Circuit Protection
IEC & UN38.3 Safety Certified at cell level and integrated BMS protection to ensure safety and prevent damage.
Lightweight
Approx. 1/2 the weight (or less) of equivalent in SLA means lower logistics costs and minimal OH&S concerns.
Superior Charge & Discharge Efficiency
Faster charge/discharge rates (C/2 LiFePO4 vs C/20 SLA) for higher power usage and less downtime when charging.
Wide Operating Temperature Tolerance
Suitable for use in a wider range of applications where ambient temperature is atypical: from -20°C up to +60°C.
Fully Recyclable Battery
An environmentally friendly battery option, with no lead or calcium that can leak into the enviroment.
View the Drypower Resources Page featuring VRLA/GEL Battery Cross Reference, Drypower Lithium Specification chart, Termination Guides, Terminal Protectors & Connectors (Busbar) guide, and more.
View the Drypower Catalogues Page featuring the Drypower Range Catalogues & Product Brochures
This Battery Pack has been tested and complies with IEC 62619:2022
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
