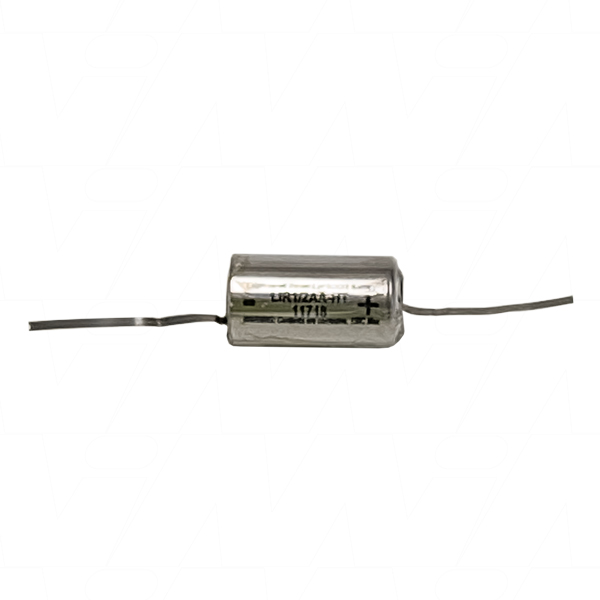

Engineered Power LIR1/2AA-HT
1/2AA 3.67V 700mAh High Rate High Temp Lithium Thionyl Chloride Bare Cell
1/2AA size high-rate Spiral type Lithium Thionyl Chloride cell.
High Rate Cells - Spiral design safely delivers consistent, high quality power to the most demanding applications.
Features:
- High Rate Spiral wound
- High Energy
- High Temperature (-40°C to +150°C)
- UN/DOT Certified
- Hermetically Sealed
Suitable for use in Measurement while drilling (MWD), down hole & pressure gauge applications, memory backup, high shock & vibration applications & more.
SHARE:
| Selling Unit | EACH |
|---|---|
| Model No | LIR1/2AA-HT |
| Brand |
|
| Description | 1/2AA 3.67V 700mAh High Rate High Temp Lithium Thionyl Chloride Bare Cell |
| Application | Memory Back Up (MBU), Transceivers, Down-Hole, Measurement & Logging while Driving (MWD/LWD), High Shock & Vibration Environments |
| Chemistry | Lithium Thionyl Chloride |
| Voltage | 3.67V |
| Watt Hour | 2.569Wh |
| Nominal Capacity | 700mAh |
| Maximum Continuous Discharge Current | 50mA |
| Size | 1/2AA |
| Width | 13.5mm |
| Height | 26.7mm |
| Weight | 10g |
| Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Thionyl Chloride Batteries Lithium Thionyl Chloride Batteries High Temperature Type |

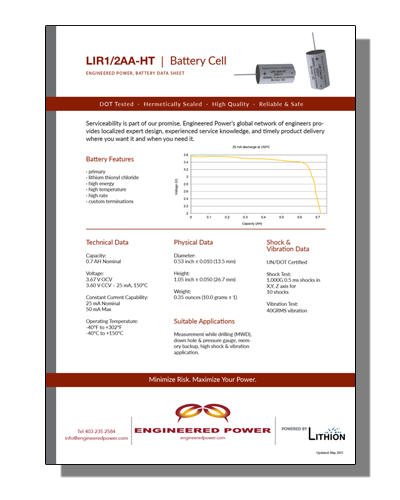

| Data Sheet |
|
