Engineered Power LMRCC-DA-HT-BC

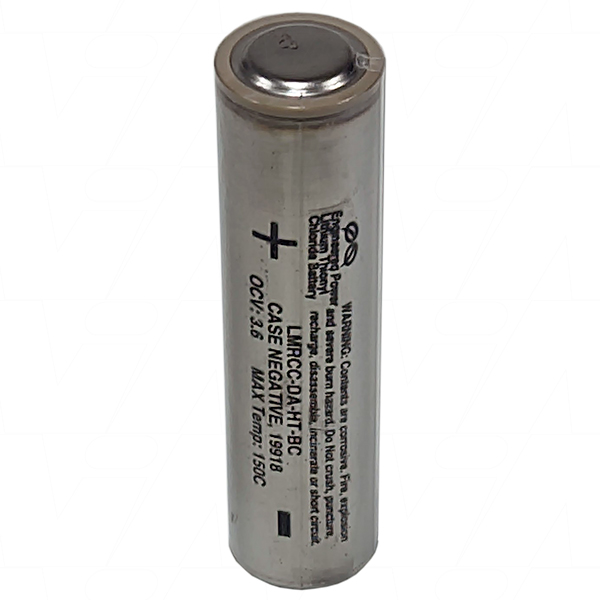

CC 3.67V 15Ah High Rate High Temp Lithium Thionyl Chloride Bare Cell
CC size High-rate Spiral type Lithium Thionyl Chloride cell.
High Rate Cells - Spiral design safely delivers consistent, high quality power to the most demanding applications.
Features:
- High Rate Spiral wound
- High Energy
- High Temperature (-40°C to +150°C)
- UN/DOT Certified
- Hermetically Sealed
Suitable for use in Measurement while drilling (MWD), down hole & pressure gauge applications, memory backup, high shock & vibration applications & more.
SHARE:
| Selling Unit | EACH |
|---|---|
| Model No | LMRCC-DA-HT-BC |
| Brand |
|
| Description | CC 3.67V 15Ah High Rate High Temp Lithium Thionyl Chloride Bare Cell |
| Application | Memory Back Up (MBU), Transceivers, Down-Hole, Measurement & Logging while Driving (MWD/LWD), High Shock & Vibration Environments |
| Chemistry | Lithium Thionyl Chloride |
| Voltage | 3.67V |
| Watt Hour | 55.05Wh |
| Nominal Capacity | 15Ah |
| Size | CC |
| Width | 25.1mm |
| Height | 96.8mm |
| Weight | 100g |
| Categories |
Portable Power Product Batteries Primary (Non-Rechargeable) Lithium Batteries Lithium Thionyl Chloride Batteries Lithium Thionyl Chloride Batteries High Temperature Type |

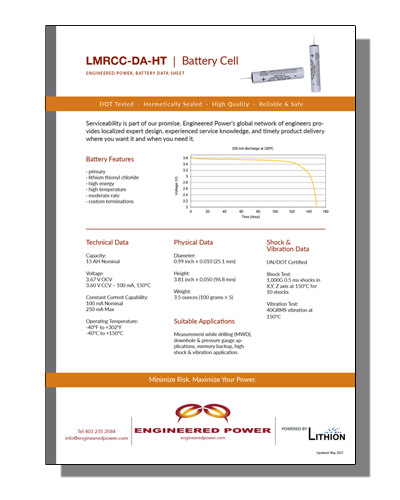

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3090 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM METAL BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
