Lutron PM9102

Lutron PM9102

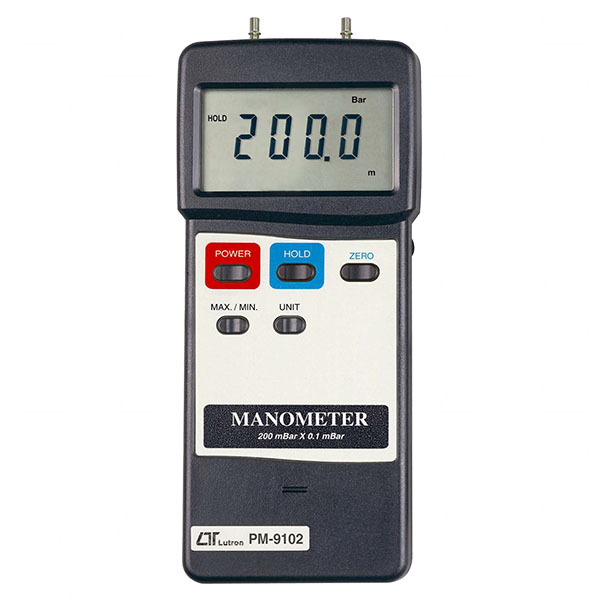

Manometer - 200 mbar, dual & differential input

Manometer - 200 mbar, dual & differential input.

Features:

  • Dual & differential input, 200 mbar max. range.
  • Sensor is built inside the housing.
  • Single lugs for pipe connection.
  • 8 kind display units ( mbar, psi, Kg/cm^2, mm Hg, inch Hg, meter H2O, inch H2O, Atmosphere ) select by push button on the front panel.
  • Auto shut off saves battery life.
  • Zero button on the front panel, easy to offset the zero value.
  • Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
  • Super large LCD display with contrast adjustment for best viewing angle.
  • Records maximum & minimum readings with recall.
  • Data Hold function for stored the desired value on display.
  • Built-in low battery indicator.
  • RS232 PC serial interface, can match the personal computer used as the data logger, recorder & other modern pressure measuring system.

SHARE:
Selling Unit EACH
Model No PM9102
Brand Lutron brand logo
Description Manometer - 200 mbar, dual & differential input
Width 72mm
Height 32mm
Length / Breadth / Depth 180mm
Weight 345g
Categories Test & Measurement Equipment
Digital Test Equipment
Pressure & Vacuum Meters
Data Sheet Datasheet PDF Thumbnail icon
