XTAR L4/AA4150
USB Type-C input automatic four-channel 1-4 cell LiIon/NiMH AA/AAA battery charger. Includes 4xAA XTAR 2500mAh/4150mWh LiIon batteries.

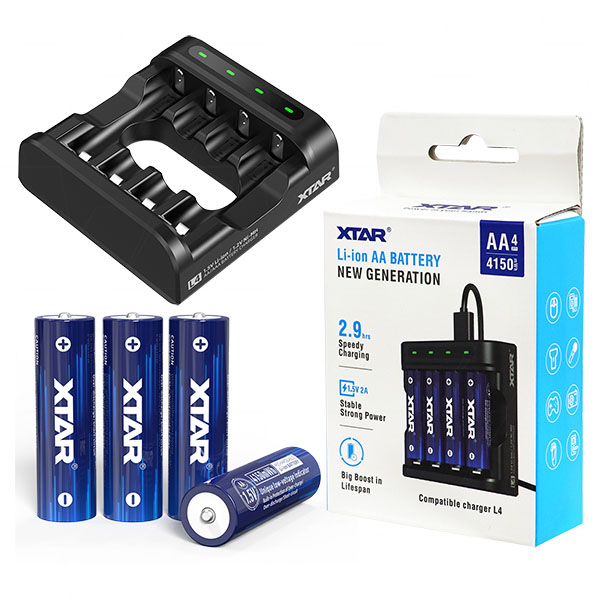

Charger+battery combo - XTAR L4 four channel (1-4 cells) fully automatic LiIon & NiMH battery charger PLUS 4xAA XTAR 2500mAh/4150mWh LiIon batteries.
Charger features:
- Four cell charger for charging:
- 1.5V lithium ion cell in sizes AAA, AA (The L4 charger cannot charge 3.2/3.6/3.7V lithium batteries. If such batteries are mistakenly inserted, the L4 charger will quickly flash a red light and will not charge them.)
- 1.2V NiMH cells in sizes AAA, AA
- Powered via USB-A to USB-C input (cable included).
- Smart fast charging TC-CC-CV for 1.5V lithium batteries with auto-stop.
- Unique CVSA tech for 1.2V NiMH batteries for faster charging, higher accuracy of full-charge detection and lower battery temperatures; fully charge in 6hrs.

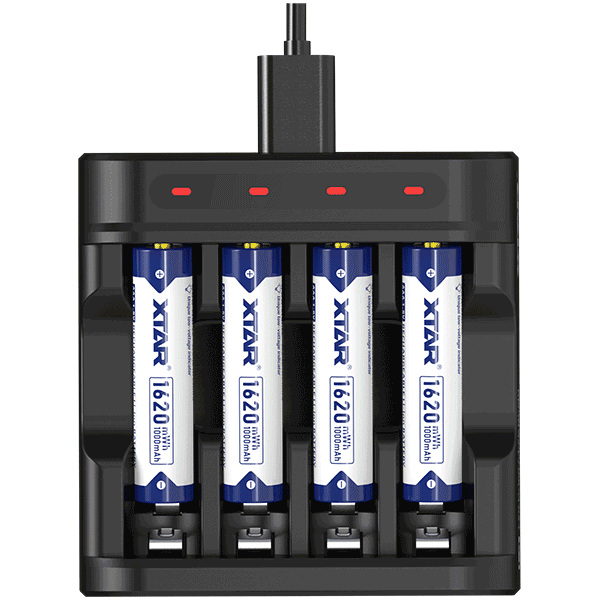

- LED charging status indicators per channel. Indicators also flash red (error) if non-rechargeable batteries are detected or battery is inserted incorrectly.
- 0V discharged cell wake-up function.
- Hollow out design allows airflow for good heat dissipation, and also makes it easy to remove batteries.
- Multi level protection
- Intelligent reverse polarity protection
- Over charge protection
- Over current protection
- Over voltage ptotection
- Dry battery detection
- Short circuit protection
Battery features:
- High true capacity: charge capacity 2500mAh, energy 4150mWh.
- Consistent and reliable 1.5V output.
- Super quick charging time 2.9 hours, with smart LED indicator.
- 1200 recharge cycles.
- Intelligent safety chip, anti-leakage and multiple protections.
- Low-voltage detection function and LED charging indicator:
- When voltage drops to 1.1V, low battery warning allows you to remove and recharge the battery and avoid sudden shut-off of devices.
- While charging, indicator flashes green to indicate charging, solid green to indicate fully charged/charge complete.
- Suitable for medium/high drain devices. Approximately 50% longer battery life compared to NiMH AA (dependent on device and conditions).
Please note: Charge with a suitable Lithium Ion charger only to ensure safe and optimal charging.
L4/AA4150 package includes:
- L4 charger
- USB Type-A to USB Type-C charging cable
- 4xAA XTAR 2500mAh/4150mWh LiIon batteries

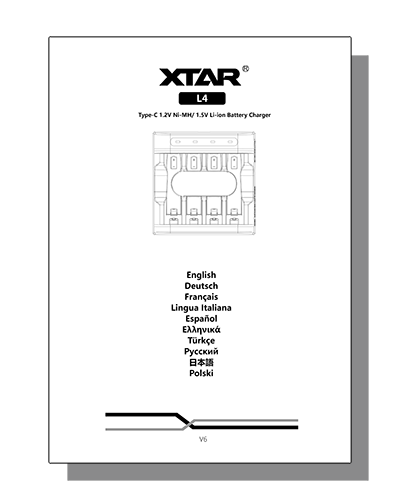

- Manual
Optional Power supplies:
SHARE:
Selling Unit | EACH |
---|---|
Model No | L4/AA4150 |
Brand |
![]() |
Description | USB Type-C input automatic four-channel 1-4 cell LiIon/NiMH AA/AAA battery charger. Includes 4xAA XTAR 2500mAh/4150mWh LiIon batteries. |
Size | 0.5A |
Width | 76.5mm |
Height | 27.6mm |
Length / Breadth / Depth | 76mm |
Weight | 51g |
Categories |
Battery Chargers / Analysers / Testers Lithium Ion/Polymer Chargers Consumer LiIon Chargers Lithium Ion Single Cell Chargers RC Hobby Chargers XTAR Battery Chargers XTAR Chargers with Batteries |

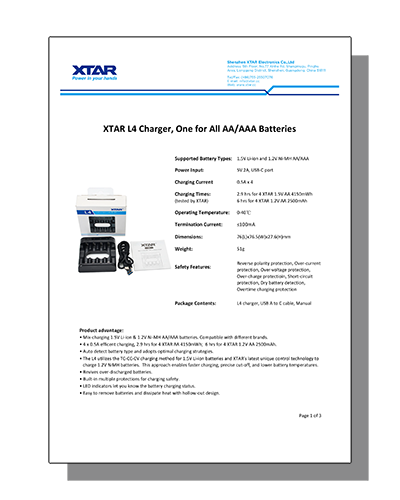

Data Sheet |
![]() ![]() |
