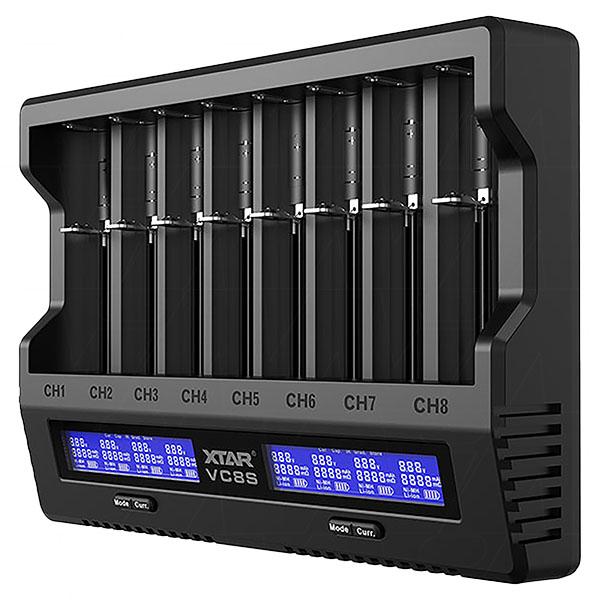

XTAR VC8S-KIT

XTAR VC8S LiIon/NiMH battery charger featuring:

• Charges 1 to 8 cells:
  • 3.6V/3.7V LiIon cells in sizes 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 22650, 25500, 26650 as well as 20700, 21700
  • 1.2V NiMH cells in sizes AAA, AA, A, SC, C
• Manually select charging current settings from 0.25A, 0.5A, 1A, 2A or 3A* (available if using a PD45W adaptor, and only for one slot from CH1-CH4 and 1 slot from CH5-CH8).

• Intelligent optimal charging current selection based on number of batteries, battery internal resistance, battery type and input power.
• Storage mode to ensure long term battery storage health
• Grading mode (CH 1-4) tests real battery capacity - Charge-Discharge-Recharge program
• Higher battery recovery rate with XTAR's newest technology to recover over-discharged batteries to reduce disposal and replacement rates.
• Easy to Read LCD screen with real time charge status for charge, grading & storing modes
• Multiple levels of protection
  • Intelligent detection
  • Auto shut off
  • Reverse polarity protection
  • Over charge protection
  • Over current protection
  • Over voltage ptotection
  • Short circuit protection
  • Soft start

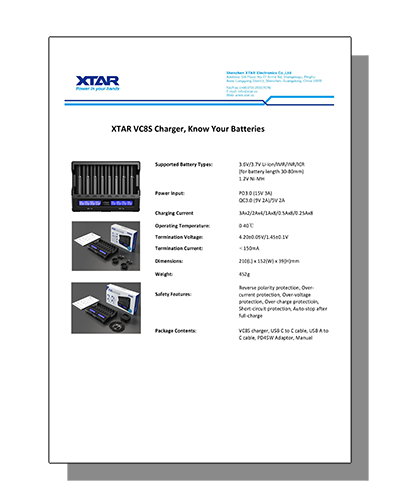

Charging Parameters:

• Input (USB Type-C): PD3.0 15V @ 3A (recommended) and QuickCharge 3.0 5V @ 2.0A, 9V @ 2A
• Output:
  • 3.0A Constant Current x 2 cell
  • 2.0A Constant Current x 4 cells
  • 1.0A Constant Current x 8 cells
  • 0.5A Constant Current x 8 cells
  • 0.25A Constant Current x 8 cells
• Cut-off Voltage:
  • LiIon: 4.2V±0.05V
  • NiMH: 1.45V±0.1V
• Operating temp: 0-40°C

The VC8S comes with:

• VC8S Charger
• USB Type-A to USB Type-C Charge Cable
• USB Type-C to USB Type-C Charge Cable

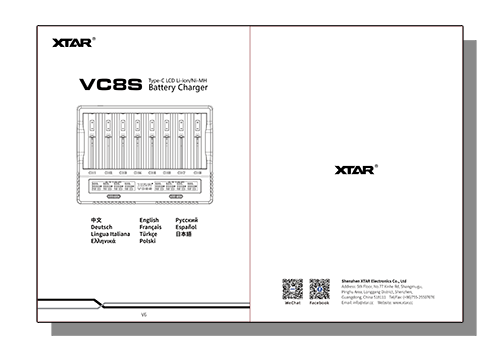

• Product Manual

Optional Power supplies:

Enecharger Quick Charge AC USB Power Supply

Enecharger Quick Charge DC USB Power Supply
