XTAR VP4L PLUS

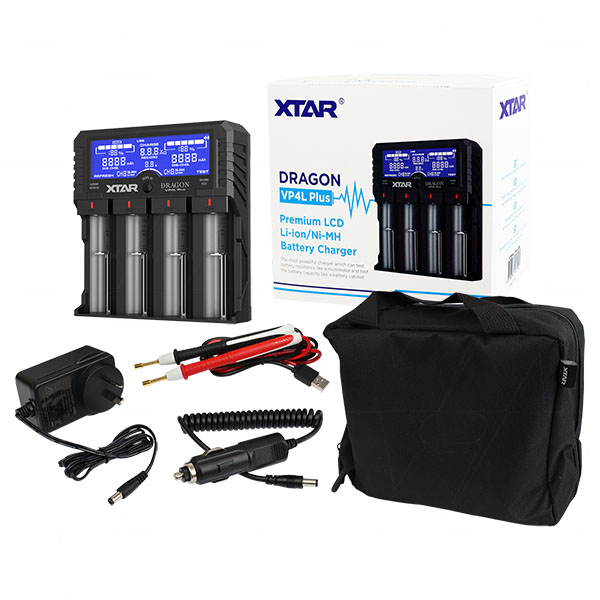

XTAR VP4L Plus DRAGON intelligent multi-functional LiIon & NiMH battery charger featuring:

• Battery test mode - Charge > Discharge > Charge. Accurately test real capacity of your batteries.
• Battery refresh mode - Discharge > Charge. Eliminate memory effect of NiMH batteries.
• Powerbank (USB output charging) - 2.4A max output suitable for charging 5V USB devices.

Smart Battery Charging: compatible with almost all sizes of single cell LiIon or NiMH/NiCd batteries.

• 3.6V/3.7V lithium ion cells in sizes 10440, 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650, 32650.
• 1.2V NiMH/NiCd cells in sizes AAAA, AAA, AA, A, SC, C, D.
• 11.1V/3S battery packs, balance charging via standard 4-pin socket.

Battery Voltage & Resistance Test: Using the test function with the included test cables, determine battery's internal resistance - lower internal resistance can equal better performance.

Battery Actual Capacity Test: Accurately test the actual capacity of batteries as a battery grading machine to determine if the capacity is overrated.

Other Features:

• Three user selectable charge current options: 0.5A, 1.0A or 2.0A.
• Charge up to four 32650/D size batteries at the same time.
• Can charge protected 20700/21700 cells.
• Automatically saves up to 64 test records of discharging and charging capacity after each TEST cycle.
• Select REFRESH mode to eliminate any existing memory effect in NiMH batteries.
• 2.4A max output current for USB output to charge devices like mobile phones; charge single cell batteries, battery packs and USB devices SIMULTANEOUSLY when the VP4L Plus is connected to mains power.

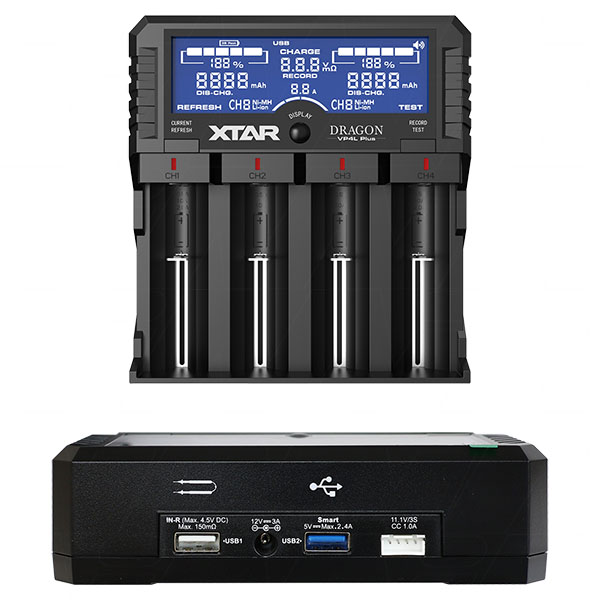

• High quality LCD screen displays heaps of information: charging current, battery status, battery capacity percentage, battery types and channels, battery voltage and resistance and much more.
• Alerts sound when there is an error or charging/test process is complete.
• 0V battery activation.
• Reverse polarity and short circuit protection, bad battery detection, over current protection, over voltage protection, overcharging timeout protection.
• 2 years warranty.

Charging Parameters:

• Input: 12VDC 3.0A
• Constant Current Output:
  • CH1 & CH4: 0.5A/1.0A/2.0A
  • CH2 & CH3: 0.5A/1.0A
• Cut-off Voltage:
  • LiIon: 4.2V±0.05V
  • NiMH/NiCd: 1.45V±0.1V
• USB output: 5VDC 2.4A max.
• 11.1V/3S battery pack charging: 1000mA
• Operating temp: 0-40°C
