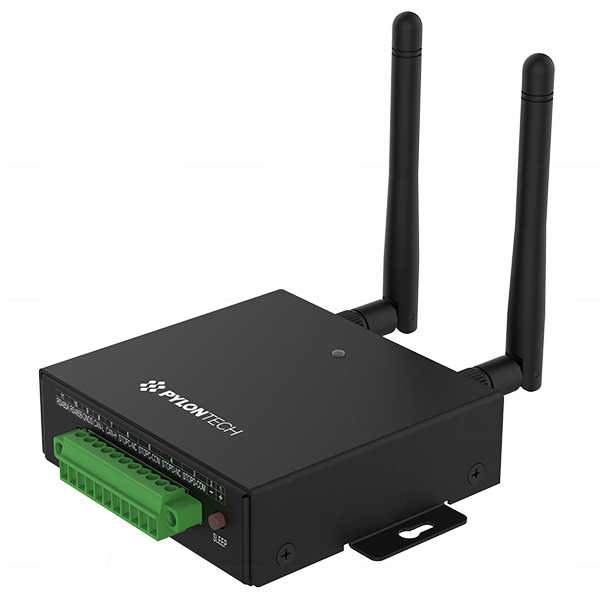

Pylontech KIT-C1

The KIT-C1 communications box converts wireless communication to wired communication for battery models that lack physical communication interfaces.

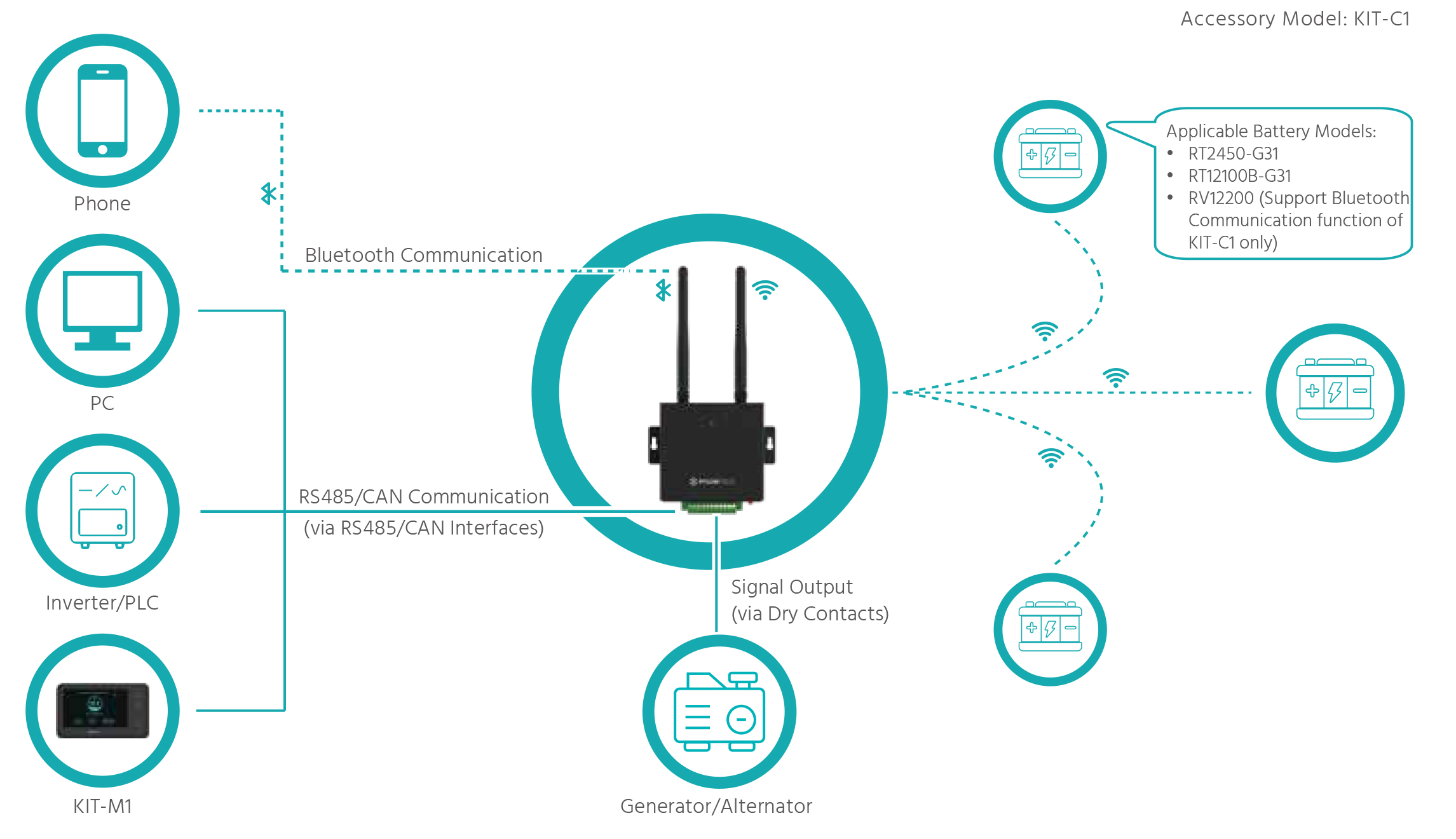

For different battery models, the KIT-C1 can provide some, or all of the following functions:

• Collect and exchange battery information with external devices via the RS485/CAN interface.
• Enable external devices to control battery charging and discharging through dry contact signals.
• Transmit Bluetooth signals through antennas, which is especially useful for batteries in confined spaces or over long distances.

Communication Interface Expansion

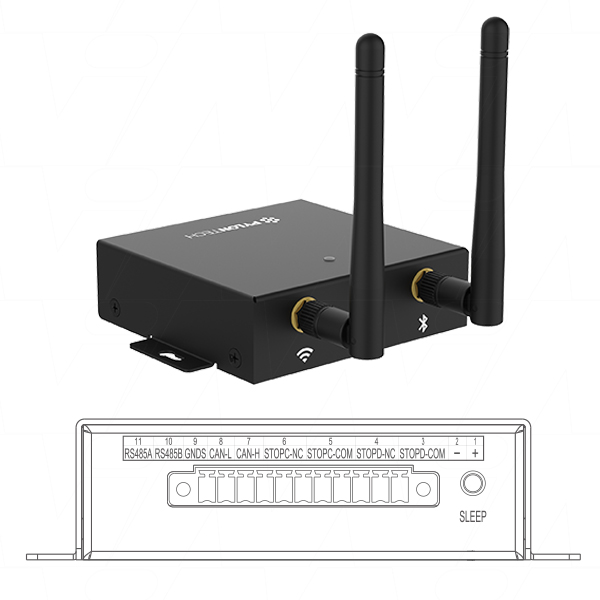

Two communication ports at the bottom allow batteries without external communication interfaces to utilise RS485/CAN communication.

“Charging/discharging Will Stop Soon” Signal Warning
Two sets of dry contacts output warning signals when the battery connected to a network is about to stop charging or discharging.

Extended Application Scenarios

The KIT-C1 is compact, easy to install, and offers optional antennas of varying lengths, allowing it to assist batteries in transmitting wireless communication signals across different scenarios.

The KIT-C1 can be powered either by the battery, or an external power supply and is currently compatible with Pylontech and Victron Energy protocols.

Compatible Models:
The KIT-C1 is suitable for use with the RT12100B-G31, RT2450G31, and RV12200* models.
*Note: The RV12200 model supports Bluetooth only and does not support RS485/CAN communication to inverters, etc.
