Bambach 26704RD
SafeX125 LSZH (Low Smoke Zero Halogen) flexible single core tinned copper cable - 10mm˛, 140/0.30, current rating 80A, red
26704RD 10mm² conductor CSA, 140/0.30 (no. strands/mm), current rating 80A.
SafeX125 LSZH (Low Smoke Zero Halogen) flexible single core tinned copper cable.
Application:
Wiring of switchboards, control, general wiring, instrumentation and communication systems. Used where LSZH (Low Smoke Zero Halogen) is needed and where higher current rating are required.
Benefits
- Cross-Linked: Insulation is fully cross-linked to enhance performance
- Low Smoke: Reduced smoke emission in a fire situation
- Low Toxicity: Reduced toxicity in a fire situation
- Non-Corrosive: No corrosive gas emission in a fire situation
- Flame Retardant: Flame retardant, low fire load and non flame propagating
- Extreme Flexibility: Class 5 flexible conductor stranding
- Easy to Solder: Tinned copper conductors for easy adhesion
Features
- Up to 50% higher current ratings compared to PVC flexible cable
- Reduced overall diameters compared with PVC flexible cable
- Cross-linked insulation forms a stronger structure and does not melt or flow when heated
- Oxygen free tinned copper for high conductivity soldered connections and corrosion protection
- Operating temperature: -40 to 125°C
SHARE:
| Selling Unit | MTR |
|---|---|
| Model No | 26704RD |
| Brand |
|
| Description | SafeX125 LSZH (Low Smoke Zero Halogen) flexible single core tinned copper cable - 10mm˛, 140/0.30, current rating 80A, red |
| Categories |
Portable Power Product Battery Parts & Tools Battery Assembly PCB-Pins Tags Stacking Cups Washers Snaps Nipples Connectors & Terminal Pins Bootlace Terminals & Cables Bambach |

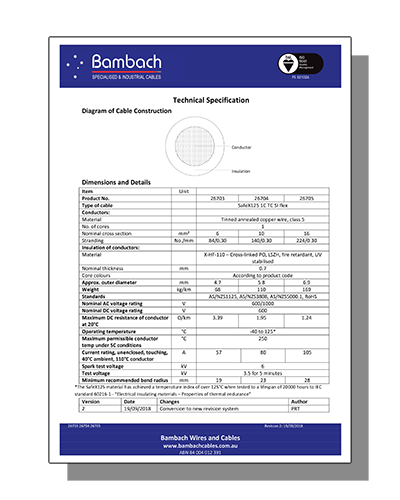

| Data Sheet |
|
