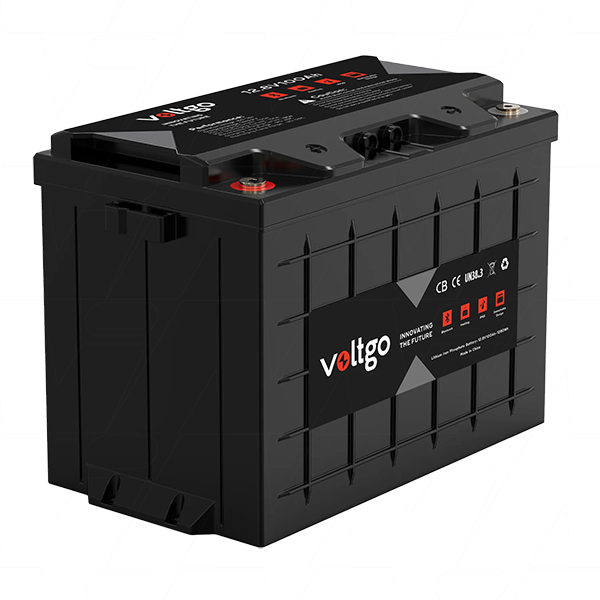

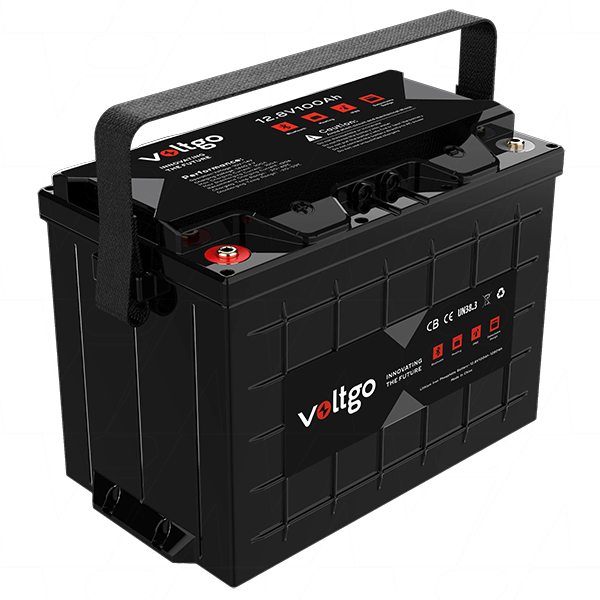

VoltGo VLRV1280A
12.8V 100Ah 1280Wh LiFePO4 IP65 rated battery with Bluetooth and scalability up to 5.12kWh systems
The VoltGo VLRV1280A is an advanced Lithium Iron Phosphate (LiFePO4) battery module with superior cycle life, designed for use in stand-alone or multi-module applications.
Featuring a high quality flame retardent ABS casing, rated to IP65 and suitable for use in Marine and high moisture prone environments, the VoltGo modules provide a lightweight and maintenance free alternative to traditional lead acid deep cycle batteries in small stationary off-grid solar power systems, to mobile applications such as 4x4's, caravans and marine vessels.
The advanced safety features include an intelligent BMS with protections against short circuit, over/under voltage and over/under temperature fluctuations, all encased in flame retardant ABS casing with an in-built aerosol fire suppression system as a final line of defence to ensure safe operation and swift fault mitigation.
Capable of being used individually, or expandable into systems of up to 4 in series OR 4 in parallel, the VoltGo VLRV1280A is adaptable to suit varied system voltages and sizes, with it's intelligent BMS taking care of the system performance.
Bluetooth output provides real-time battery parameter monitoring from your smart device to ensure your system is working efficiently.
Important Information: SERIES OR PARALLEL CONNECTION CAPABLE
This VoltGo VLRV1280A Lithium Iron Phosphate battery can be connected in up to 4 in series (4S) OR 4 in parallel (4P) *See Product User Manual or Datasheet for more information.
Superior Service life
VoltGo's Elite Series batteries boast an outstanding service life, ensuring they provide reliable, hassle-free power to your application for years to come.
With an industry-leading 6000 service cycles (0.5C @ 25°C 80% DoD), these batteries outlast traditional Lead Acid/AGM batteries by more than 10 times, and outperform most lithium products on the market to make VoltGo an effective solution for long term use.
Let Your Battery Talk to You
No more guesswork! Connect to your battery from your phone or tablet for real-time monitoring of your battery's status, including voltage, state of charge, consumption, health and cycle count.
IP65 Water and Dust Resistant
Ensure peace of mind during your next fishing or water sports adventure. The VLRV1280A is IP65 protected against dust and offer significant protection against water splashes and sprays, making them suitable for nearly any application.
Intelligent BMS
Worry less about your battery with the smart battery management system, which offers protection against short circuit, over/under voltage and over/under temperature fluctuations. When multiple modules are used in a system, the self-balancing function also keep all batteries working together to extended service life.
Fire Protections
VoltGo batteries lead the way in safety with their UL94 V-0 rated flame retardent cases, and in-built aerosol fire suppression system as the last line of defence to ensure safe operation and swift fault mitigation.
Superior Construction Quality
The simple maintenance free design allows for a houses a 4S2P battery construction, Bluetooth capable BMS within the IP65 rated and impact resistant rugged ABS casing. The detachable lid allows for battery servicing / repair should the need arise*.
*performed by qualified service agents only to avoid voiding warranty
All Season Use
When temperatures drop below 0°C and your battery is connected to external power, VoltGo's heating capabilities kick in to keep your battery between 0°C and 45°C, to enable charging and discharge at temperatures as cold as -20°C (-4°F.)
Specifications:
| Voltage (V) | 12.8V |
|---|---|
| Capacity (Ah) | 100Ah |
| Watt Hour (Wh) | 1280Wh |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | >6000 cycles (0.5C@25°C, 80% DOD) |
| Max. continuous discharge current | 100A |
| Max. PEAK discharge current | 160A (30 seconds) |
| Discharge cut-off voltage | 10V |
| Charge Voltage | 14.0V - 14.4V |
| Max. continuous charge current | 100A |
| Operating discharge temperature | -20°C to +55°C |
| Operating charge temperature | -20°C to +45°C (charger engages heater until battery reaches 0°C and then begins charging) |
| Storage temperature | -20°C to +45°C |
| Protections | Short Circuit, Over Charger/Discharge, Over/Under Temperature |
| Ingress Rating | IP65 rating |
| Series connection allowed* | YES - UP to 4S* |
| Parallel connection allowed* | YES - Up to 4P* |
| Case structure | UL94 5VA flame retardent serviceable ABS Case design |
| Compliances | UL1973, UN38.3, IEC62619 |
| Warranty | 10 years |
* No Series AND Parallel Connection Allowed at the same time.
Recommended Chargers:
| Selling Unit | EACH |
|---|---|
| Model No | VLRV1280A |
| Brand |
|
| Description | 12.8V 100Ah 1280Wh LiFePO4 IP65 rated battery with Bluetooth and scalability up to 5.12kWh systems |
| Application | Lead Acid Replacement, Off-Grid Systems, Caravan/RV Storage, Industrial Market Applications, Deep Cycle |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 12.8V |
| Watt Hour | 1280Wh |
| Nominal Capacity | 100Ah |
| Maximum Continuous Discharge Current | 100A |
| Termination | M8 |
| Size | 4S2P |
| Width | 330mm |
| Height | 220mm |
| Length / Breadth / Depth | 172mm |
| Weight | 11.2kg |
| Categories |
IEC62619 Mobile Applications IEC62619 Stationary Applications IEC62619 Marine Applications Lithium Ion Batteries Lithium Iron Phosphate Battery Packs 12 Volt Series LiFePO4 VoltGo VoltGo Elite Lithium Batteries Lithium Iron Phosphate Modules |
| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
This product is certified to UN38.3
This battery has been tested & complies with the UN Model Regulation, Manual of Test & Criteria, Part III, Subsection 38.3
Read the UN38.3 Information and FAQ's Document.
This Battery Pack has been tested and complies with IEC 62619:2022
To view all compliant batteries, please click here
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
VoltGo App Compatible
This battery is compatible with the VoltGo Bluetooth App.
The Voltgo Bluetooth app allows users to monitor Voltgo’s batteries via Bluetooth, providing real-time readings of the battery voltage, current, and temperature.
