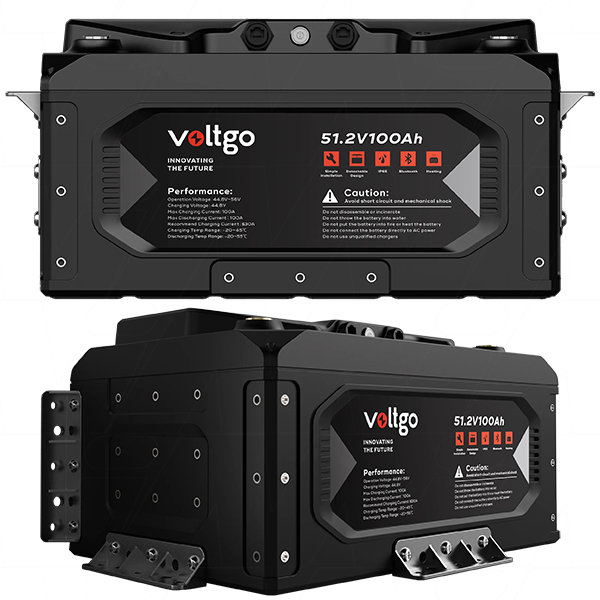

VoltGo VLRV5120C
51.2V 100Ah 5120Wh LiFePO4 IP67 rated battery with Bluetooth/CAN/RS485 Output and scalability up to 81.92kWh systems
The VoltGo VLRV5120C is a 51.2V 100Ah advanced Lithium Iron Phosphate (LiFePO4) high capacity battery module with superior cycle life, designed for use in stand-alone or multiple-module applications.
Featuring a high quality flame retardent ABS casing, rated to IP67 and suitable for use in Marine and high moisture prone environments, the VoltGo modules provide a lightweight and maintenance free alternative to traditional lead acid deep cycle batteries in small stationary off-grid solar power systems, to mobile applications such as 4x4's, caravans and marine vessels. The unique incorporated mounting plates provide a number of diverse installation options whilst offering strengthened battery stability.
When temperatures drop below 0°C and your battery is connected to external power, VoltGo's heating capabilities kick in to keep your battery between 0°C and 45°C, to enable charging and discharge at temperatures as cold as -20°C
Capable of being used individually, or expandable into systems of up to 16 in parallel, the VoltGo VLRV5120C is adaptable to suit varied system sizes, with it's intelligent BMS taking care of the system performance.
With both Bluetooth output for battery parameter monitoring from your smart device, to the on-board RS485/CAN ports to integrate into larger systems via a Victron GX device, the VoltGo modules provide real-time monitoring and control to ensure optimum performance.
Easy System Expansion

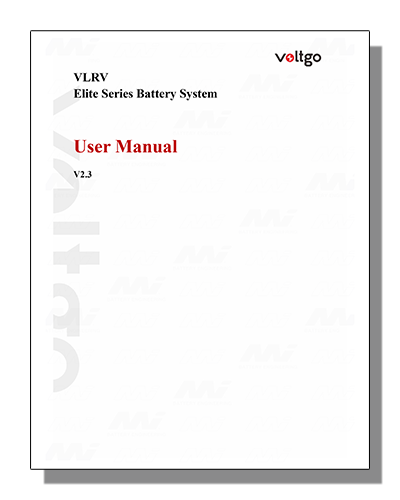

This VoltGo VLRV5120C Lithium Iron Phosphate battery can be connected in up to 16 in parallel (16P) - NO SERIES Connection allowed. *See Product User Manual or Datasheet for more information..
Let Your Battery Talk to You
No more guesswork! Connect to your battery from your phone or tablet for real-time monitoring of your battery's status, including voltage, state of charge, consumption, health and cycle count.
Intelligent BMS
Worry less about your battery with the smart battery management system, which offers protection against short circuit, over/under voltage and over/under temperature fluctuations. When multiple modules are used in a system, the self-balancing function also keep all batteries working together to extended service life.
Fire Protections
VoltGo batteries lead the way in safety with their UL94 V-0 rated flame retardent cases, and in-built aerosol fire suppression system as the last line of defence to ensure safe operation and swift fault mitigation.
Smart Integration
The top mounted panel features an ON/OFF switch, State of Charge indicator, Alarm and Function LEDs. The 2 CAN/RS485 Comms Ports integrate your VoltGo batteries into existing control/monitoring systems, via a Victron Energy GX device*, to give full visibility and tracking. *The VRLV2560 and VRLV5120 series batteries support communication with Victron inverters via Cerbo GX and Victron Energy Ekrano GX by Victron Energy VE.Can to CAN battery cannot directly plug into the Victron inverter
SMART-GO Fastening System
Removable handy brackets come fixed to the batteries for use as handles during transport. VoltGo batteries come standard with numerous nutserts fitted within the case to utilise the included brackets and fish plates to securely fasten your battery to the floor, wall, or to other batteries when connected together. Expandable up to 16 batteries in Parallel, the VLRV5120C's intelligent BMS ensures all modules within the system are balanced and working together.
IP67 Water and Dust Resistant
Ensure peace of mind during your next fishing or water sports adventure. The VLRV5120C is IP67 protected against dust and offer significant protection against water splashes and sprays, making them suitable for nearly any application.
Superior Construction Quality
The simple maintenance free design allows for a houses a 16S2P battery construction, Bluetooth capable BMS within the IP67 rated and impact resistant rugged ABS casing. The detachable lid allows for battery servicing / repair should the need arise*. *performed by qualified service agents only to avoid voiding warranty
Specifications:
| Voltage (V) | 51.2V |
|---|---|
| Capacity (Ah) | 100Ah |
| Watt Hour (Wh) | 5120Wh |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | >6000 cycles (0.5C@25°C, 80% DOD) |
| Max. continuous discharge current | 100A |
| Max. PEAK discharge current | 150A (3 seconds) |
| Discharge cut-off voltage | 44.8V |
| Charge Voltage | 56V - 57.6V |
| Max. continuous charge current | 100A |
| Operating discharge temperature | -20°C to +55°C |
| Operating charge temperature | -20°C to +45°C (charger engages heater until battery reaches 0°C and then begins charging) |
| Storage temperature | -20°C to +45°C |
| Protections | Short Circuit, Over Charge/Discharge, Over/Under Temperature |
| Ingress Rating | IP67 rating |
| Series connection allowed* | NO |
| Parallel connection allowed* | YES - Up to 16P* |
| Case structure | UL94 V-0 flame retardent serviceable ABS Case design |
| Compliances | UL1973, UN38.3, IEC62619 |
| Warranty | 10 years |
* No Series Connection Allowed
Recommended Chargers:
Accessories: (Click to view full range)
| Selling Unit | EACH |
|---|---|
| Model No | VLRV5120C |
| Brand |
|
| Description | 51.2V 100Ah 5120Wh LiFePO4 IP67 rated battery with Bluetooth/CAN/RS485 Output and scalability up to 81.92kWh systems |
| Application | Lead Acid Replacement, Off-Grid Systems, Caravan/RV Storage, Industrial Market Applications, Deep Cycle |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 51.2V |
| Watt Hour | 5120Wh |
| Nominal Capacity | 100Ah |
| Maximum Continuous Discharge Current | 100A |
| Termination | M8 |
| Size | 16S2P |
| Width | 460mm |
| Height | 247mm |
| Length / Breadth / Depth | 320mm |
| Weight | 41000g |
| Categories |
IEC62619 Mobile Applications IEC62619 Stationary Applications IEC62619 Marine Applications Lithium Ion Batteries Lithium Iron Phosphate Battery Packs 48 Volt Series LiFePO4 VoltGo VoltGo Elite Lithium Batteries Lithium Iron Phosphate Modules |

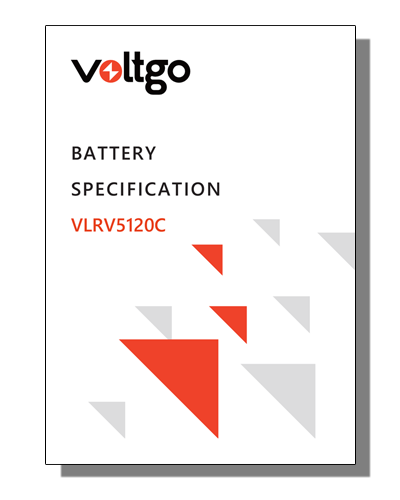

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
This product is certified to UN38.3
This battery has been tested & complies with the UN Model Regulation, Manual of Test & Criteria, Part III, Subsection 38.3
Read the UN38.3 Information and FAQ's Document.
This Battery Pack has been tested and complies with IEC 62619:2022
To view all compliant batteries, please click here
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
VoltGo App Compatible
This battery is compatible with the VoltGo Bluetooth App.
The Voltgo Bluetooth app allows users to monitor Voltgo’s batteries via Bluetooth, providing real-time readings of the battery voltage, current, and temperature.
