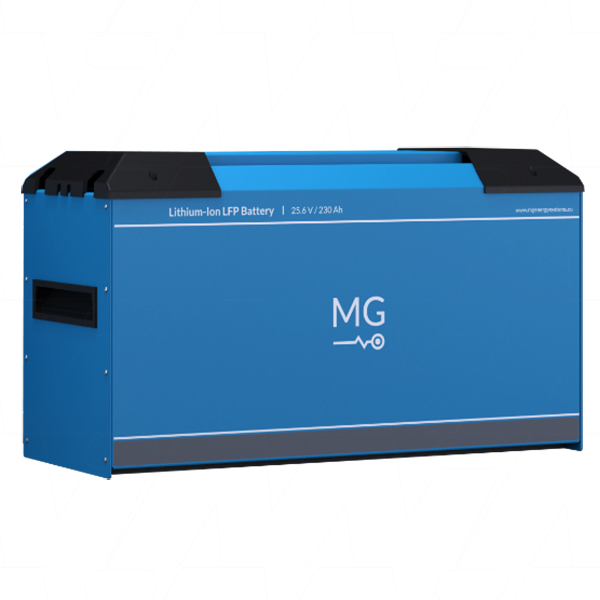

25.6V 230Ah 5888Wh Lithium Iron Phosphate (LiFePO4) Battery Module with M12HV Connector for systems up to 470Vdc

MG Energy Systems LFP Series - Next Generation LiFePo4 chemistry

The LFP battery series is based on prismatic cells with next generation LiFePO4 chemistry. Using battery cells with this robust chemistry provides a battery module with a high energy density and extended cycle life. Battery safety is improved, thanks to the thermal and chemical stability of this particular chemistry. The high charge and discharge capability makes this battery suitable for high power applications.

25.6V 230Ah 5888Wh 8S1P LiFePO4 Battery Module - High Voltage Model

  • Lead-acid replacement
  • Extended cycle life
  • Compact design
  • Plug and Play
  • Easy installation
  • High charge and discharge rate
  • NMEA2000 compatible

Specifications:

  • Cycle life: >3500 cycles (80% DoD) @ 25Deg Celcius to EoL of 70% of initial capacity.
  • Continuous discharge current: 280A
  • Max. discharge current: 230A
  • End of discharge voltage: 21.6V
  • Charge voltage: 28.4V - 29.2V (28.2V recommended)
  • Max. cont. charge current: 280A
  • Operating Discharge temperature: -20°C to +55ºC
  • Operating Charge temperature: 0°C to +45ºC
  • Storage temperature: -20°C to +45ºC
  • Humidity (non-condensing): max. 95%
  • Protection class: IP40
  • Cooling: Air, Convection
  • BMS passive balancing with integrated slave BMS
  • This M12 HV Version is suitable for systems with up to 30 Modules in series (470Vdc)
    • More than Six (6) requires design approval.
  • Up to Ninety Six (96) Parallel Connections Allowed

Important Information:

This MG Energy 25.6V LFP Battery can be connected up to 96 Batteries in Parallel configurations. Up to Thirty (30) batteries in series connection (24VDc - 470VDc) are allowed for this model. More than Six (6) requires design approval.

External BMS:
Systems using up to Four (4) batteries in series require the use of a MG Master LV Battery Management Controller. View suitable BMS's

Systems using five (5) batteries in series require the use of a MG Master HV Battery Management Controller View suitable BMS's

Fuses:
300A fuse inside battery. Fuses can be replaced with dummy fuses for high power applications. The battery will require external fuses in these cases.

*See Product Manual or Datasheet for more information and full specifications.

Product Supplied With:
M12 CANBus comms connection.

Applications:

The LFP series is designed for use in a large range of applications such as mobile, marine and off-grid. For example to power electric motors for hydraulic power packs or electric-hybrid propulsion systems.

Easy Installation:

Combining the LFP series batteries with the MG Master LV or MG Master HV creates a compact system with reduced wiring and external components. The MG Master LV combines battery monitoring and control, DC distribution, fuse box and shunt in one device which saves installation time and space.

Safety:

Each battery module comes with an integrated battery management system (BMS). This is an intelligent electronic module (slave BMS), that measures all cell voltages and temperatures to control balancing on both battery cell and module level. The battery modules communicate by a galvanic isolated CAN-Bus with the MG Master LV or HV (master BMS), which collects and monitors the status of all battery modules. If the measured values from a battery module exceed the limit, the MG Master will automatically take action to protect the connected battery modules.

Battery Management Controllers:

Protecting, monitoring and controlling a battery system is very important to create a safe, reliable and easy-to-use system. The MG Master LV or HV is the safety and control unit of the battery system. It protects the connected battery modules against over-charging, over-discharging, over-temperature, under-temperature and controls the balancing of the battery cells. Besides a safety funtion, the MG Master LV or HV monitors and tracks other important parameters to give insight in the battery status and energy consumption. MG's battery system CAN-bus protocol can be used to communicate with other equipment and multi functional display's (MFD's) by NMEA2000 and web interface. The MG Master LV and HV ensure an easy and proper installation. Thanks to the built-in safety components a reliable installation is guaranteed.

Energy Storage Systems:

System flexibility is one of the main key features of all MG products. Combining LFP series batteries together with one of the Master BMSs creates a powerful system for a complete range of applications. Redundant systems can be made by connecting multiple Master BMSs in parallel to increase system reliability and capacity.


SHARE:
Selling Unit EACH
Model No MGLFP242230-M12HV
Brand MG Energy brand logo
Description 25.6V 230Ah 5888Wh Lithium Iron Phosphate (LiFePO4) Battery Module with M12HV Connector for systems up to 470Vdc
Application Automotive/Marine/RV Auxilliary Battery Banks, Off-Grid & Self Consumption Solar, UPS, Peak Shaving
Chemistry Lithium Iron Phosphate (LiFePO4)
Voltage 25.6V
Watt Hour 5888Wh
Nominal Capacity 230Ah
Maximum Continuous Discharge Current 230A
Termination M8 Stud (Max. 20Nm)
Size 8S1P
Width 193mm
Height 294mm
Length / Breadth / Depth 517mm
Weight 41000g
Categories IEC62619 Mobile Applications
IEC62619 Stationary Applications
IEC62619 Marine Applications
Lithium Iron Phosphate Battery Packs
24 Volt Series LiFePO4
MG LFP Series
Lithium Iron Phosphate Modules

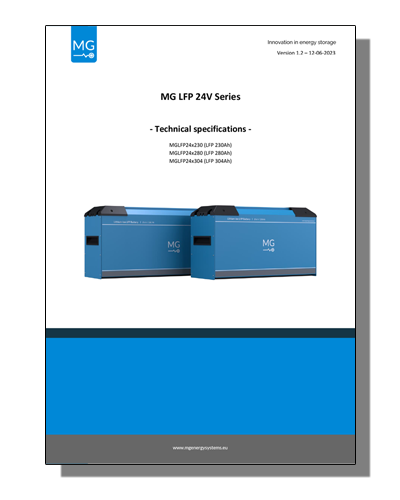

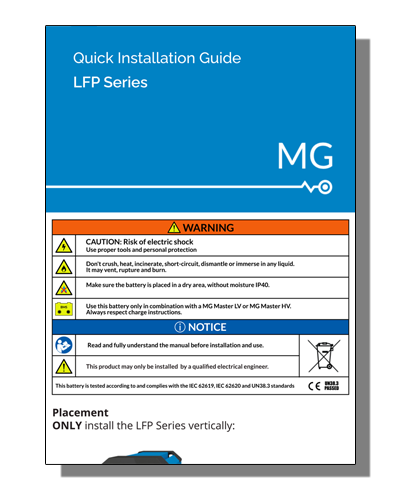

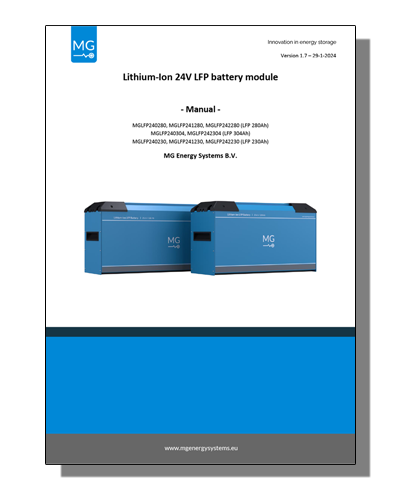

Data Sheet Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

AS/NZS 3001.2.2022 standard approved logo

This Battery Pack has been tested and complies with IEC 62619:2022

To view all compliant batteries, please click here

Shipping restrictions Class 9 Dangerous Goods icon

SHIPPING RESTRICTIONS APPLY

Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.

Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
