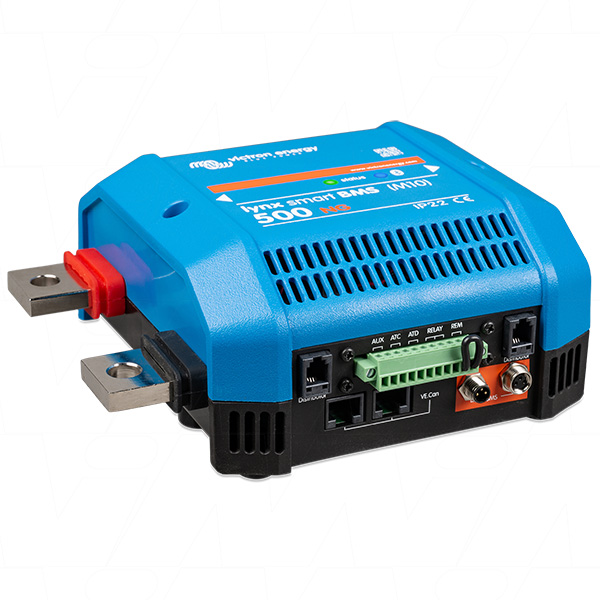

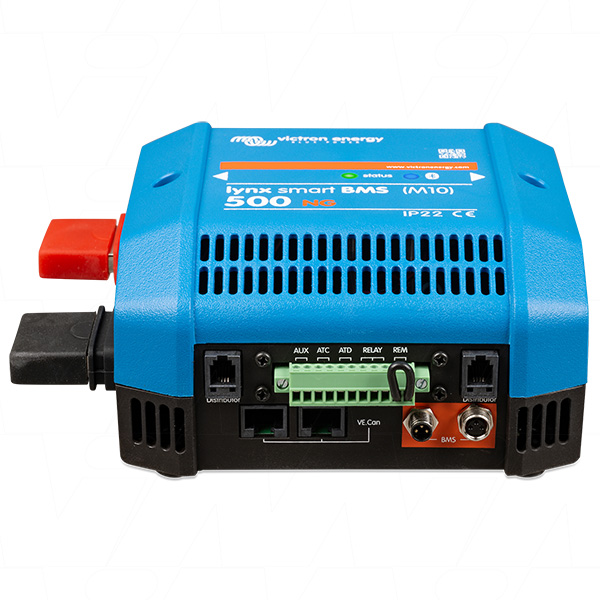

Lynx Smart BMS 500 NG Series (M10 Bolts) For use with Smart Lithium NG Series Batteries

The Lynx Smart BMS NG is a dedicated Battery Management System (BMS) designed specifically for the Victron Lithium NG batteries.

These batteries utilise Lithium Iron Phosphate (LiFePO4) technology and are available in 12.8 V, 25.6 V and 51.2 V variants with various capacities. They can be configured in series, parallel, and series/parallel arrangements, allowing for the creation of battery banks with system voltages of 12V, 24V , or 48V. The maximum number of batteries in a single system is 50, enabling a maximum energy storage of 192kWh in a 12V system and up to 384kWh in a 24V and 48V system. For comprehensive details about these batteries, visit the Victron Lithium NG battery product page.

Out of the various BMSes available* for the all new Lithium NG batteries, the Lynx Smart BMS NG is the most feature-rich and complete option and integrates seamlessly with other M10 products in the Lynx Distributor system. It is available in 500 A (M10) and 1000 A (M10) versions.

Built-in 500 A or 1000 A contactor:

  • Available in 500 A (M10) and 1000 A (M10) versions.
  • Acts as a secondary safety system to protect the battery in case primary controls (ATC, ATD and/or DVCC) fail
  • Suitable as a remote controllable main system switch.

Pre-charge circuit:

  • Prevents high inrush currents when connecting capacitive loads like inverters
  • Eliminates the need for external pre-charging devices.

Monitoring and control

  • Bluetooth connectivity for monitoring and control via the VictronConnect App or VE.Can connectivity in combination with GX devices such as the Cerbo GX or Ekrano GX and the VRM portal.
  • Readout of cell voltages and temperatures also on GX devices and the VRM portal.
  • Built-in battery monitor provides data such as state of charge, voltage, current, historical data, status info and more in real time
  • Diagnostic at a glance with Instant Readout.

DVCC closed loop control as well as ATC/ATD contacts

  • Compatible Victron inverter/chargers, the Orion XS 12/12-50A DC-DC battery charger and solar charge controllers are automatically controlled via a connected GX device and DVCC.
  • ATC/ATD contacts can be used to control other chargers and loads that have a remote on/off port.

Programmable relay

  • Can be used either as an alarm relay (combined with the pre-alarm) or to control an alternator via its external regulator (ignition cable).
  • Features Alternator ATC mode for safe alternator disconnection before battery disconnects.

AUX terminal

  • Onboard auxiliary power supply (1.1 A @ system voltage) for powering specific loads (i.e. a GX device) post-BMS shutdown.
  • Automatic shutdown of BMS and AUX connection if no charge voltage detected within 5 minutes after a low voltage event.

VE.Can and NMEA 2000 data communication

  • Easy connection and communication with GX devices via VE.Can using a standard RJ45 network cable.
  • Integration into marine networks via NMEA 2000 protocol (requires a VE.Can to NMEA 2000 micro-C male cable).

Lynx Distributor fuse monitoring

  • Monitor fuse status of up to 4 connected Lynx Distributors via VictronConnect or GX devices.
  • Receive alarms in case of blown fuses.






SHARE:
Selling Unit EACH
Model No LYNX Smart BMS 500NG - M10
Brand Victron Energy brand logo
Original Brand Victron Energy LYN034160310
Description Lynx Smart BMS 500 NG Series (M10 Bolts) For use with Smart Lithium NG Series Batteries
Width 190mm
Height 180mm
Length / Breadth / Depth 80mm
Weight 1900g
Categories Power Products & Accessories
Battery Management & Monitoring
LYNX Range
Victron NG Series Lithium

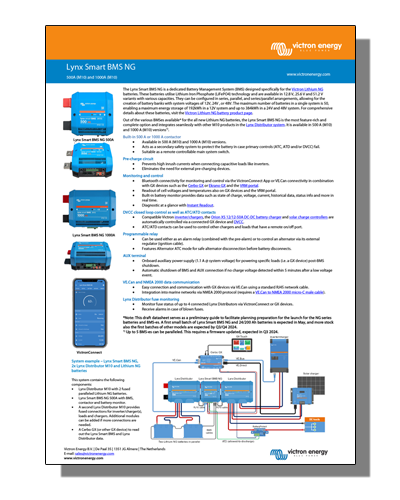

Data Sheet Datasheet PDF Thumbnail icon

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

Victron Connect app compatible

VictronConnect Compatible

VictronConnect lets you get live status information and configure any Victron Energy products via either Bluetooth or direct cable connection. Connect to Bluetooth equipped products, or non-Bluetooth equipped products using VE.Direct Bluetooth Smart Dongle. Connect directly to equipment using the VE.Direct to USB Interface (USB Type-A) or VE.Direct to Type C Interface (USB Type-C) cables.

Find out more about VictronConnect here, or download the App via these links. Click here to download the VictronConnect Manual.
