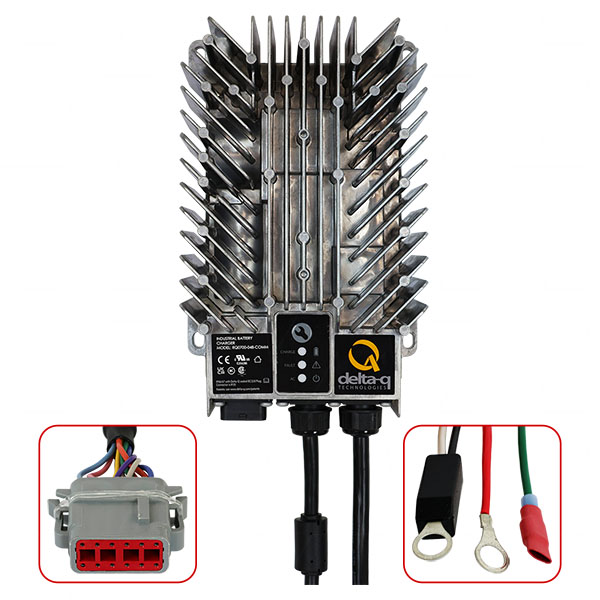

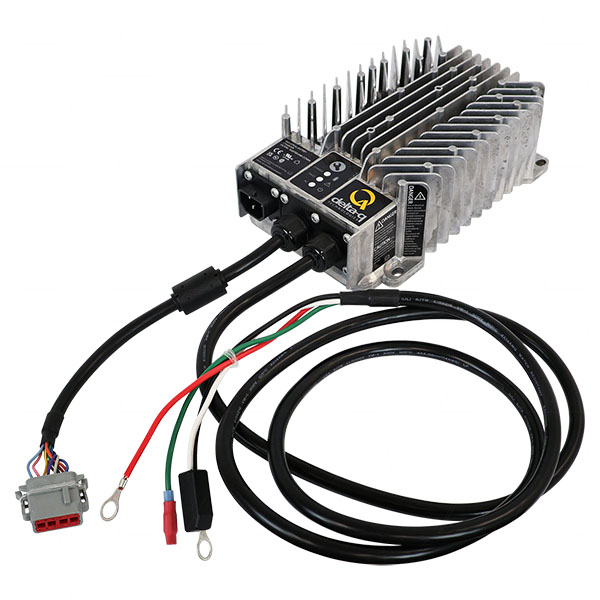

Delta-Q DQRQ700-48/15CAN
961-0003 48V 15A 700W Delta-Q RQ700 Series IP67 SLA / Li-Ion / LiFePO4 Battery Charger with CANBus
Delta-Q RQ700 Series are compact, rugged and highly efficient automotive grade battery chargers.
Designed for worldwide installation, they can optimally charge 24, 36 and 48 volt lead-acid and lithium-ion batteries. CAN bus communication (CANopen and J1939 protocols) allows for a BMS to control charging, and for vehicle and telematics integration. Suitable for light electric on-road vehicles, outdoor power equipment, pallet trucks, and other industrial vehicles.
Easy-to-Use Conntrol Panel
Intuitive user interface with three built-in LEDs indicating charging status, errors and faults; A push button to select or change the charge algorithms during machine manufacturing or in the field.
Locking AC Connector
To prevent accidental disconnection during charging
High Reliability
IP67 rated to protect against water and dirt ingress. Designed to withstand automotive shock and vibration
12V Auxilary Output
RQ700 offers 12V-400mA of auxilliary power for the operation of small loads such as BMS wake-up and telematics
Efficiency
Best in class power conversion efficiency compliant to latest CEC, DOE and NRCAN efficiency standards.
Global Standard Compliance
Compliance with North American, and European safety and EMC standards (FCC-B and UNECE R10) and touch-safe voltage regulations allows for easy integration into electric vehicles
Enhanced Protection
Extensive protection features, such as short circuit, output over-voltage, and over-temperature protections, ensure reliable and safe operation
CAN bus Communications
CANopen and J1939 protocols to interact with vehicle, telematics and lithium BMS. CAN bus can also update charger software, load chargin profiles, and download charge tracking and diagnostic information.
IMPORTANT: This Delta-Q battery charger requires a charge profile (algorithm) to be loaded prior to dispatch to ensure your battery is optimally charged. Master Instruments has access to Delta-Q's extensive library of charge profiles and can easily pre-program your charger to suit your specific system.
Requires AC Input Cable
Specifications:
DC Output | 51.2 VDC |
Max DC Output Voltage | 72 VDC |
Max DC Output Current | 15 A |
Max DC Output Power | 700 W |
Lithium Cells in Serries | 12 to 20 |
AC Input Range | 85 - 270 VAC |
Nominal AC Input Voltage | 120 - 240 VAC |
Nominal AC Input Frequency | 50 / 60Hz |
Max. AC Input Current | 7.5A |
Efficiency | 93% Peak Efficiency |
Ingress Rating | IP67 |
Operating Temperature | -40°C to +65°C |
Selling Unit | EACH |
---|---|
Model No | DQRQ700-48/15CAN |
Brand | |
Original Brand | Delta-Q 961-0003 |
Description | 961-0003 48V 15A 700W Delta-Q RQ700 Series IP67 SLA / Li-Ion / LiFePO4 Battery Charger with CANBus |
Application | Aerial work platforms, Fork lifts, floor care machines, utility vehicles, golf carts, electric motorcycles |
Chemistry | Lead Acid / Lithium Iron Phosphate / LiIon-LiPo |
Voltage | 48V |
Size | 15A |
Width | 150mm |
Height | 80mm |
Length / Breadth / Depth | 230mm |
Weight | 2800g |
Categories |
Battery Chargers / Analysers / Testers Lead Acid Battery Chargers 48V Battery Chargers Lithium Ion/Polymer Chargers Industrial LiIon/LiPo Capable Chargers Lithium Iron Phosphate Chargers LiFePO4 Type Chargers Delta-Q RQ700 Series Lead Acid Battery Chargers |

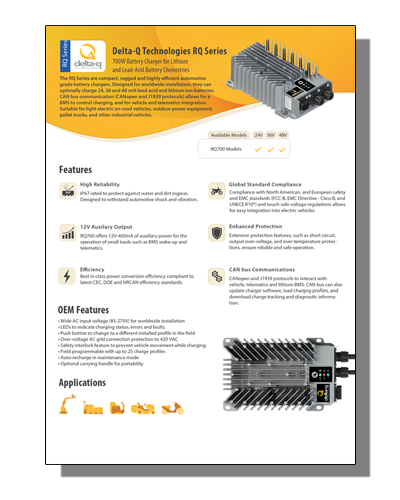

Data Sheet |
