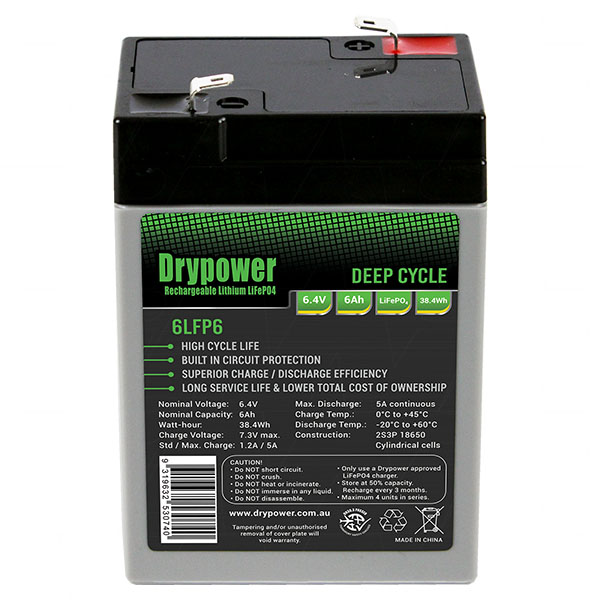

Drypower 6LFP6
High power 6.4V 6Ah lithium iron phosphate (LiFePO4) rechargeable battery
6V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement
2S3P-Cylindrical Construction
Specifications:
- Cycle life: >1500 cycles (100% DoD to 80% of original capacity) @ 25°C
- Max. continuous discharge current: 5A
- Charge voltage: 7.2V (7.3V Max)
- Max. cont. charge current: 5A
- Operating Discharge temperature: -20°C to +60ºC
- Operating Charge temperature: +0°C to +45ºC
- Storage temperature: -20°C to +45ºC
- Operating Humidity (non-condensing): 5%-85%
- Series Connection: Up to 4S
- Parallel Connection: Nil
Important Information - SERIES CONNECTION CAPABLE
This Drypower lithium iron phosphate battery can be connected in series up to 4S.
No parallel connection allowed.
*See product manual or datasheet for more information.
Recommended Chargers:
Enecharger Battery Guardian ICS1.5LF. 6V & 12V Battery Charger & Maintainer for LiFePO4 batteries.
SHARE:
| Selling Unit | EACH |
|---|---|
| Model No | 6LFP6 |
| Brand |
|
| Description | High power 6.4V 6Ah lithium iron phosphate (LiFePO4) rechargeable battery |
| Application | Caravan/RV/camping, mobility, marine, medical, solar, and more |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Voltage | 6.4V |
| Watt Hour | 38.4Wh |
| Nominal Capacity | 6Ah |
| Maximum Continuous Discharge Current | 5A |
| Termination | F2 (6.35mm Spade) |
| Size | 2S1P |
| Width | 70mm |
| Height | 101mm |
| Length / Breadth / Depth | 47.5mm |
| Weight | 360g |
| Categories |
Lithium Ion Batteries Lithium Iron Phosphate Battery Packs 6 Volt Series LiFePO4 Drypower Drypower Lithium Iron Phosphate Battery Packs Lithium Iron Phosphate Modules |

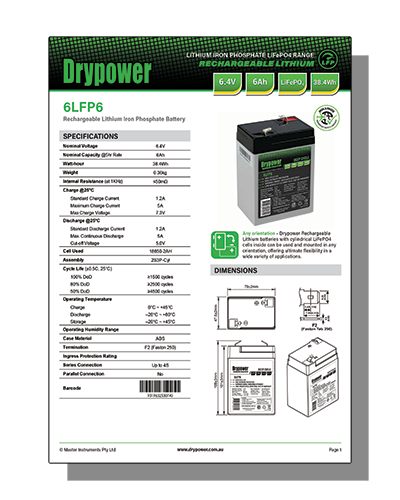

| Data Sheet |
|
Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account
This product is certified to UN38.3
This battery has been tested & complies with the UN Model Regulation, Manual of Test & Criteria, Part III, Subsection 38.3
Read the UN38.3 Information and FAQ's Document.
Features & Benefits
Long Service Life
>2000 cycles @100% DoD (25°C) to 80% of original capacity - longer service life than SLA to reduce maintenance costs.
High Energy Density - More Power p/kg
Higher total system capacity and superior utilisation (full 100% DoD) to reduce overall system size and footprint.
Robust Enclosure
Enclosed in IP5x (dust resistant) or IP6x (dust tight) case with closed loop terminals - suitable for harsh environments.
Stable Chemistry & Built-in Circuit Protection
IEC & UN38.3 Safety Certified at cell level and integrated BMS protection to ensure safety and prevent damage.
Lightweight
Approx. 1/2 the weight (or less) of equivalent in SLA means lower logistics costs and minimal OH&S concerns.
Superior Charge & Discharge Efficiency
Faster charge/discharge rates (C/2 LiFePO4 vs C/20 SLA) for higher power usage and less downtime when charging.
Wide Operating Temperature Tolerance
Suitable for use in a wider range of applications where ambient temperature is atypical: from -20°C up to +60°C.
Fully Recyclable Battery
An environmentally friendly battery option, with no lead or calcium that can leak into the enviroment.
View the Drypower Resources Page featuring VRLA/GEL Battery Cross Reference, Drypower Lithium Specification chart, Termination Guides, Terminal Protectors & Connectors (Busbar) guide, and more.
View the Drypower Catalogues Page featuring the Drypower Range Catalogues & Product Brochures
SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.
NON DG UN3480 LITHIUM ION BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.
Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
