Pylontech FORCE-H3-102-510

Pylontech FORCE-H3-102-510

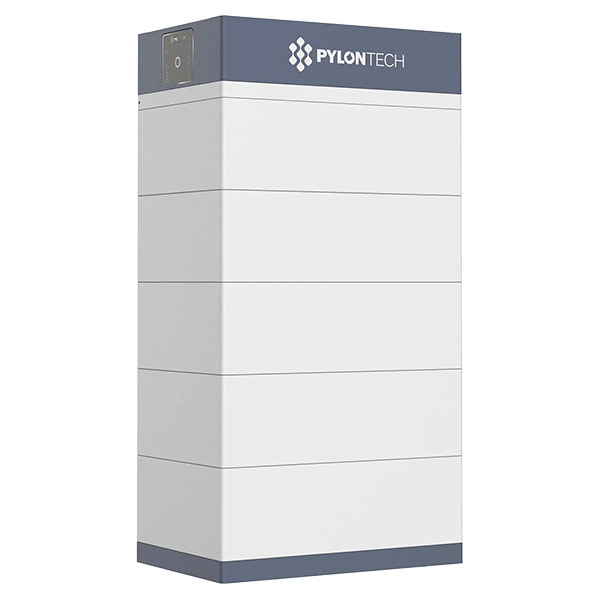

Force H3 512V 25.6kWh high voltage managed battery system (5 Cassettes + BMS controller and base)

Pylontech Force H3 512V 25.6kWh managed battery system (5 cassettes + BMS controller and base)

The Force-H3 is a high voltage modular stackable energy storage system based on lithium iron phosphate battery technology. Its attractive furniture type design and IP55 Rating makes it ideally suited for installing as a home energy storage system.

The Force H3 battery system is designed to be installed without the aid of the inter connection battery cables, significantly reducing the installation time. The basic module is a 5.12kWh cassette that is easily stackable from minimum 2 cassettes up to 7 cassettes in one tower, expandable up to 6 systems in parallel.

Features & Benefits:

  • Modular design from 10.2kWh to 35.8kWh enables quick and secure installation, & maintenance with no exposed wiring or connectors
  • Cycle life: >8000 cycles @ 25°C with 95% DoD for daily cyclic applications
  • Working temperature range -10°C to 50°C with excellent discharge performance & cycle life
  • Storage temperature range -20~60°C
  • Suitable for indoor and covered outdoor (IP55) installation
  • Cathode material is made from LiFePO4 for safety performance and long cycle life
  • The BMS has protection functions including over discharge, over charge, over current and high/low temperature
  • Compatible with many available hybrid inverters
  • Safety Cert. IEC62619, IEC63056, UL1973, UL9540A, UN38.3, VDE-AR-E 2510-50
  • Clean Energy Council Approved (CEC)

Warranty: The Force-H3 comes with a standard warranty of 10 years. Register your product on the Pylontech website. A linear depreciation to a minimum of 80% of capacity over 10 years is expected and is not covered by the warranty.

Specifications:

Chemistry LiFePO4
System Voltage (V) 512V
System Capacity (kWh) 25.6kWh
System Capacity (Ah) 50Ah
Battery Controller FC1000Z
Battery Module (Cassette) FH10050
No. of Modules (Cassettes) 5
Module Capacity (kWh) 5.12kWh
Module Capacity (Ah) 50Ah
System Max. Charge Voltage (Vdc) 576V
System Standard Charge (A) 10A
System Normal Charge (A) 50A
System Max. Charge (A) 55A
System Min. Discharge Voltage (Vdc) 464V
System Standard Discharge (A) 10A
System Normal Discharge (A) 50A
System Max. Discharge (A) 55A
Efficiency (%, ≤0.5C rate) 96%
Depth of Discharge (DoD) 95%
Communications CANBUS / Modbus RTU
Protection Class IP55
Design Life (Years) 15+ years (25°C / 77°F)
Operating Temperature -10°C to +50°C
Storage Temperature -20°C to +60°C
Humidity 5~95% (w/o condensing)

System Integration Information

The Pylontech Force H3 module can be integrated with many of the world's leading inverter brands.

Force H3 Systems are made to order using the following components:

FH10050 Battery Module / Cassette - Quantity dependent on system capacity required
FC1000Z BMS controller, base and 3 Meter red / black (8AWG) DC power cable set

SHARE:
Selling Unit EACH
Model No FORCE-H3-102-510
Brand Pylontech brand logo
Description Force H3 512V 25.6kWh high voltage managed battery system (5 Cassettes + BMS controller and base)
Application Home & SME Solar Storage
Chemistry Lithium Iron Phosphate (LiFePO4)
Voltage 512V
Watt Hour 25600Wh
Nominal Capacity 50Ah
Size 25.6kWh
Width 540mm
Height 1040mm
Length / Breadth / Depth 350mm
Weight 209000g
Categories Batteries Secondary (Rechargeable)
IEC62619 Stationary Applications
Lithium Ion Batteries
Lithium Iron Phosphate Battery Packs
Energy Storage Systems (ESS)
High Voltage Energy Storage Systems
High Voltage Force Series
Pylontech
High Voltage Force H1-H2-H3 Series
CEC Approved Force High Voltage Systems

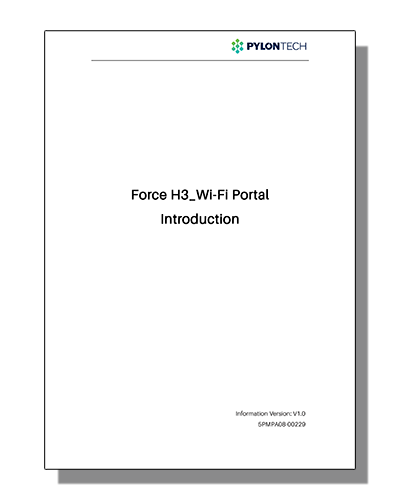

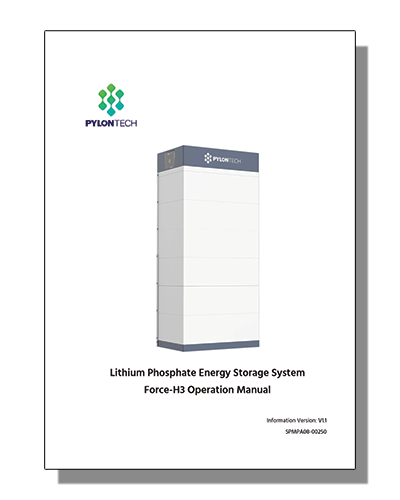

Data Sheet Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon Datasheet PDF Thumbnail icon

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

CEC approved tick logo

This product appears on the Clean Energy Council list of currently approved batteries (energy storage devices)

View the full list here

AS/NZS 3001.2.2022 standard approved logo

This Battery Pack has been tested and complies with IEC 62619:2022

To view all compliant batteries, please click here

Compatibility List of Pylontech ESS and Inverters. View the full list here

View the Pylontech Catalogues & Brochures page

Shipping restrictions Class 9 Dangerous Goods icon

SHIPPING RESTRICTIONS APPLY

Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES - Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. Surcharges will apply.

Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
