Pylontech FORCE-H3-COMBINER-BOX
Power combination box for connecting Force-H3 series strings in parallel
This power combination box is for connecting Force-H3 series strings in parallel.
Features:
- Input strings of up to 6 to output string of 1
- Nominal Voltage (V): 1000VDC
- Nominal input current per terminal: 50A
- Output terminal: Cable connection (O-ring) M25*1.5
- Design life: 15+ Years (25°C / 77°F)
- Reference standard: UL1741

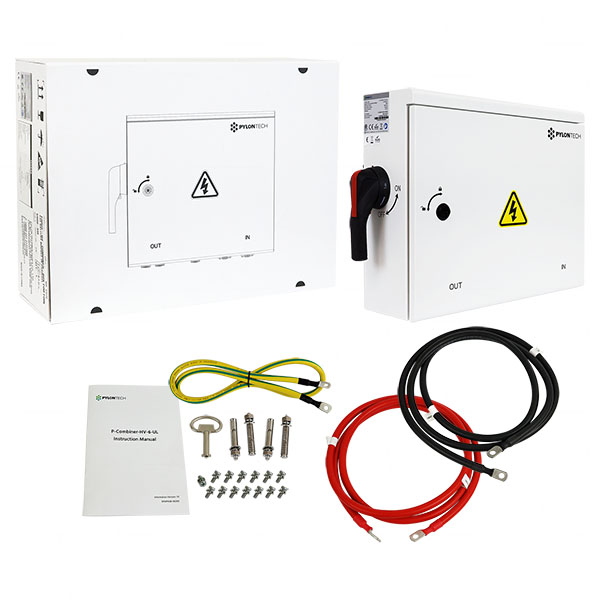

- Comes with:
- Black power cable, 4AWG, SC25-8, 2m
- Red power cable, 4AWG, SC25-8, 2m
- Grounding cable 6AWG, 1m, yellow-green
- Expansion bolts
- Fixing screws
- Lock key

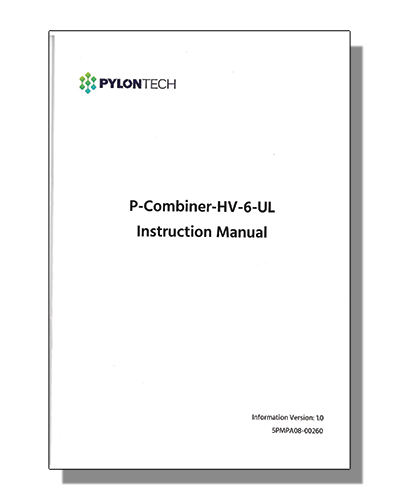

- Manual
Please follow the instructions carefully during the installation process.
SHARE:
| Selling Unit | EACH |
|---|---|
| Model No | FORCE-H3-COMBINER-BOX |
| Brand |
|
| Description | Power combination box for connecting Force-H3 series strings in parallel |
| Application | Back-up systems for office computers, data centres, Banks, hospitals, Schools & Infrastructure Applications |
| Width | 440mm |
| Height | 390mm |
| Length / Breadth / Depth | 149mm |
| Weight | 11.2kg |
| Categories |
Lithium Ion Batteries Lithium Iron Phosphate Battery Packs 48 Volt Series LiFePO4 Rack Mount Battery Systems Rack Mount Cabinets & Accessories Pylontech Pylontech Rack Mount Cabinets & Accessories |

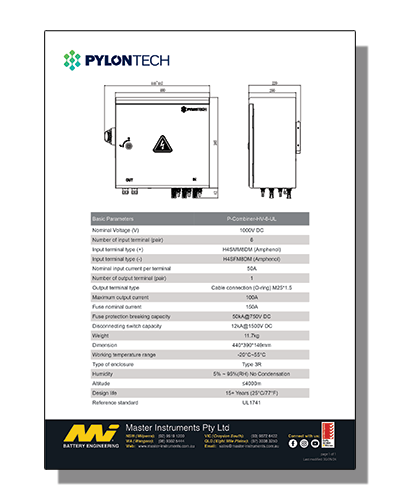

| Data Sheet |
|
