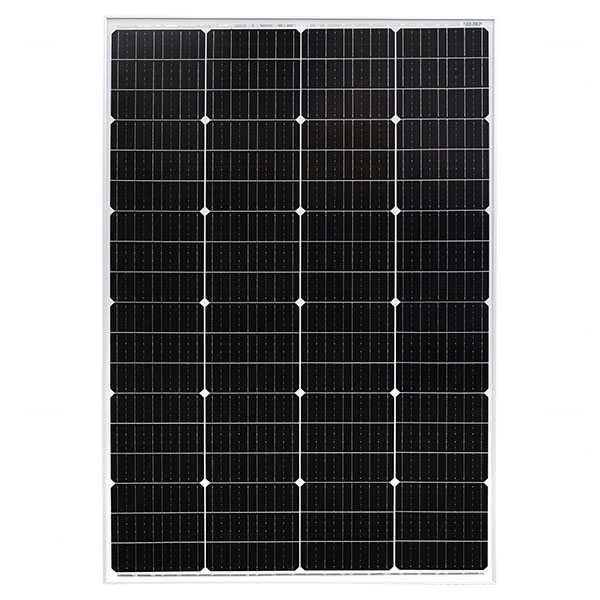

Symmetry SY3-M180W/LH4
Symmetry 12V 180W 72 cells 8.62A IP67 Junction Box Monocrystalline Solar Module with 2 x 0.9m leads with LH4 male & female connectors
Symmetry SY3 Series Solar Panels
The Symmetry range of small area modules are perfect for use in a wide variety of low power solar PV systems. Available in a range of sizes from 5 watts up to 160 watts, the Symmetry range uses mono-crystalline, weatherproof A grade solar cells in a robust aluminium frame.
Features:
- High Efficiency
High module conversion efficiency, through innovative manufacturing technology. - Low-Light Performance
Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments. - Severe Weather Resilience
Certified to withstand - wind load (2400Pa) and snow load (5400Pa). - Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance certified by TUV - 0-+5W Positive Tolerance
Detailed information in Electrical Specifications.
Multiple Applications such as:
- Off Grid Systems
- Solar Fountains
- Caravans
- Boats & Marine
- Remote Lighting
- Power Supplies
- Telemetry
- Electric Fencing
Specifications:
| Rated Power - Pmax (watts) | 180W |
|---|---|
| Max. Power Voltage VMP (V) | 20.88V |
| Max. Power Current IMP (A) | 8.62A |
| Open Circuit Voltage Voc (V) | 24.80V ±3% |
| Short Circuit Current Isc (A) | 9.15A ±3% |
| Max. System Voltage (V) | 1000V |
| Max Series Fuse Rating (A) | 15A |
| Voc Temp. Coefficients (V/°C) | -0.285% |
| Isc Temp. Coefficients (A/°C) | +0.045% |
| Temperature Range | -40°C to +85°C |
| Cell Technology | Monocrystalline |
| Number of Cells | 72 |

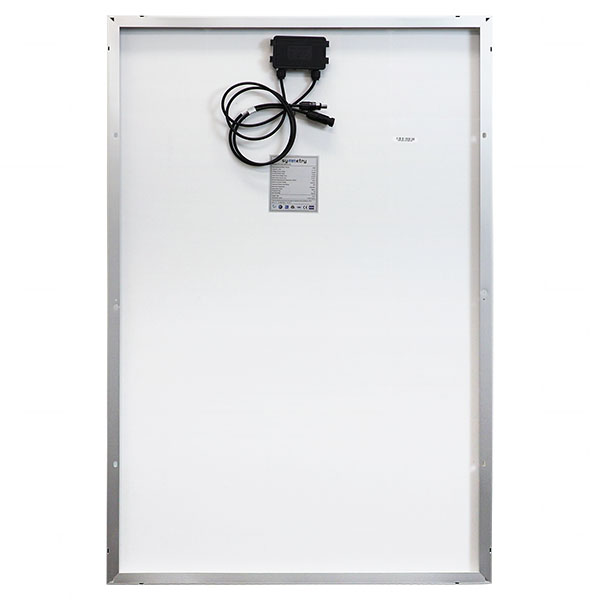

| Junction Box | Yes, IP67 |
| Connectors / Output Cable | 2 x 0.9m long 2.5mm square cable with LH4 male & female connectors |
Replaces discontinued model SY3-M160W/LH4.
Only compatible with SY3 versions. Do not mix with SY or SY2 version panels.
| Selling Unit | EACH |
|---|---|
| Model No | SY3-M180W/LH4 |
| Brand |
|
| Description | Symmetry 12V 180W 72 cells 8.62A IP67 Junction Box Monocrystalline Solar Module with 2 x 0.9m leads with LH4 male & female connectors |
| Voltage | 12V |
| Size | 180W |
| Width | 770mm |
| Height | 30mm |
| Length / Breadth / Depth | 1175mm |
| Weight | 9610g |
| Categories |
Power Products & Accessories Symmetry Solar Panels Solar Solar Panels Monocrystalline Solar Panels |

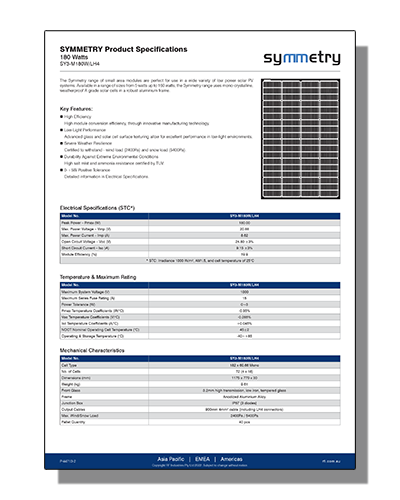

| Data Sheet |
|
