Enepower LICB-18650-1S1P-HC-022D

3.6V 3.35Ah high capacity LiIon battery with CE022D JST PHR-3 connector, 95mm lead length

This battery pack assembly has been manufactured with the following key components. The links below go to the related web pages for each component for more comprehensive information:

Cell: Panasonic NCR18650BF
Connector: CE022D 95mm lead length.
Protection Circuit Module: MIPCM-R18-1S3A-LI-01
Certification: UN38.3, IEC-62133, UL2054, IEC60601-1-2(EMC)

SHARE:

Selling Unit	EACH
Model No	LICB-18650-1S1P-HC-022D
Brand
Description	3.6V 3.35Ah high capacity LiIon battery with CE022D JST PHR-3 connector, 95mm lead length
Chemistry	Lithium Ion (LiIon)
Voltage	3.6V
Watt Hour	12.06Wh
Nominal Capacity	3.35Ah
Maximum Continuous Discharge Current	4A
Termination	Connector
Size	1S1P
Width	18.8mm
Height	69mm
Weight	48g
Categories	Lithium Ion Cylindrical Battery Pack Solutions Lithium Ion Industrial Cylindrical Battery Packs

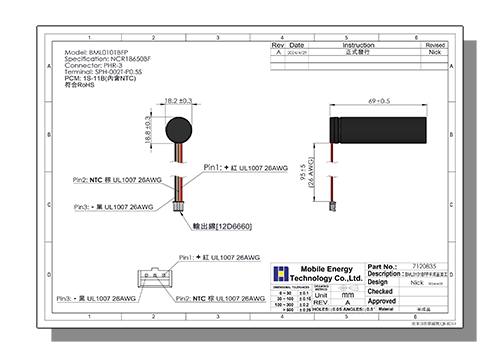

Data Sheet

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

Enepower Design-In Range

This product is part of the Enepower Design-in range of products, manufactured to a standard configuration.

This range has been formulated to provide a starting point for product developers to incorporate a battery solution for evaluation and prototyping purposes. Design-In models can be easily modified and tailored to meet your specific usage, size, performance and budgetary requirements. Find out more.

SHIPPING RESTRICTIONS APPLY

Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

NON DG UN3480 LITHIUM ION BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.

Further information on freight & postal regulations for lithium / lithium-based and other battery chemistries can be found on our battery transportation page.
