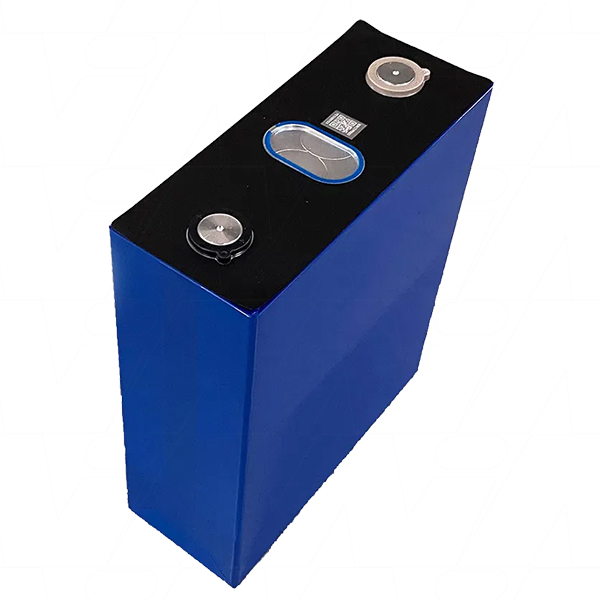

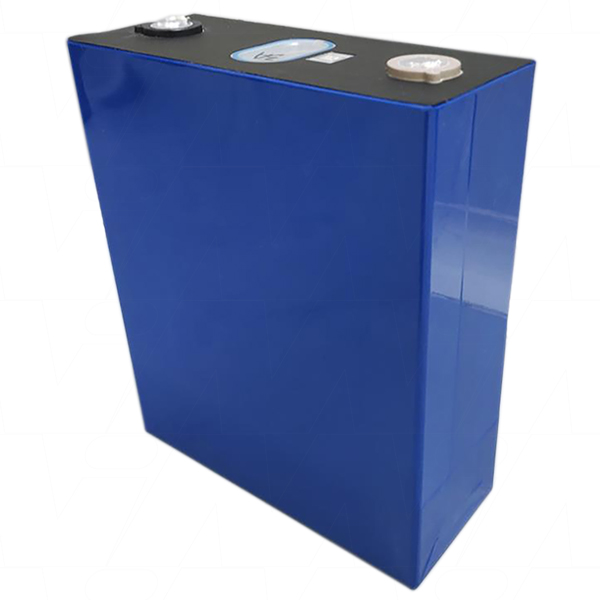

Enepower NACP73174207-ME200
3V 200Ah 600Wh Rechargeable Sodium Ion (Na-Ion) Prismatic Cell
Sodium Ion (Na-Ion) Prismatic cell
Sodium and Lithium belong to the same group in the periodic table and Sodium ion cells have similar properties to Lithium ion cells except sodium replaces lithium as the charge carrying and intercalating ion. The product uses a sodium transition metal oxide cathode material and exhibits excellent safety, high and low temperature resistance, good high rate performance and resistance to over discharge
Benefits of using Sodium Ion include:
- Abundance and ease of access to the raw materials
- Cheaper to produce (Approx 30% in future)
- Can be discharged to 0 volts with no adverse effect on service life
- Excellent low temperature performance and can support -30°C discharge and -20°C slow charging.
- Wide operating temperature range (-30°C to +70°C current dependant - please consult us)
- Excellent cycle life - up to 4000 cycles @ 25°C to 95% DoD
- Ease of adaptation to existing Lithium Ion based applications
- Safe - less flammable than Lithium ion cells
Multiple Applications such as:
- Off Grid Systems
- Wind Power Storage
- Home Solar Storage ESS
- EV's and Electric bikes
- Portable power applications
- Telemetry
- Communications
Specifications:
| Rated Voltage | 3V |
|---|---|
| Nominal Capacity @ 3.95V ~ 2.0V | 200Ah (0.5C Discharge @25°C) |
| Nominal Capacity @ 3.85V ~ 2.0V | 185Ah (0.5C Discharge @25°C) |
| AC Internal Resistance | ≤0.25 mΩ (AC 1 kHz, 3.0 V) |
| DC Internal Resistance | ≤0.8 mΩ (2C 30 s, 3.0 V) |
| Charge Cut-Off Voltage | 3.95V (≥ 45°C) |
| Discharge Cut-Off Voltage | 2.0V |
| Standard Continuous Charge Current | 100A (0.5C) |
| Max Continuous Charge Current | 200A (1.0C) |
| Standard Continuous Discharge Current | 100mA (0.5C) |
| Max Continuous Charge Current | 200A (1.0C) |
| Energy Density | ≥110 Wh/KG |
| Cycle Life | ≥ 2000 cycles (45°C, 0.25C to 80% Capacity) ≥ 5000 cycles (25°C, 0.5C to 80% Capacity) ≥ 2000 cycles (25°C, 1.0C to 80% Capacity) |
*For further technical & performance specifications, or to discuss product design & assembly, battery charging options and potential applications, please contact us.
| Selling Unit | EACH |
|---|---|
| Model No | NACP73174207-ME200 |
| Brand |
|
| Description | 3V 200Ah 600Wh Rechargeable Sodium Ion (Na-Ion) Prismatic Cell |
| Application | ESS (Energy Storage Systems), Power stations, Industrial Mobilty, Wind Power, Large scale solar storage, EV's, Agricultural vehicles |
| Chemistry | Sodium Ion (Na-Ion) |
| Voltage | 3V |
| Watt Hour | 600Wh |
| Nominal Capacity | 200Ah |
| Maximum Continuous Discharge Current | 200A |
| Width | 173.7mm |
| Height | 204.5mm |
| Length / Breadth / Depth | 72mm |
| Weight | 4900g |
| Categories |
Portable Power Product Batteries Secondary (Rechargeable) Sodium Ion Cells Enepower Sodium Ion Solutions |

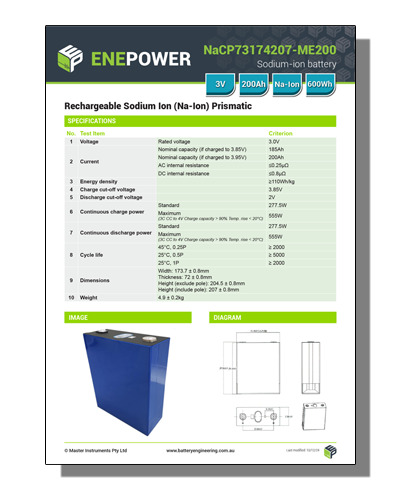

| Data Sheet |
|
