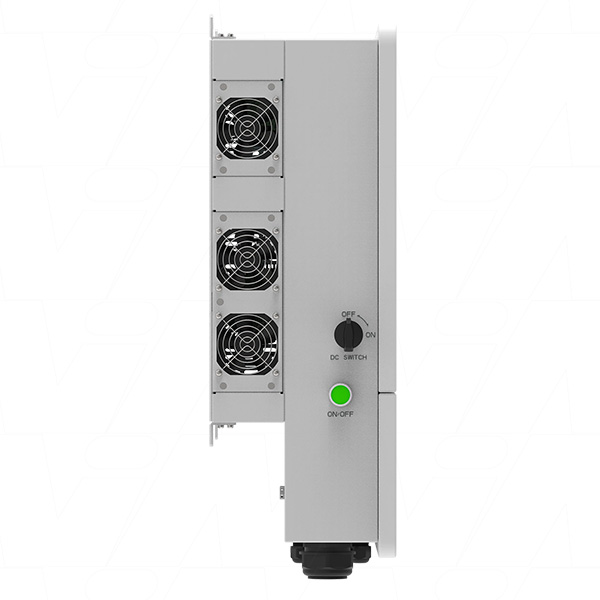

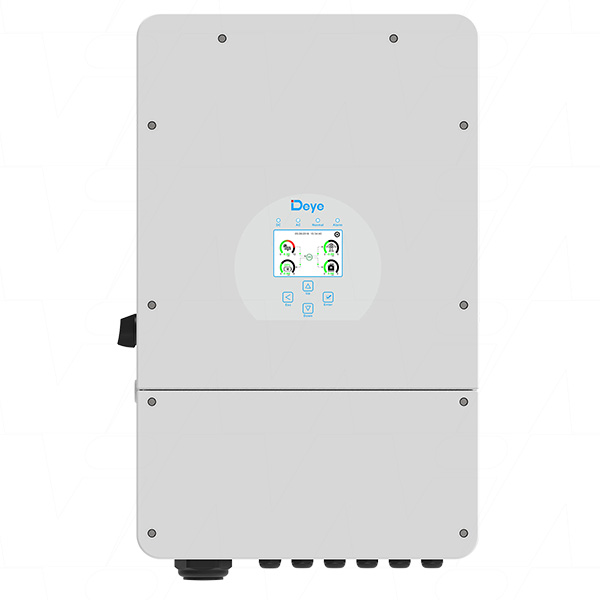

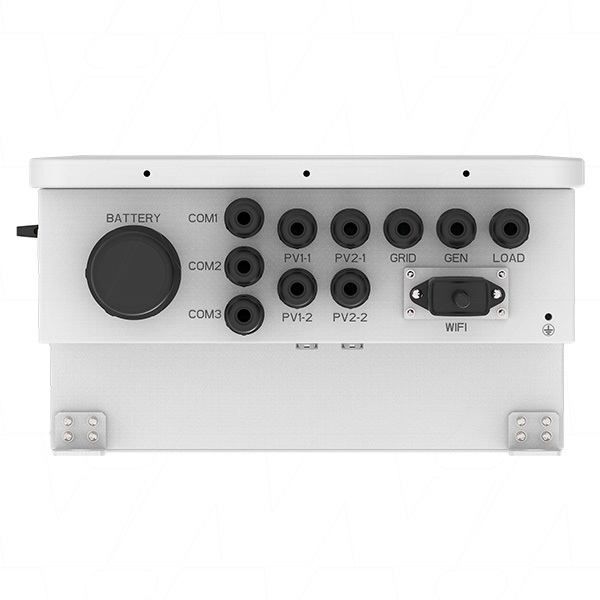

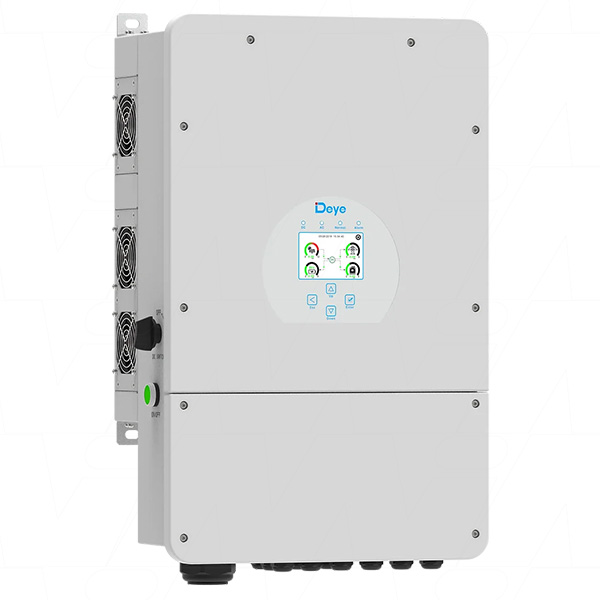

Deye SUN-10K-SG02LP1-AU-AM3

10kVa Single Phase Hybrid Inverter Charger

This multifunctional Hybrid inverter, combines all the functions of an inverter, dual MPPT solar charge controllers (20800 W Array size), & multi-chemistry battery charger.

An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via the Deye Single Phase Hybrid Inverter. Finally, the stored energy can be released when the loads require it. The battery can also be charged by a generator to ensure uninterrupted supply in the event of grid blackout. It is also equipped with RS485/CAN port for battery communication.

Suitable for residential and light commercial use, the Deye range maximises the self-consumption rate of solar energy and increases your energy independence.

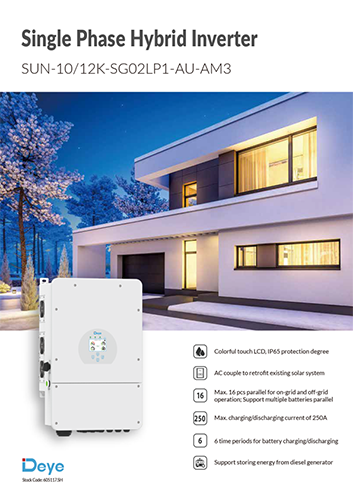

FEATURES:

• Colorful touch LCD
• IP65 Protection Rating
• AC Couple to retrofit existing solar systems
• Max. 16 pcs parallel for on-grid and off-grid operation
• Max. charging / discharging current of 250A
• Configurable 6 time periods for battery charging current/voltage based on applications
• Diesel Generator compatible
• 10 Year Warranty

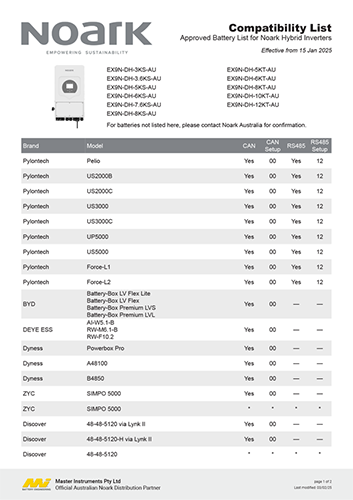

This product is myNoark compatible:

If you'd like Australian technical support, and your system data stored on Australian servers, you can access this service with the addition of the Noark communcations dongles (sold separately).

WiFi+BLE: Noark Communications Dongle with WiFi & Bluetooth capability.

ETH+WiFi+BLE: Noark Communications Dongle with Ethernet/LAN, WiFi & Bluetooth capability.

The myNoark App provides a wireless configuration tool and system monitor all in one convenient and easy to follow platform.

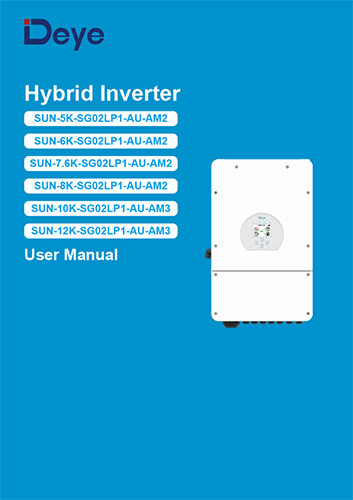

Download the User Manual Here

Access the myNoark website - mynoark.com.au or download the Smart Phone App's below.
