Noark WiFi+BLE

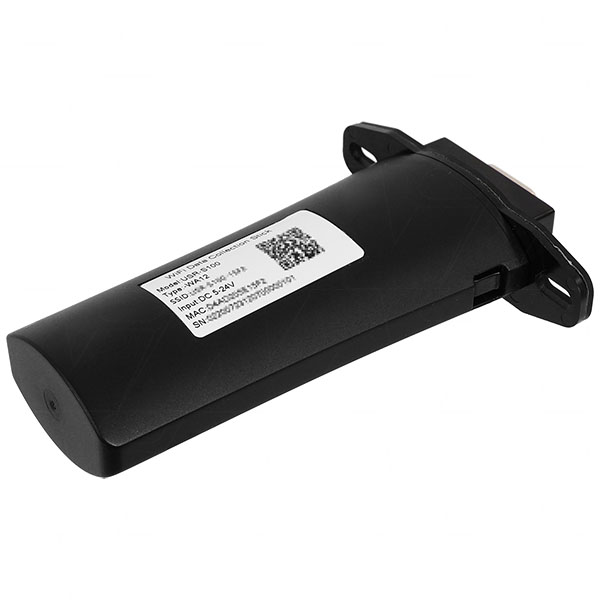

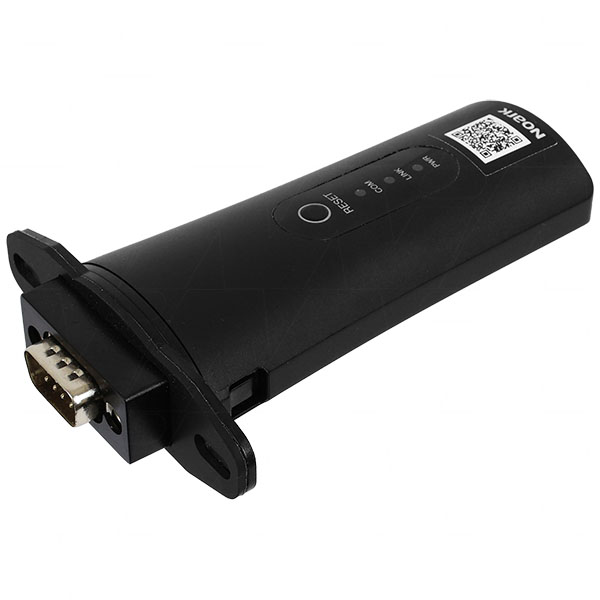

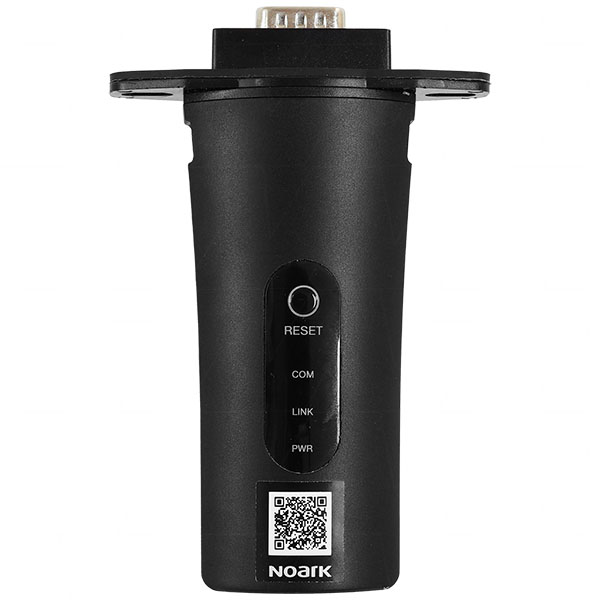

Noark Dongle with Wi-Fi and Bluetooth suits Noark single and three phase inverters
Introducing the new Noark Wi-Fi and Bluetooth dongle.
This is the standard dongle supplied with Noark Sion & Trinix hybrid inverters.
This dongle allows:
- Remote programming of your system by you or by Noark Australia.
- Boosts the power of the app and online tool for more powerful tracking of power sources or understanding issues.
- Allows Noark Australia to monitor issues and help you correct them without an onsite visit.
Specifications
|
Electrical Parameters |
Voltage: DC 5V-12V Current consumption: Max. 550mA; Avg. 120mA |
| Bluetooth Parameters |
Bluetooth standard: V4.2 Antenna type: Built in Internal |
|---|---|
| Wi-Fi characteristic parameters |
Network standard: 802.11 b/g/n Safe Mode: WPA/WPA2/WPA2-Enterprise Operation Mode: Station/AP/Station + AP Others: 802.11 n (2.4 GHz), up to 150Mbps Antenna type: Built-in Antenna |
| Interface Parameters |
Connection: DB9-Male Communication Interface: RS485-HD / RS232 / Uart TTL Communication Parameters: 9600bps 8/N/1 (default) |
| LED Indication |
DEV: Device communication indicator NET: Network status indicator |
| Mechanical Parameters |
Size: 120.0 x 37.0 x 22.0 mm Weight: 70g Installation Mode: Plug and Unplug |
| Environmental Parameters |
Operation Temperature Range: -20℃ -- +60℃ |
| Maintenance features |
Upgrade method: OTA(0ver The Air) updates /Webserver/Bluetooth |
| Other Parameters |
Protection Level: IPX7 |
| Selling Unit | EACH |
|---|---|
| Model No | WiFi+BLE |
| Brand |
|
| Description | Noark Dongle with Wi-Fi and Bluetooth suits Noark single and three phase inverters |
| Application | Battery Banks, Solar, Automation, Control, Telecommunications, DC circuit applications |
| Categories |
DC Circuit Breakers Terminal Shields Noark Moulded Case Circuit Breakers Noark Accessories |

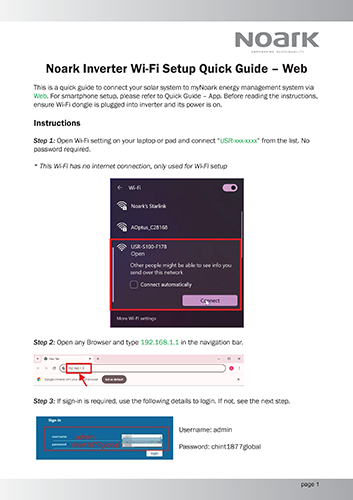

| Data Sheet |
|
