Noark N881120-1PH-ENERGY METER

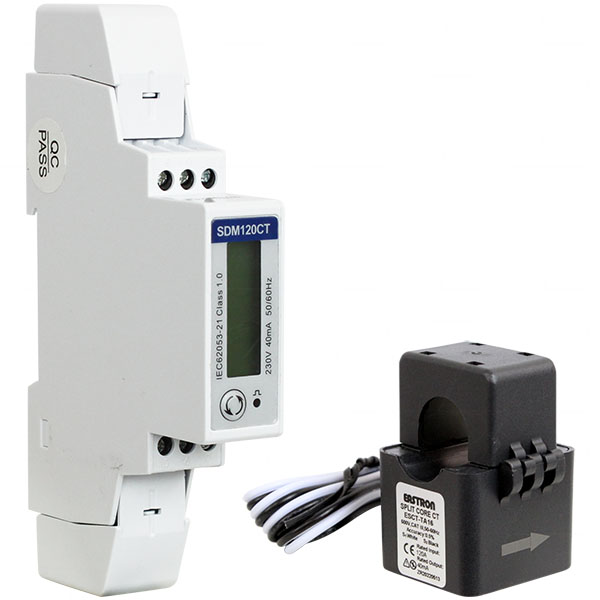

Single phase 5A current transformer operated energy meter SDM120CTM, DIN rail mounting, IP51
Advanced multifunction single phase energy monitoring solution with optional outputs such as pulses, RS485 RTU Modbus and Mbus. Equipped with scroll display button for ease of navigation through the various parameters. Housed for DIN rail mounting, IP51 protection and current transformer operated 1/5A.
- Single phase 5A current transformer operated
- MID B+D certified
- Accuracy class 1 (Active Energy)
- Bi-directional measurement for kW and kWh
- Configurable pulsed output (Import / Export)
- Modbus (SDM120CTModbus) or Mbus (SDM120CTMbus)
- Multi-parameter measurement
- Free configuration software
SHARE:
| Selling Unit | EACH |
|---|---|
| Model No | N881120-1PH-ENERGY METER |
| Brand |
|
| Description | Single phase 5A current transformer operated energy meter SDM120CTM, DIN rail mounting, IP51 |
| Width | 18mm |
| Height | 118mm |
| Length / Breadth / Depth | 64mm |
| Categories |
Power Products & Accessories Power Accessories, Adaptors and Adaptor Leads Battery Management & Monitoring |

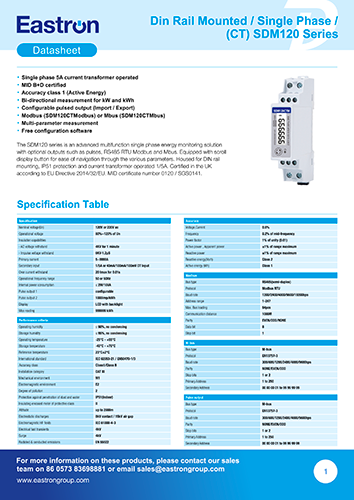

| Data Sheet |
|
