Enepower Design-In Range
The Enepower Design-In battery range has been formulated to provide a starting point for product developers to incorporate a battery solution for evaluation and prototyping purposes.
These Enepower examples feature standard cells, standard protection circuit modules, commonly used connectors & soft or rigid housings, designed to be used to gauge battery requirements in performance, run-time, physical size and similar usage factors. Once your requirements are identified, these packs can be refined and elaborated to meet those specific criteria.
The current Enepower Design-In ranges include:
- Lithium-Ion Cylindrical Soft Packs
- Lithium-Ion Prismatic Soft Packs
- Lithium-Ion Modules
- Lithium Iron Phosphate Cylindrical Soft Packs
- Lithium Iron Phosphate Modules
- Nickel Metal Hydride Modules
At any stage of the below process, we encourage you to contact our battery & product engineers to refine your requirements, and achieve the optimum product.
So where to start?
Voltage
Different Chemistries have different nominal voltages which can be increased in series configurations. Once you know you required voltage, narrowing down the chemistry is quite simple.
- Nickel Metal Hydride (NiMH) 1.2 Volts per cell
- Lead Acid, Incl. Gel (SLA) 2.0 Volts per cell
- Lithium Iron Phosphate (LiFePO4) 3.2 Volts per cell
- Lithium Ion (LiIon) 3.6/3.7/3.8/3.85/3.9 Volts per cell.
Hard or Soft Packs?
With options for both, the Enepower range is capable of providing solution for internal device usage, Hard shell or encased solutions (including IP rated casings) for external usage.
Enepower also has a range of battery assembly components such as spacers and frames, battery mounts, washers, terminals, solder tags and so much more.

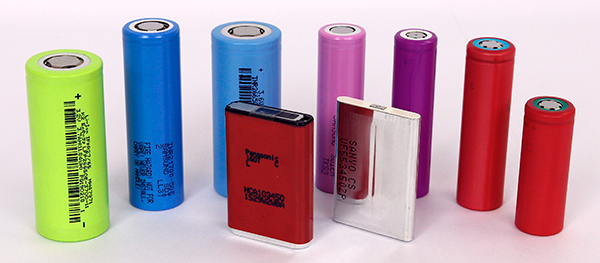

Cell Selection
With access to the world’s most renowned manufacturers, Enepower products are built with specific usage requirements in mind. High capacity, high discharge, wider temperature ranges are some of the variables we consider when offering solutions.
Click the below links to peruse our cell options:

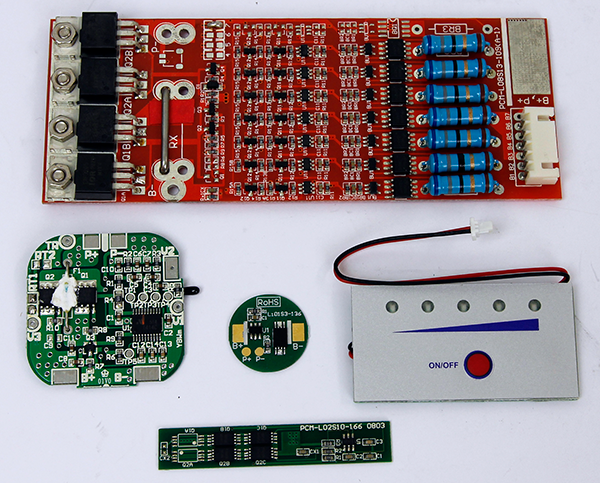

Protections & Battery Management
MI offers a range of PCM's (Protection Circuit Modules) suitable for both LiIon and LifePO4 battery packs from small single cells options, right through to custom programmed options for larger batteries:
Protection Circuit Module Options
Terminations
MI offers a range of lead & connector options for smaller battery packs. Proprietary connections and custom terminations can also be incorporated into you final product.
Connectors & Pins:
Whatever your requirements, the Enepower Design in range can be modified to suit your exact requirements.
Speak to the Sales engineers at Master Instruments today to identify your solution.
