Discontinued product - Contact us for a possible replacement

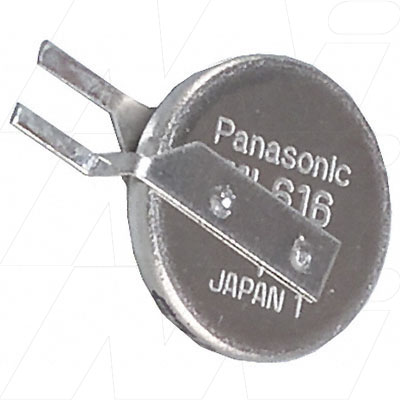

Panasonic ML616S

Panasonic ML616S Rechargeable Lithium Coin Cell Battery

For extremely low current output use only. Available with PCB pins only

Model No	ML616S
Brand
Description	Panasonic ML616S Rechargeable Lithium Coin Cell Battery
Application	Memory Back Up (MBU)
Chemistry	Lithium Manganese
Voltage	3V
Watt Hour	0.0087Wh
Nominal Capacity	2.9mAh
Width	6.8mm
Height	1.6mm
Weight	0.19g
Categories	Portable Power Product Memory Back Up (MBU) Batteries Batteries Secondary (Rechargeable) Lithium Rechargeable Coin Cell

Login to MI Link for pricing
Login for Pricing
MI Link is a dealer-only portal. If you are not a current MI account holder register for an account

The Panasonic 'ML' series of rechargeable lithium coin type batteries provide the following features and solutions:

Features

Stable Operating Voltage of 2.5V.
Charging possible with 2.8V. For charging information please select datasheet 3 below
Low self-discharge rate and long life. Self-discharge rate : less than 2% a year at room temperature.
Charge/Discharge Characteristics (discharge depth of 20%) 500 cycles
Usable over a wide temperature range.
Operational temperature range : -20^oC to +60^oC (-4^oF to +140^oF )
Consult Master Instruments P/L when using batteries at temperatures exceeding the -20^oC to +60^oC (-4^oF to +140^oF ) range.
UL recognition (File No. MH13421)

Applications

Others

Available to meet customer's package requirements (multiple cell, with tabs, with connectors, etc)
Use nickel-plated phosphor bronze or stainless steel for terminal materials to make contact with the batteries. Also, for stable contact conditions, several N of contact pressure are recommended for the contact.

Click the Data Sheet links below for battery data and tab configurations (where applicable).

Please note: Master Instruments Australian compliant PSDS are available upon request. Please contact your sales representative.
