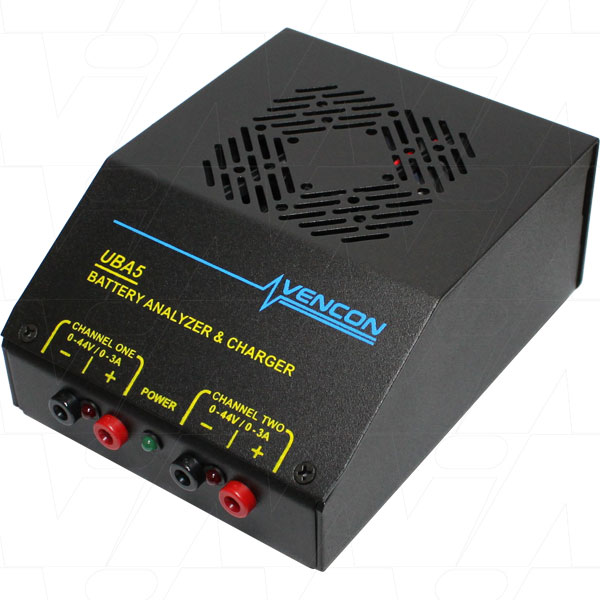

The UBA5 is a two channel unit PC controlled For charging/analysing all chemistries. Charging style can be Peak, inflection, timed, voltage or pulse charge. For complete information on this unit please click here to go to the Vencon UBA5 product page.
The UBA5-30V can analyze 30V battery packs (or smaller). It comes with a small power supply (120VAC or 220VAC input when available) that powers the UBA5's internal circuitry. The maximum charge current is 2A per channel.
The data sheet link below is for the standard UBA5. The information within the datasheet also relates to the UBA5-30V except for the higher voltages that the UBA5-30V can attain as set out below.
Maximum number
of cells(in series)
that can be charged |
Nominal Battery Pack Voltage |
| NiCd/NiMH |
25 |
30V |
| Lead acid/Gel cells |
15 |
30V |
| Li-Ion |
9 |
33V |
|
