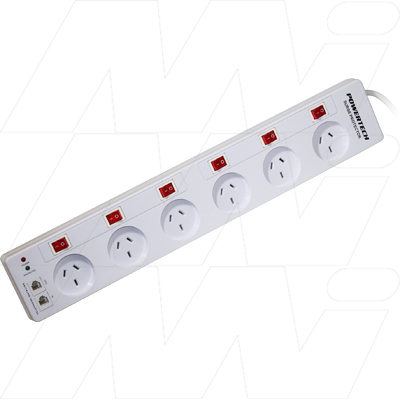

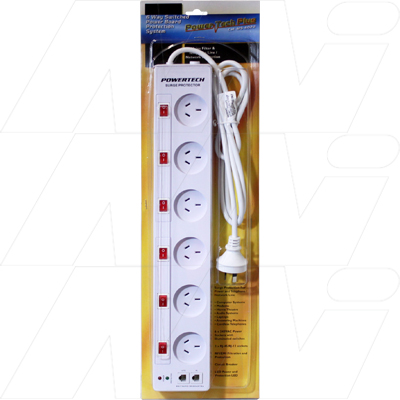

Powertech MS4022

6-Way Individually Switched Power Outlet with Mains Filter and Telephone Line Protection. This filter features recessed mains safety sockets that are suited to plug pack adaptors. Each socket is spaced apart so that plug packs can be used in every socket if required. When a standard power board is mounted vertically, plug packs can sometimes work themselves free over time. The recessed sockets on this board prevent that from happening and from making potentially dangerous contact due to partially exposed mains connectors. The board also features telephone line filtering for modems/faxes and separate LED surge and power indicators. Each mains socket is individually switched with illuminated rocker switches. The mains filter includes overload protection as well as a circuit breaker.

Specifications:
• Power Rating: 230-240VAC 50Hz
• Current: 10A (max.)
• Handling: 2400W
• Protection Mode: A-N, A-E, N-E0
• Surge Current: 18,000A (2/20u sec.)
• Clamping Voltage: <775V (at 50V)
• Energy Absorption: 175j (10/1000u sec.)
• Surge Protection: Metal Oxide Varistors
• Response Time: <15 nanosecond
• Differential Capacitance: 400pf (1KHz)
• Filtration Protection:  EMI/RFI

Telephone Line Protection:
• Filter Type: Ceramic Gas Discharge Tube
• Surge Current: 1200V (1KV/u sec.) Line to Line
• Impulse Discharge Current: 10KA (8/20u sec.)
• Capacitance: <5pF
• Clamping Voltage: 600V
• Phone Socket: RJ-45 with reducers for RJ-12
