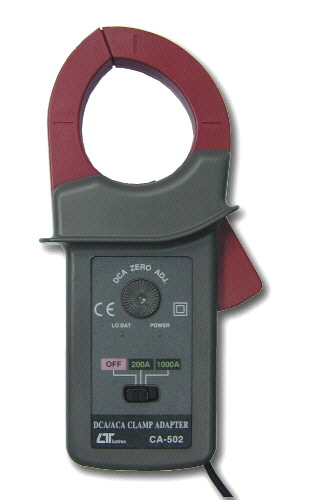

Lutron CA502
Clamp Adaptor - Dca/Aca 0-1000a
DCA / ACA Clamp Adapter
Model: CA‑502
Features
- To match “Digital Multimeter”, be used as a digital DCA & ACA clamp meter.
- Wide measuring range, max. measuring up to 1000 ACA, 1000 DCA.
- Design meets IEC 1010 safety requirement.
- Built‑in low battery check function.
Specifications
General Specifications
| Range | ACA | 0 – 1000 ACA 2 ranges (200 ACA, 1000 ACA) |
| DCA | 0 – 1000 DCA 2 ranges (200 DCA, 1000 DCA) |
|
| Output | ACA | 1 AC mV per 1 ACA |
| DCA | 1 DC mV per 1 DCA | |
| Battery | 006P DC 9V battery (Alkaline or heavy duty battery) |
|
| Power Consumption | Approx. 15 mA. | |
| Max. Conductor Size | 32 mm (1.3 inch) Dia. | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F). | |
| Operating Humidity | Less than 90% RH. | |
| Dimension | 185 × 78 × 30 mm (7.2 × 3.1 × 1.2 inch). | |
| Weight | 340 g / 0.75 lb (including battery). | |
| Accessory Included | Operation manual — 1 PC. | |
Electrical Specifications (23 ± 5°C)
| Function | Range | Accuracy | Overload Protection |
|---|---|---|---|
| DC current | 200 A | ± (1.5% + 1 A) | AC/DC 1000 A |
| 1000 A | ± (2% + 5 A) | ||
| AC current | 200 A | ± (1.5% + 1 A) | |
| 1000 A | ± (2% + 5 A) |
| Selling Unit | EACH |
|---|---|
| Model No | CA502 |
| Brand |
|
| Description | Clamp Adaptor - Dca/Aca 0-1000a |
| Width | 78mm |
| Height | 30mm |
| Length / Breadth / Depth | 185mm |
| Weight | 51.1g |
| Categories |
Test & Measurement Equipment Digital Test Equipment Clamp Meters |
| Data Sheet |
|
