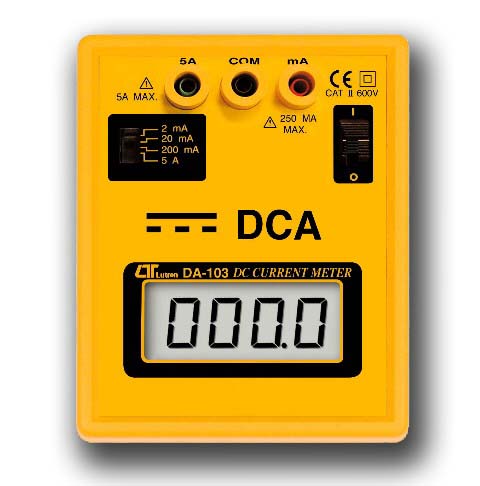

Lutron DA103
Dc Current Meter
DCA BENCH METER
Model : DA‑103
1. Features
- Easy operation, professional quality, compact size.
- Application : Education, Maintenance, Production line, School,
Laboratory, Industrial and Quality control.
GENERAL SPECIFICATIONS
| Display | LCD, 18 mm (0.7") digit height. |
| Measurement | DC current. |
| Range / Resolution | 2 mA x 0.001 mA 20 mA x 0.01 mA 200 mA x 0.1 mA 5 A x 0.01 A |
| Accuracy | 2 mA / 20 mA / 200 mA range : ± (1.0% + 1d) @ reading 5 A range : ± (1.5% + 2d) @ reading |
| Voltage Drop of the full scale | 2 mA / 20 mA / 200 mA range : 200 mV DC. 5 A range : 50 mV DC. |
| Over load Protection | 2 mA / 20 mA / 200 mA range : 500 mA Fuse. 5 A range : 10 A Fuse. |
| Polarity | Automatic Switching "-" indicates negative polarity. |
| Zero Adjustment | Automatic. |
| Over ‑ input | Display shows "1" or "-1". |
| Safety | Meet IEC1010 CATII 600V. |
| Sampling Time | Approx. 0.4 second. |
| Operating Temperature | 0 to 50°C (32 to 122°F). |
| Operating Humidity | Less than 80% RH. |
| Power Supply | 006P DC 9V battery. |
| Power Consumption | Approx. 1.3 mA. |
| Dimension | 147 x 117 x 52 mm (5.8 x 2.6 x 4.0 inch). |
| Weight | 313 g / 0.34 LB (including battery). |
| Input terminal | Standard banana terminals ( Red, Black, White each ). |
| Standard Accessories | Instruction Manual ......................... 1 PC. |
APPLICATIONS
- EDUCATION, SCHOOL & COLLEGES
- MAINTENANCE
- PRODUCTION LINE
- LABORATORY
- INDUSTRIAL
- QUALITY CONTROL
| Selling Unit | EACH |
|---|---|
| Model No | DA103 |
| Brand |
|
| Description | Dc Current Meter |
| Categories |
Test & Measurement Equipment Digital Test Equipment Electric Test Meters |
| Data Sheet |
|
