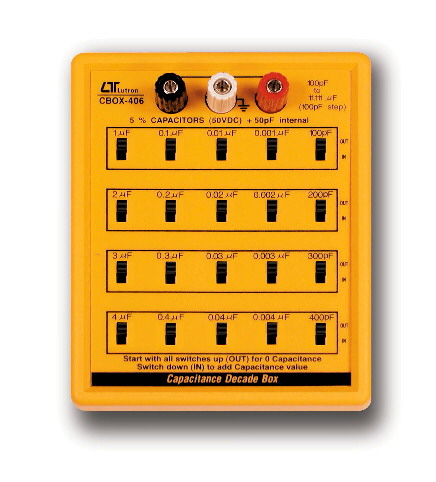

Lutron CBOX-406

Capacitance Decade Box

Model : CBOX‑406

Applications :
General applications
Troubleshooting, maintenance
Education and Vocational training
Production line testing
Radio and TV services
Working standards
Research design & develop
Physics laboratory work
Pocket size, offering accurate, reliable performance.
100 pF to 11,111 uF, wide range and high resolution. ( 100 pF per step ), practical and versatile tools.
With five decades of capacitance.
Slide switches that allow the user to simply add or subtract for desired value.
Terminals with multi way binding posts, one to switch shield case.
ABS plastic housing case, rugged components.

Range	100 pF to 11,111 uF ( 100 pF per step )
Accuracy	5% capacitors used throughout. @ < 1 uF, 1 KHz test frequency @ >= 1 uF, 100 Hz test frequency
Voltage Limit	50V DC, non‑polarized capacitors.
Internal Residual Capacitance	50 pF max.
Power Supply	None.
Operating Temperature	0 to 50°C (32 to 122°F).
Operating Humidity	Less than 80% RH.
Weight	304 g / 0.69 lb.
Dimension	14.7 cm x 11.7 cm x 3.3 cm. (5.79 x 4.61 x 1.30 inch).
Accessories	Operation Manual ....................... 1 PC.

1. Start will all switches up ( OUT ) for minimum capacitance.

2. Switch down ( IN ) to add Capacitance value.

Selling Unit	EACH
Model No	CBOX-406
Brand
Description	Capacitance Decade Box
Categories	Test & Measurement Equipment Digital Test Equipment Electric Test Meters
