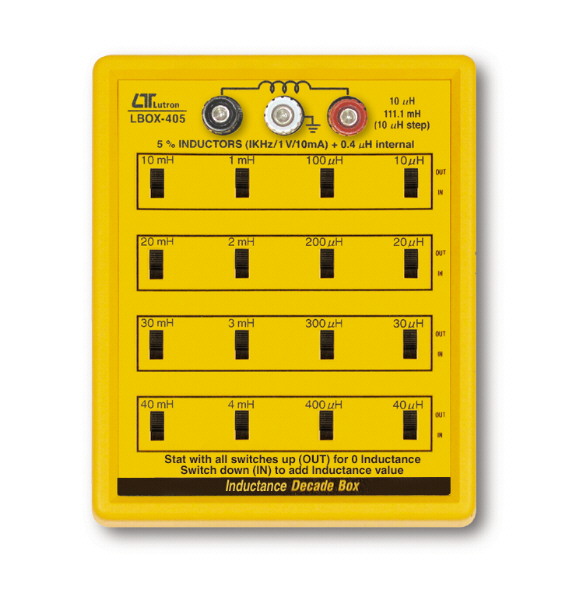

Lutron LBOX-405

Inductance Decade Box

Model : LBOX‑405

Applications :
General applications
Troubleshooting, maintenance
Education and Vocational training
Production line testing
Radio and TV services
Working standards
Research design & develop
Physics laboratory work
Pocket size, offering accurate, reliable performance.
10 uH to 111.1 mH, wide range and high resolution. ( 10 uH per step ), practical and versatile tools.
With four decades of inductance.
Slide switches that allow the user to simply add or subtract for desired value.
Terminals with multi way binding posts, one to switch shield case.
ABS plastic housing case, rugged components.

Range	10 uH to 111.1 mH ( 10 uH per step )
Accuracy	5% inductors used throughout. @ 1 KHz test frequency
Voltage / Current Limit	1 V / 10 mA.
Internal Residual Inductance	0.4 uH.
Power Supply	None.
Operating Temperature	0 to 50°C (32 to 122°F).
Operating Humidity	Less than 80% RH.
Weight	304 g / 0.69 lb.
Dimension	14.7 cm x 11.7 cm x 3.3 cm. (5.79 x 4.61 x 1.30 inch).
Accessories	Operation Manual ....................... 1 PC.

1. Start with all switches up ( OUT ) for minimum capacitance.

2. Switch down ( IN ) to add capacitance value.

Selling Unit	EACH
Model No	LBOX-405
Brand
Description	Inductance Decade Box
Categories	Test & Measurement Equipment Digital Test Equipment Electric Test Meters
