Lutron CB933

Cable Tester/Identfier

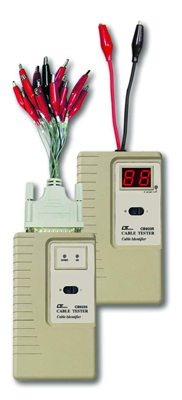

CABLE TESTER / CABLE IDENTIFIER

Model : CB‑933

Specifications

	Transmitter	Receiver
Display	Two red LED lamps.	14 mm seven segment LED, 2 digits, one red LED lamp.
Power	DC 9V battery, Alkaline type, 006P, MN1604 (PP3) or equivalent.	DC 9V battery, Alkaline type, 006P, MN1604 (PP3) or equivalent.
Power current	2 mA.	33 mA.
Alligators	17 alligators, green x16, black x1.	21 alligators, red x1, black x1.
Dimensions	125 x 70 x 26.5 mm (4.9 x 2.8 x 1.0 inch).	125 x 70 x 26.5 mm (4.9 x 2.8 x 1.0 inch).
Weight	Approx. 355 g / 0.77 LB.	Approx. 355 g / 0.77 LB.
Housing	High impact ABS plastic.	High impact ABS plastic.
Cable resistance	25 K ohm, max.
Accessories	Transmitter with 17 cables & alligators .......... 1 PC. Receiver with 2 cables & alligators ............. 1 PC. Operation manual x 1 PC.
Applications	To identify & trace up to 16 cores in multi‑way cable. It can also be connected to heating and the water supply installation system for this purpose.

Operation

1) At one end of the cable, connect one of the transmitter terminals marked “CH 1 to CH16” to each core of the cable under test.
Connect the “COM” reference lead of the transmitter to a core which is the only known one.

2) At the other end of the cable, connect the “COM terminal” (black alligator) of the receiver to the reference lead to which the “COM terminal” (black alligator) of the transmitter is also connected.
When the “Input terminal” (red alligator) of the receiver is successively touched on the cores of the cable under test, the relevant number of the way is indicated on the display of the receiver (1-16).

Selling Unit	EACH
Model No	CB933
Brand
Description	Cable Tester/Identfier
Categories	Test & Measurement Equipment Digital Test Equipment Electric Test Meters
