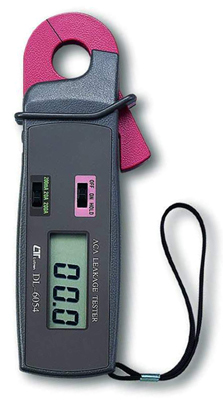

Lutron DL6054
ACA Leakage Tester
ACA LEAKAGE TESTER
Model : DL‑6054
Specifications
| Features | High precision ACA measurement, it is useful for ACA LEAKAGE measurement. |
| Display | 13mm (0.5") LCD, 3 1/2 digits. Max. indication 1999. |
| Range & Resolution | 200 AC mA x 0.1 mA 20 ACA x 0.01 A 200 ACA x 0.1 A |
| Data Hold | Available to hold the measuring values on the display. |
| Accuracy | ± (1.2% + 5 d) |
| Time Base | Quartz crystal, 32768 Hz. |
| Overload Circuit Protection | 300 ACA max. (within 1 minute). |
| Zero adjustment | Automatic adjustment. |
| Over‑input | Display shows "1". |
| Sampling Time | Approx. 0.4 second. |
| Operating Temp. | 0°C to 50°C (32°F to 122°F). |
| Operating Humidity | Less than 80% RH. |
| Battery | 006P DC 9V battery. |
| Power Consumption | Approx. DC 1.2 mA. |
| Weight | 200 g / 0.44 LB (including battery). |
| Dimension | HWD 180 x 47 x 35 mm (7.1 x 1.9 x 1.4 inch). |
| Conductor Size | 19 mm Dia. max. |
| Accessories Included | Operation manual ......................... 1 PC. Test lead (red & black) .................. 1 pair. Carrying case ............................ 1 PC. |
| Selling Unit | EACH |
|---|---|
| Model No | DL6054 |
| Brand |
|
| Description | ACA Leakage Tester |
| Width | 47mm |
| Height | 35mm |
| Length / Breadth / Depth | 180mm |
| Weight | 34g |
| Categories |
Test & Measurement Equipment Digital Test Equipment Electric Test Meters |
