Lutron GM5000
Electronic Scale - 5000g X 1g + RS232

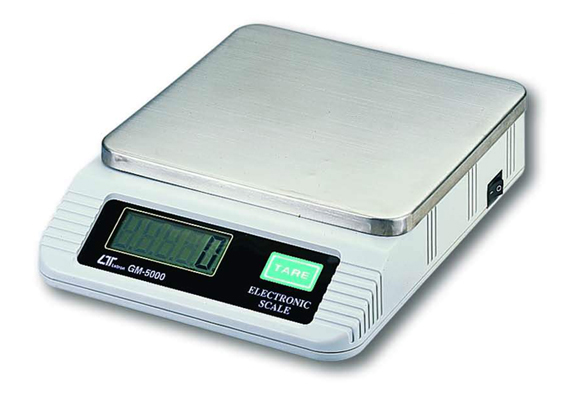

DIGITAL SCALE (5000 g × 1 g)
Model: GM‑5000
Features
- Microprocessor circuit with high accuracy and better performance.
- High resolution & wide measuring capacity, 5000 g × 1 g.
- Large LCD display, 18 mm (0.7") digit size, easy readout.
- Built‑in gram & oz display units, selectable by internal slide switch.
- Built‑in RS‑232 data output.
- Heavy duty ABS housing plastic case.
Specifications
| Display | LCD, 18 mm (0.7") digit size, 4 digits with annunciator. |
| Measuring Capacity | 5000 g |
| Resolution | 1 g |
| Min. Display Weight | 3 g |
| Unit Select | g or oz, select by internal slide switch. |
| Accuracy (23 ± 5°C) | ± (0.2% + 2 d) * After internal calibration be executed. |
| Sampling Time | Approx. 0.8 second. |
| Tare Control | Full capacity. |
| Transducer | Load cell. |
| Circuit | Microprocessor circuit. |
| Data Output | RS‑232 serial output, 9600 baud rate. |
| Operating Temperature | 0°C to 50°C (32°F to 122°F). |
| Operating Humidity | Max. 80% RH. |
| Size – Cabinet | 240 × 185 × 50 mm |
| Size – Platform | 185 × 185 mm |
| Power Supply | 6 × 1.5V AA (UM‑3) batteries, or DC 9V adapter. |
| Power Consumption | Approx. DC 27 mA. |
| Accessories Included | Operation manual — 1 PC. |
| Selling Unit | EACH |
|---|---|
| Model No | GM5000 |
| Brand |
|
| Description | Electronic Scale - 5000g X 1g + RS232 |
| Categories |
Test & Measurement Equipment Digital Test Equipment Electronic Weight Scales |
| Data Sheet |
|
