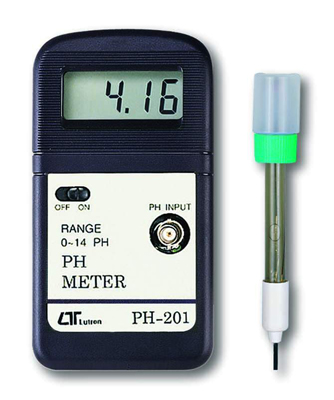

Lutron PH201
pH Meter - Pocket Type. pH Electrode Optional
DIGITAL PH / mV / TEMP METER
Model : PH‑201
GENERAL SPECIFICATIONS
| Features | Economical cost digital PH meter. General purpose applications. Easy operation. Compact size, light weight. |
| Display | 13 mm (0.5") LCD, 3 1/2 digits. |
| Measurement | PH |
| Range | 0 to 14 pH x 0.01 pH. |
| Accuracy | ±0.07 pH (PH5 ‑ PH9) ±0.1 pH (PH4 ‑ PH10) ±0.2 pH (PH1 ‑ PH3.9, PH10.1 ‑ PH13) * Main instrument only. |
| Input Impedance | 10^12 ohms. |
| PH range Temp. Compensation | No adjust. |
| Sampling Time | Approx. 0.4 second. |
| Operating Temp. | 0 ℃ to 50 ℃ (32 ℉ to 122 ℉). |
| Operating Humidity | Less than 80% RH. |
| Calibration Knob | External PH 4 (slope adj.) & PH 7 (Cal. adj.). |
| Power Supply | 006P DC 9V battery. |
| Power Consumption | Approx. 2.0 mA. |
| Dimension | 131 x 70 x 25 mm (5.2 x 2.8 x 1.0 inch). |
| Weight | 153 g / 0.34 LB (including battery). |
| PH electrode (Optional) | Any connector PH electrode with BNC connector. |
| Standard Accessories | Instruction Manual ..................... 1 PC. |
| Optional Accessories | PH electrode, Carrying case. |
APPLICATIONS
| * AQUARIUMS * BEVERAGE * FISH HATCHERIES * PAPER INDUSTRY * PLATING INDUSTRY * QUALITY CONTROL |
* FOOD PROCESSING * PHOTOGRAPHY * LABORATORY * SCHOOLS & COLLEGES * SWIMMING POOLS * WATER CONDITIONING |
OPTIONAL ACCESSORIES
| PH ELECTRODE PE‑03 |
General purpose pH electrode with BNC connector. Range : 1 to 13 pH (typical 0 to 14 pH). Epoxy body, Body size : 12 mm dia. x 160 mm. Cable length : 1 meter. |
| PH ELECTRODE PE‑11 |
General purpose high quality pH electrode with BNC connector. Range : 1 to 13 pH (typical 0 to 14 pH). Epoxy body, Body size : 9.5 mm dia. x 120 mm. Cable length : 1 meter. |
| BUFFER SOLUTION PH‑07 |
PH 7.00 standard buffer solution. |
| BUFFER SOLUTION PH‑04 |
PH 4.00 standard buffer solution. |
| CARRYING CASE CA‑04 |
Vinyl soft case for PH‑201. |
| Selling Unit | EACH |
|---|---|
| Model No | PH201 |
| Brand |
|
| Description | pH Meter - Pocket Type. pH Electrode Optional |
| Width | 70mm |
| Height | 25mm |
| Length / Breadth / Depth | 131mm |
| Weight | 21g |
| Categories |
Test & Measurement Equipment Digital Test Equipment Analytical Meters |
