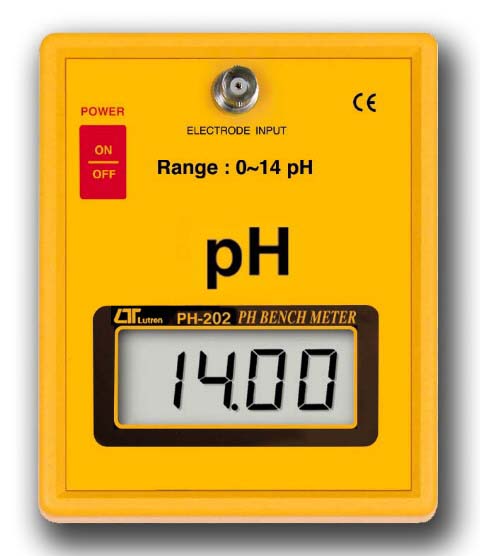

Lutron PH202
pH Bench Meter
PH BENCH METER
Model : PH‑202
GENERAL SPECIFICATIONS
| Features | General purpose pH measurement. Easy operation, compact size. Water resistant on the front panel. Application : Education, Maintenance, Production line, School, Laboratory, Industrial & Quality control. |
| Display | 18 mm (0.7") digit height. |
| Measurement | pH |
| Range | 0 to 14 pH x 0.01 pH. |
| Accuracy | ±0.07 pH (pH5 to pH9) ±0.1 pH (pH4 to pH10) ±0.2 pH (pH1 to pH3.9, pH10.1 to pH13) * Main instrument only. |
| Input Impedance | 1012 ohms. |
| PH range Temp. Compensation | No adjust. |
| Sampling Time | Approx. 0.4 second. |
| Operating Temp. | 0 to 50 ℃ (32 ℉ to 122 ℉). |
| Operating Humidity | Less than 80% RH. |
| Calibration Knob | External pH 4 (slope adj.) & pH 7 (Cal. adj.). |
| Power Supply | 006P DC 9V battery. |
| Power Consumption | Approx. 2.0 mA. |
| Dimension | 147 x 117 x 52 mm (5.8 x 4.6 x 2.0 inch). |
| Weight | 250 g / 0.55 LB. |
| PH electrode (Optional) | Any connector PH electrode with BNC connector. |
| Standard Accessories | Instruction Manual ......................... 1 PC. |
APPLICATIONS
| * AQUARIUMS * BEVERAGE * FISH HATCHERIES * PAPER INDUSTRY * PLATING INDUSTRY * QUALITY CONTROL |
* FOOD PROCESSING * PHOTOGRAPHY * LABORATORY * SCHOOLS & COLLEGES * SWIMMING POOLS * WATER CONDITIONING |
OPTIONAL ACCESSORIES
| PH ELECTRODE PE‑03 |
General purpose pH electrode with BNC connector. Range : 1 to 13 pH (typical 0 to 14 pH). Epoxy body, Body size : 12 mm dia. x 160 mm. Cable length : 1 meter. |
| PH ELECTRODE PE‑11 |
General purpose high quality pH electrode with BNC connector. Range : 1 to 13 pH (typical 0 to 14 pH). Epoxy body, Body size : 9.5 mm dia. x 120 mm. Cable length : 1 meter. |
| PH ELECTRODE PE‑01 |
General purpose pH electrode with BNC connector. Range : 1 to 13 pH (typical 0 to 14 pH). Epoxy body, Body size : 9.5 mm dia. x 120 mm. Cable length : 1 meter. |
| BUFFER SOLUTION PH‑07 |
PH 7.00 standard buffer solution. |
| BUFFER SOLUTION PH‑04 |
PH 4.00 standard buffer solution. |
| Selling Unit | EACH |
|---|---|
| Model No | PH202 |
| Brand |
|
| Description | pH Bench Meter |
| Width | 117mm |
| Height | 45mm |
| Length / Breadth / Depth | 147mm |
| Weight | 36.5g |
| Categories |
Test & Measurement Equipment Digital Test Equipment Analytical Meters |
| Data Sheet |
|
