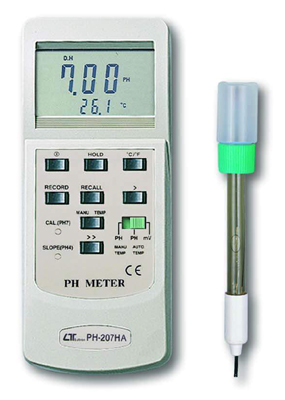

Lutron PH207HA

Lutron PH207HA

pH Meter With Temperature

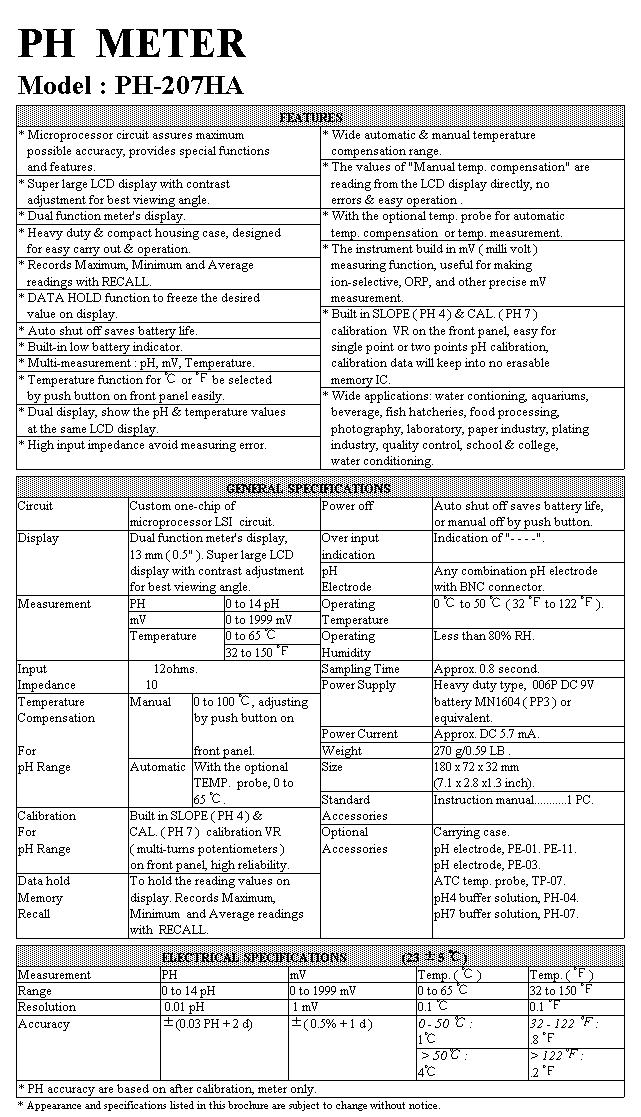

PH METER

Model : PH‑207HA

FEATURES

  • Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
  • Super large LCD display with contrast adjustment for best viewing angle.
  • Dual function meter’s display.
  • Heavy duty & compact housing case, designed for easy carry out & operation.
  • Records Maximum, Minimum and Average readings with RECALL.
  • Data hold function to freeze the desired value on display.
  • Auto shut off saves battery life.
  • RS232 PC serial interface.
  • Built‑in low battery indicator.
  • Wide automatic & manual temperature compensation range.
  • The values of “Manual temp. compensation” are reading from the LCD display directly, no error & easy operation.
  • Multi‑display, show pH & temperature at the same time.
  • With the optional temp. probe for automatic temp. compensation or temp. measurement.
  • The instrument built‑in mV (millivolt) measuring function, useful for making pH electrode, ORP, and other precise mV measurement.
  • Built‑in STO/P (PH 4) & Cal. (PH 7) calibration VR on the front panel, easy operation & two points pH calibration, calibration data will keep into EEPROM memory on erase‑off.
  • Wide applications : water conditioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college, water conditioning.

GENERAL SPECIFICATIONS

Circuit Custom one‑chip of microprocessor LSI circuit. Power off Auto shut off saves battery life, or manual off by push button.
Display Dual function meter’s display,
13 mm (0.5") Super large LCD display with contrast adjustment.		 Over input indication Indication of “‑‑‑‑”.
Measurement pH
mV
Temperature		 pH Input Any combination pH electrode with BNC connector.
Input Impedance 1012 ohms. Operating Temperature 0 ℃ to 50 ℃ (32 ℉ to 122 ℉).
Temperature Compensation Manual 0 to 100 ℃, adjusting by push button on front panel.
Automatic with one optional temp. probe.		 Operating Humidity Less than 80% RH.
Calibration for pH Range Built‑in slope (PH 4) & cal. (PH 7) calibration VR,
multi‑point two points pH calibration on front panel, high reliability.		 Sampling Time Approx. 0.8 second.
Data Hold / Memory Recall To hold the reading value on display. Records Maximum, Minimum and Average readings with RECALL. Power Supply Heavy duty type, 006P DC 9V battery.
Power Current Approx. DC 5.7 mA. Weight 270 g / 0.59 LB.
Size 180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inch).
Standard Accessories Instruction manual ................. 1 PC.
Optional Accessories pH electrode, PE‑01, PE‑11.
pH electrode, PE‑03.
ATC temp. probe, TP‑07.
pH buffer solution, PH‑04, pH buffer solution, PH‑07.

ELECTRICAL SPECIFICATIONS (23 ± 5 ℃)

Measurement Range Resolution Accuracy
pH 0 to 14 pH 0.01 pH ± (0.03 pH + 2 d)
mV 0 to 1999 mV 1 mV ± (0.5% + 1 d)
Temp. (℃) 0 to 65 ℃ 0.1 ℃ 0 to 50 ℃ : ±1 ℃
> 50 ℃ : ±2 ℃
Temp. (℉) 32 to 150 ℉ 0.1 ℉ 32 to 122 ℉ : ±2 ℉
> 122 ℉ : ±4 ℉

* pH accuracy are based on after calibration, meter only.
* Appearance and specifications listed in this brochure are subject to change without notice.

Selling Unit EACH
Model No PH207HA
Brand Lutron brand logo
Description pH Meter With Temperature
Width 72mm
Height 32mm
Length / Breadth / Depth 180mm
Weight 95.3g
Categories Test & Measurement Equipment
Digital Test Equipment
Analytical Meters
Data Sheet Datasheet PDF Thumbnail icon
