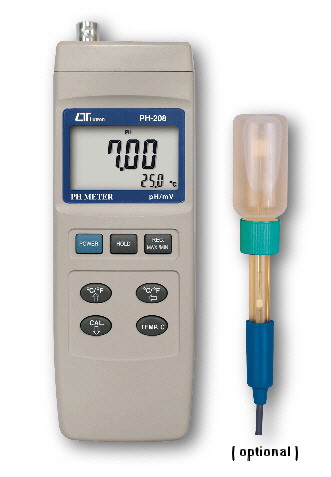

Lutron PH208

pH Meter pH/mV, ATC, RS-232

Model : PH‑208

Professional pH / mV METER.
pH range : 0 to 14 pH x 0.01 pH.
mV range : ±1999 mV.
The instrument is with mV function for ORP measurement & the optional ORP probe.
Wide auto temperature compensation arrangement.
Auto / manual temperature compensation adjustable by push button on front panel.
Optional temp. probe / temperature compensation probe is available for accurate results.
Microprocessor circuit assures high accuracy and reliable performance.
Large LCD, dual function display.
Records Maximum and Minimum readings with recall.
Data hold.
Auto shut off saves battery life.
Powered by 006P DC 9V battery.
RS232 computer interface.
pH calibration is available by push button on front panel.
Built‑in 3 points pH calibration ensures best accuracy.
Using the durable, long‑lasting components and a strong light weight ABS‑plastic housing case.
High input impedance avoids measuring error.
Wide applications : water conditioning, aquariums, beverage, food processing, photography, schools & colleges.

Circuit	Custom one‑chip of microprocessor LSI circuit.	pH Electrode	Any pH electrode with BNC connector.
Display	13 mm x 32 mm dual function LCD display, 15 mm (0.6") digit size.	Operating Temperature	0 to 50 ℃ (32 ℉ to 122 ℉).
Measurement	pH mV	Operating Humidity	Max. 80% RH.
Input Impedance	10¹² ohm.	Sampling Time	Approx. 0.8 second.
Temperature Compensation	Manual : 0 to 100 ℃, adjusted by push button on front panel. Automatic : with optional temp. probe (TP‑07) in the range of 0 to 65 ℃.	Power Supply	006P DC 9V battery (heavy duty type).
Calibration for pH Range	Built‑in PH 4, PH 7 & PH 10 calibration VR with three points calibration ensures the best integrity and accuracy.	Power Current	Approx. DC 7 mA.
Memory Recall	Records Maximum and Minimum readings with recall.	Weight	255 g / 0.56 LB.
Power off	Auto shut off saves battery life, or manual off by push button.	Size	180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inch).
Data Output	RS232 PC serial interface.	Standard Accessories	Instruction manual ................... 1 PC.

Measurement	Range	Resolution	Accuracy
pH	0 to 14 pH	0.01 pH	± (0.02 pH + 2 d)
mV	±1999 mV	1 mV	± (0.5% + 2 d)

* Appearance and specifications listed in this brochure are subject to change without notice.

Selling Unit	EACH
Model No	PH208
Brand
Description	pH Meter pH/mV, ATC, RS-232
Categories	Test & Measurement Equipment Digital Test Equipment Analytical Meters
Data Sheet
