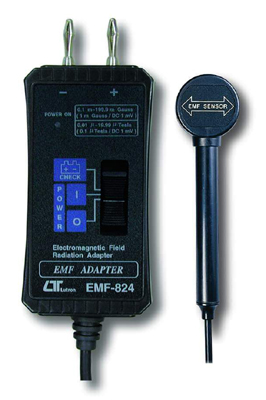

Lutron EMF824
EMF Adaptor - Electromagnetic Field
EMF ADAPTER
Electromagnetic Field Adapter
Model: EMF‑824
Features
- Combine the EMF adapter with a digital multimeter (set to DC 200 mV range) to be used as a precision EMF meter.
- The EMF adapter is designed to provide a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, home appliances and industrial devices.
- The EMF adapter is a cost‑effective, hand‑held instrument designed and calibrated to measure electromagnetic field radiation at different bandwidths down to 50 Hz / 60 Hz.
- Uses a separate probe for easy operation.
Applications
This EMF adapter is specifically designed to determine the magnitude of electromagnetic field radiation generated by power lines, computer’s monitor, TV sets, video machinery and many other similar devices.
Specifications
| Range | 20 micro Tesla, 200 milli Gauss. |
| Output | 1 milli Gauss (0.1 micro Tesla) per 1 DC mV. |
| Band Width | 30 Hz to 300 Hz. |
| Number of Axes | Single axis. |
| Sensor Probe | Separate probe. |
| Accuracy | ± (4% + 2 mV) at 50 Hz / 60 Hz. |
| Meter Input Impedance | 10 Mega ohm. |
| Battery | DC 9V battery (006P, 6F22). |
| Power Current | Approx. DC 2.4 mA. |
| Operating Temperature | 0°C to 50°C (32°F to 122°F). |
| Operating Humidity | Less than 80% RH. |
| Weight | 206 g / 0.46 lb (including battery). |
| Dimension | Main instrument: 100 × 50 × 25 mm (3.9 × 2.0 × 1.0 inch) Probe: 175 × 45 × 22 mm (6.9 × 1.8 × 0.9 inch) |
| Accessories Included | Operation manual — 1 PC. |
Caution of Electromagnetic Field Exposure
| Claims by some scientists that long‑term exposure to electromagnetic field may be the cause of childhood leukemia & other forms of cancer. |
| Complete answers to any of these and related questions are not currently available. At the present time the most common practice is to avoid excess exposure over a long period of time. |
| “Prudent Avoidance” as stated by the Environmental Protection Agency (EPA), U.S.A. is recommended. |
| Selling Unit | EACH |
|---|---|
| Model No | EMF824 |
| Brand |
|
| Description | EMF Adaptor - Electromagnetic Field |
| Categories |
Test & Measurement Equipment Digital Test Equipment Electronic Test Meters |
| Data Sheet |
|
