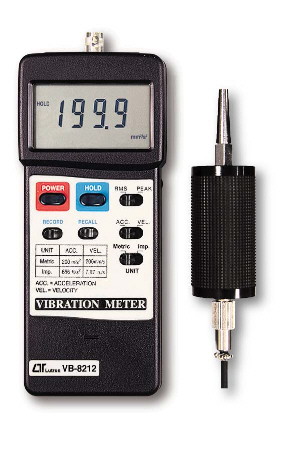

Lutron VB8212
Vibration Meter
VIBRATION METER
Model: VB‑8212
1. Features
- Applications for industrial vibration monitoring.
- All industrial machinery vibrates. The level of vibration is useful guide to machine condition.
- Poor balance, misalignment & looseness of the structure will cause the vibration level increase, it is a sure sign that maintenance is needed.
- Frequency range 10 Hz ~ 1 KHz, sensitivity relative meet ISO 2954.
- Professional vibration meter supply with vibration sensor & magnetic base, full set.
- Velocity measuring range 200 mm/s, 7.87 inch/s.
- Acceleration measuring range 200 m/s2, 656 ft/s2.
- Metric & Imperial display unit.
- Wide frequency range.
- Data hold button to freeze the desired reading.
- Memory function to record maximum and minimum reading with recall.
- Separate vibration probe, easy operation.
- RS‑232 computer interface.
- Optional data acquisition software for data record & dialogue.
- Super large LCD display.
- Microcomputer circuit, high performance.
- Auto shut off saves battery life.
- Built‑in low battery indicator.
- Heavy duty & compact housing case.
- Carry duty carrying case.
- Complete set with the hard carrying case.
2. Specifications
| Display | 51 mm x 34 mm super large LCD display. 15 mm (0.6") digit size. |
| Measurement | Velocity, Acceleration RMS value, Peak value, Data hold, Max. & Min. value. |
| Range | Velocity : 7.87 inch/s : 0.2 to 7.87 inch/s 200 mm/s : 0.5 to 199.9 mm/s Acceleration : 0.5 to 199.9 m/s2 656 ft/s2 : 0.2 to 656 ft/s2 |
| Resolution | Velocity : 0.01 mm/s, 0.001 inch/s Acceleration : 0.1 m/s2, 0.01 ft/s2 |
| Frequency Range | 10 Hz to 1 KHz. * Sensitivity relative during the frequency range meet ISO 2954. |
| Accuracy | ± (5% + 2 d) reading @ 160 Hz, 80 Hz. @ 23 ± 5°C. |
| Calibration Point | Velocity : 50 mm/s (160 Hz) Acceleration : 50 m/s2 (160 Hz) |
| Circuit | Exclusive microcomputer circuit. |
| Data hold | Freeze the desired reading. |
| Peak measurement | To measure the peak value. |
| Memory | Maximum & Minimum value. |
| Power off | Auto shut off, saves battery life, or manual off by push button. |
| Sampling time | Approx. 1 second. |
| Data output | RS232 serial output, isolate. |
| Operating Temperature | 0 to 50°C (32 to 122°F). |
| Operating Humidity | Less than 80% RH. |
| Power supply | Alkaline or heavy duty type, DC 9V battery, 006P, MN1604 (PP3) or equivalent. |
| Power consumption | Approx. DC 6 mA. |
| Weight | Meter : 230 g / 0.50 LB Sensor with magnetic base : 155 g / 0.35 LB |
| Dimension | Meter : 185 x 72 x 32 mm (7.3 x 2.8 x 1.3 inch). Vibration sensor probe : Round 19 mm Dia. x 29 mm. |
| Accessories included | Instruction manual ............ 1 PC. Shield with clip .............. 1 PC. Vibration sensor .............. 1 PC. Sensing head .................. 1 PC. Magnetic base ................. 1 PC. Carrying Case ................. 1 PC. |
| Optional accessories | * Software (Windows version), data record & data acquisition, SW‑U801‑WIN * RS232 cable ................. UPCB‑01 |
* Appearance and specifications listed in this brochure are subject to change without notice.
| Selling Unit | EACH |
|---|---|
| Model No | VB8212 |
| Brand |
|
| Description | Vibration Meter |
| Width | 72mm |
| Height | 32mm |
| Length / Breadth / Depth | 180mm |
| Weight | 113g |
| Categories |
Test & Measurement Equipment Digital Test Equipment Electronic Test Meters |
